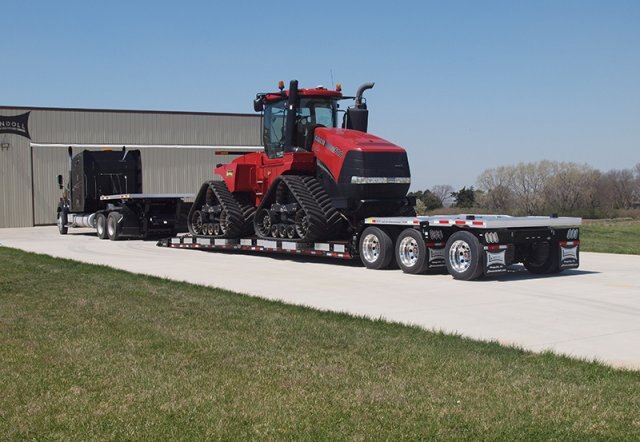

The new 845E-AG Hauloll is designed to move today and tomorrow’s heaviest equipment. The 845E-HD-AG’s 45-ton capacity is matched to handle even the heaviest of the field-ready tractors and choppers in production today. The heavy haul requirement was carefully considered during the product development of the 845E-AG resulting in a trailer that comes standard with a Heavy Duty Gooseneck with provisions for a 36” Flip extension.
BUILT FOR THE HEAVY HAUL – AG, CONSTRUCTION, FORKLIFTS AND MORE
The 845E-HD-AG capacity comes in at 45 tons (90,000 lbs within 16’ and 80,000 lbs. within 12’) and a 19-1/4” loaded deck height keeps the center of gravity lower than most detachables. This trailer is built with Heavy Haul aluminum pullouts that are 30% stronger than the 835 pullouts and extend out to 13’ wide on 6” increments. Pulled out to the proper width and planked, these overwidths are designed to handle big wheel loader and some track equipment. Enlarged lift cylinders with a 150,000 lb. lift capacity, and gooseneck flip brackets for 36” flip over extension round out the heavy haul features on the 845 HD AG. The heavy haul load carrier allows the driver to match the needed ground clearance in one of the 7-ride height positions to choose from.
RAISING THE BAR ON GVWR

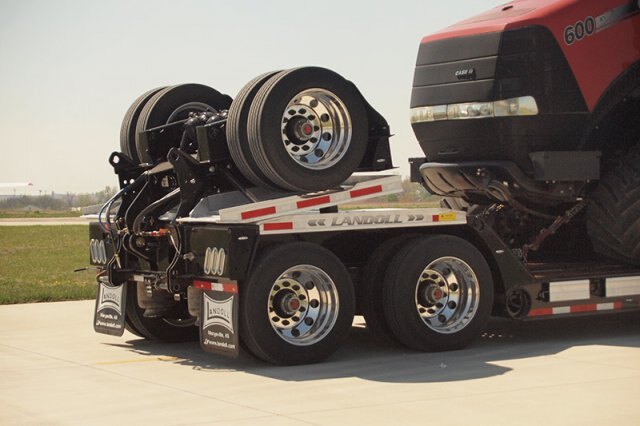

Most 2 axle base trailers run out of GVWR to legally permit many heavier loads. The Landoll 845E HD AG tops out at 116,500 lbs. / 51,076 KG GVWR allowing for a full 90,000 lbs. of payload. The trailer equipped with the gooseneck extension and the third flip axle will scale even the toughest AG tractors. Now as always each state DOT will control the exact weighs you can transport on their individual highways.
REGEN-HOSS HYDRAULICS
Not only is the 845E-HD-AG built for heavy haul Ag, it comes standard with REGEN-HOSS hydraulics, the new hydraulic -regeneration valve system with Rexroth valve rated at 2500 PSI and 20GPM. That is a significant increase in hydraulic speed, decreasing the amount of time it takes to load equipment.
Features
STANDARD EQUIPMENT
Capacity: 45 Tons
Dual Deck Rating: 90,000 lbs. in 16 Foot
80,000 lbs. in 12 Foot
Estimated Base Weight: 21,000 lbs. (845-48HD) +/- 3%
Main Frame: Fabricated 13" Beam, 100,000 PSI Yield Flanges
Crossmembers: 6"X3" Rec. Tube on 18" Centers
Tires: 255/70R 22.5 LRH Double Coin
Rims: 22.5 X 8.25 Steel
Wheels: Hub Pilot / Steel Outboard Brake Drums
Axles: 25,000 lbs. Capacity
Suspension: Neway Air Ride 25,000 lb. Capacity
Brakes: 16.5 X 7 Full Air/Spring Brakes on Both Axles, ABS 4S2M
Oil Seal Hubs: Internal Mated Assembly
Pin Setting: 15 Inches
Swing Clearance: 84 Inches
Loaded Ground Clearance: 7 Inches
Loaded Deck Height: 19-1/4 Inches
Width: 102 inches
Decking: 1 1/2" Apitong, Full Width

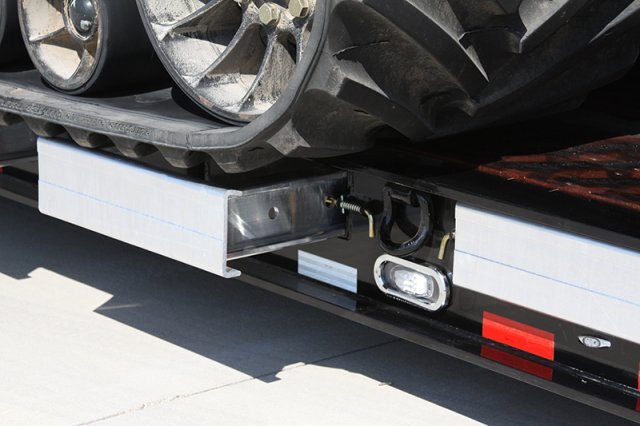

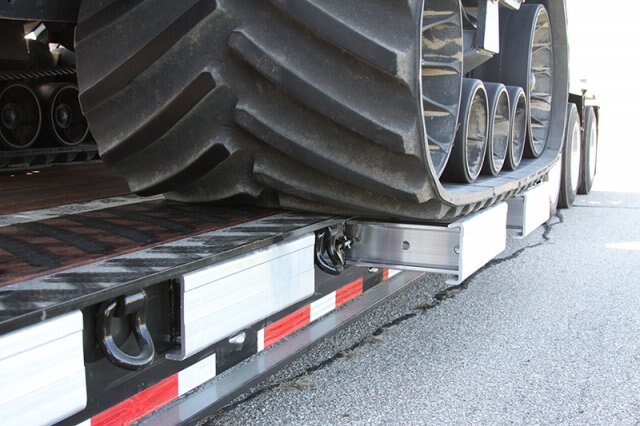

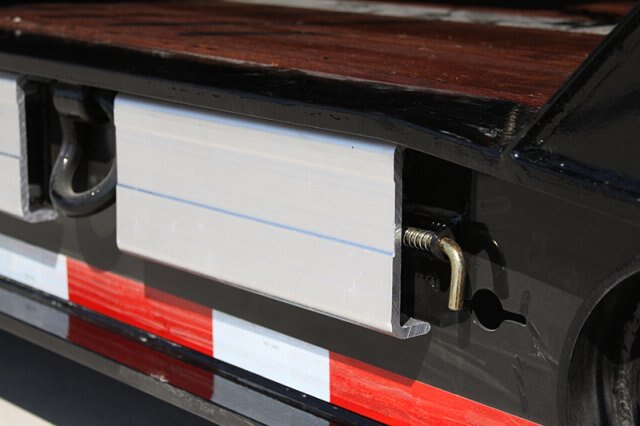

Side Extension: 27" Heavy Haul Aluminum Pullouts (Lower Deck)

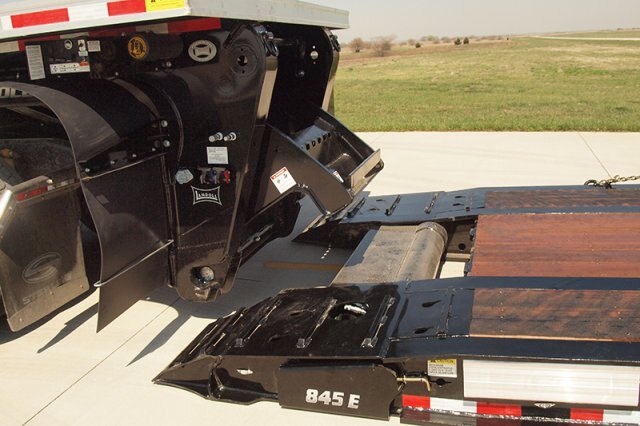

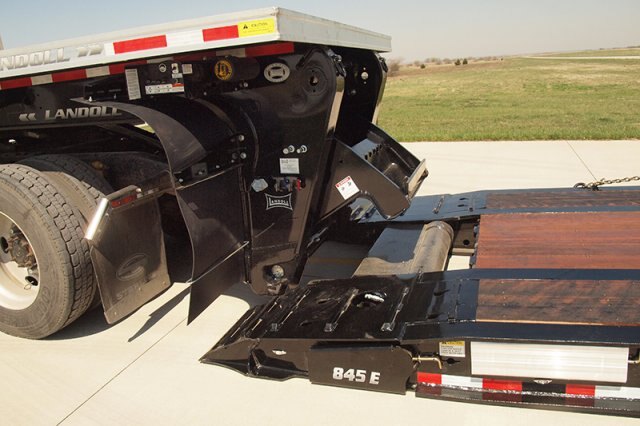

Gooseneck: 12' Heavy Duty (Includes Flip Brackets)
Air/Electrical: 7 Way Receptacle
Hydraulic Hook Up: Quick Couplers 2500 PSI/20 GPM
Gooseneck Tie Downs: D-Rings: 2ea on Main Frame Rear

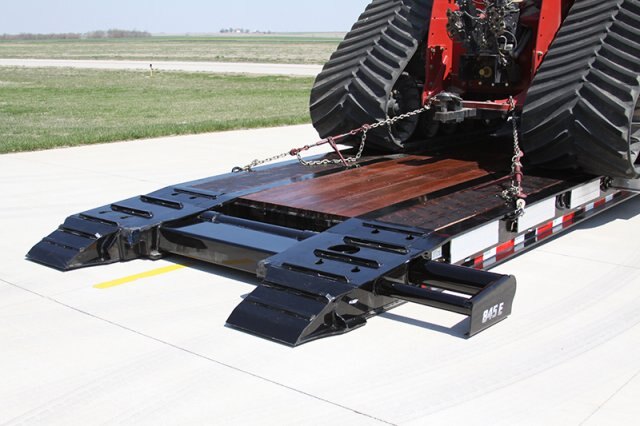

Lower Deck Tie Downs: Side Mounted Angled D-rings on 36" Centers
Rear Trunnion Tie Downs: D-Rings: 2ea at Base Flush Mounted on Top of Inner Beams; 2ea Web Mounted on Top; 2ea Rear Flush Mounted on Top of Inner Beams; 2ea Top of Slope (Outer Web)
Wiring Harness: Grote "Ultra-Blue Seal"-7 year warranty

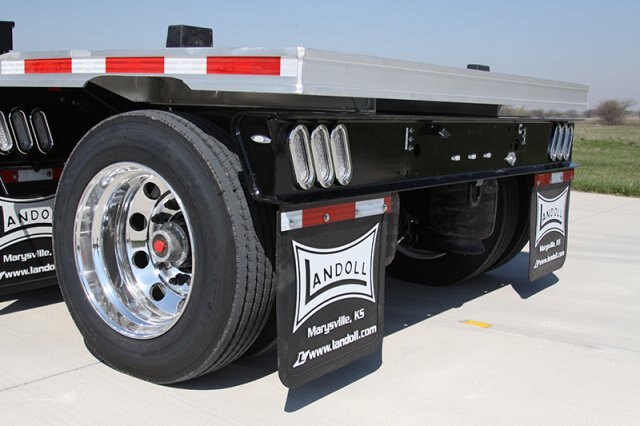

Lights: Grote "SuperNova" LED-10 year warranty
Finish: Steel Grit Shot Blast to Bright Metal
Powder Coat Color: White/Black/Yellow/Blue/Red/Green/Dark Gary/Sapphire Blue
Decals: Hi-Visibility Reflective Package
Tool Box: None Standard

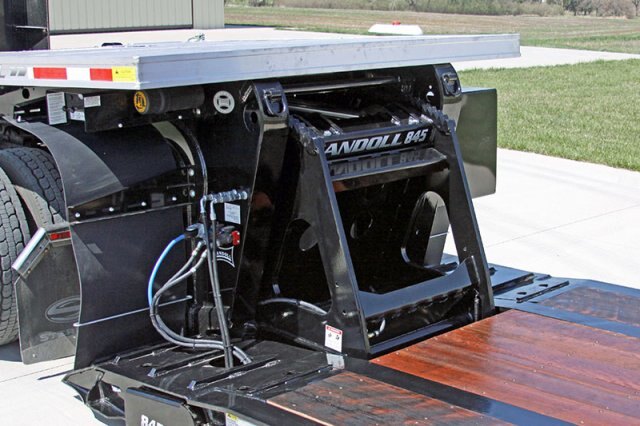

Cylinders: 2 - 7" X 32" Horizontal Mount 70,000 lb. Capacity Each
Accessories: 845HDAG 48' and 53' Frame Prepared w/Flip Bkts, Elec and Air for 3rd Axle Flip, includes Frame Prep in Rear Trunnion Bumper for Hyd Flip option. 845E-53HD AG S60 has no provision for a Flip Axle. All 845 models have Centralized Grease System.
