The Industry’s Best All-Around Earthmoving System

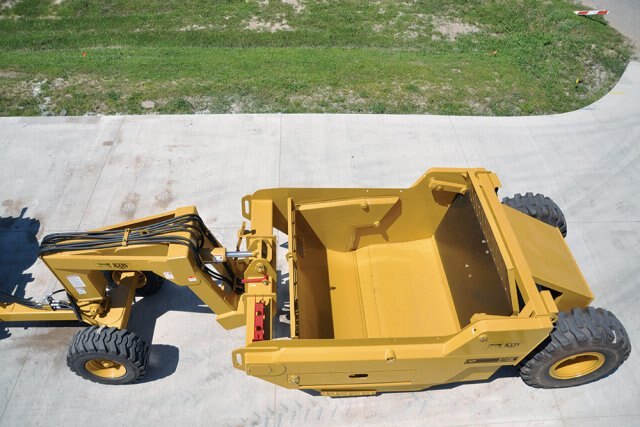

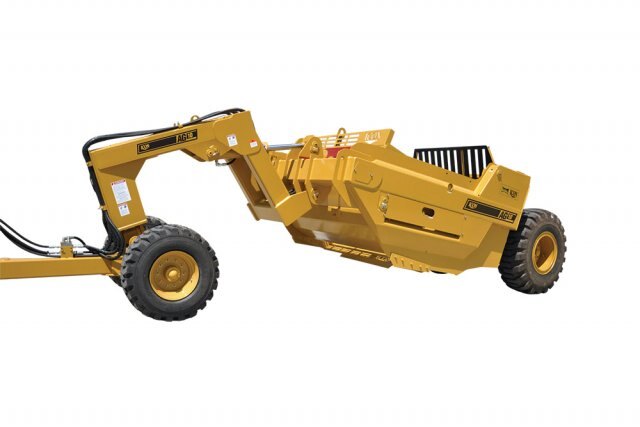

The AG11 & AG13 from ICON are engineered around years of innovations and features that have been tested in the demanding industrial sector. These features are now available in an earthmoving system that is ideally suited to your farm operation.

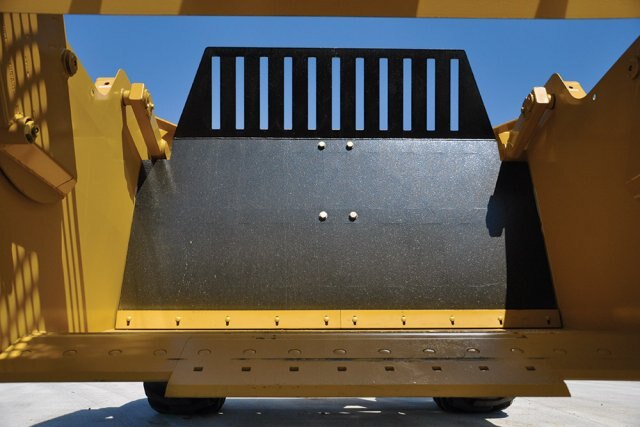

The patented swing wall ensures smooth, rapid and clean ejection cycles. The front gate and eject wall are finished in dirt resisting epoxy to maintain efficiency in the stickiest of soils. The double wall frame sidewall design increases overall strength and rigidity. Hydraulic operation of the gate and wall is controlled by a synchro-sequencing valve.

Equipped with an exclusively designed, weight transferring front dolly, the AG11 and AG13’s carrying capacity is partially transferred to the tractor hitch to assist with traction when loading. Able to cut a full 8 foot width with each pass, the AG11 can quickly handle 11 yards of material, while the AG13 handles 13 yards.

Because Dirt is Never In the Right Place

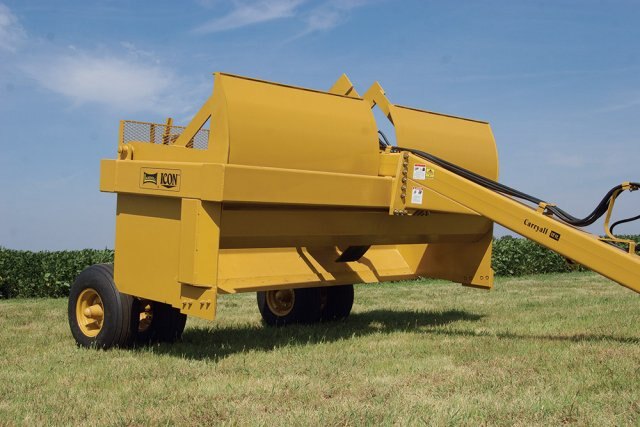

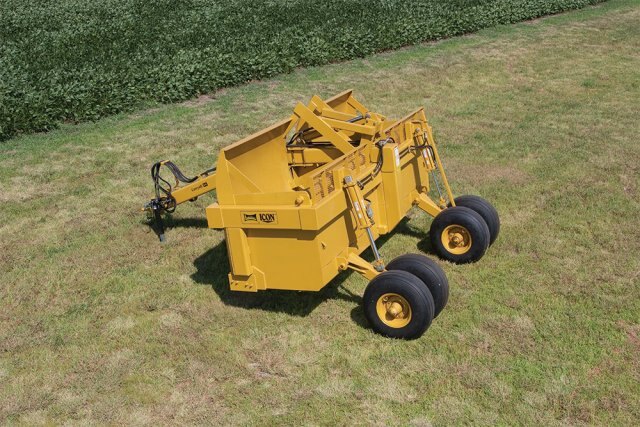

When it comes to moving dirt from one area to another, nothing beats the performance of the 1205 Carry-All. Equipped with a 12 foot cutting blade, the 1205 can quickly load up to 5.5 yards of material at heaped capacity and hold it for transport with the aid of its front double clam-shell door.

Height adjustment up to 18” provides precise depth control, as well as plenty of clearance when dumping loads or transporting a load over uneven terrain. The 1205 is a nice match for your average sized farm tractor with three hydraulic remotes. Whether you use it as a box scraper, grader or earthmover, the 1205 Cary-All was the built with the idea that dirt is never in the right place.

AG11 & AG13 Scraper

• Industrial Design Adapted to the Agricultural Market
• AG11: 11 Yard Capacity
• AG13: 13 Yard Capacity
• Patented Swing Wall Ensures Smooth Ejection Cycles
• Epoxy Coated Gate and Wall Frame to Resist Sticky Soils
• Double Wall Side Frames
• Extra Heavy-Duty Wheels, Hubs and Spindles
• Synchro-Sequencing Valve Gate and Wall
• Weight Transfer Dolly Wheel
• Industrial Rated Hoses and Cylinders
• 22” Ground Clearance
• 500/70R x 24 Front Tires
• 20.5 x 25 Rear Tires
• 10 Bolt Hubs
• Pintle Swivel Hitch
• Yellow Industrial Paint
• Safety Warning Lights

1205 Carry-All

• 5.5 Yard Capacity
• Double Clam-Shell Door
• Box Beam Frame Construction
• Hydraulic Tilt for Precise Grading
• Industrial Rated Hoses and Cylinders
• 18” Ground Clearance
• 12.5L x 15-12 Ply Tires
• 8 Bolt Hubs
• Single Lip Hitch
• Yellow Industrial Paint
• Safety Warning Lights
