L2024HD Heavy Duty 20,000 lb.

The model L2024HD (heavy-duty) is a full 20,000 lb. capacity industrial tag trailer with a 19' flat deck and 5' beavertail.  (26,000 GVW).  Standard features include a pierced main beam for a low deck height of 35".  Powder coat paint, ten combination stake pocket/chain gotchas are standard equipment along with large axles and tires to provide maximum working capacity.

STANDARD EQUIPMENT

• *Capacity: 20,000 lbs.
• Conc. Deck Rating: 20,000 lbs. in 10' Area
• Estimated Base Weight:  Consult Factory
• Main Frame: I-Beam
• Crossmembers: 4" Jr. I-Beams on 16" Centers 80,000# PSI
• Side Rail: 8" Deep Formed Steel Side Rails
• Jack: 12,000 lb. Quick Lift Parking Jack
• Tires: 235/80R 16 LRE
• Wheels: Dual Disc Wheels - 8-Hole
• Axles: 2 - 10,000 lbs. General Duty with Oil Sealed Hubs
• Suspension: Spring Suspension (3" Wide)
• Brakes: 12-1/4" x 4" Electric Brakes
• Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20"to 30" with Safety Chains
• Headboard: 6" Headboard
• Decking: 2" Nominal Fir
• Loaded Deck Height: 35"
• Width: 102" Wide
• Length: 24' Deck (19' Flat Deck + 5' Beavertail)

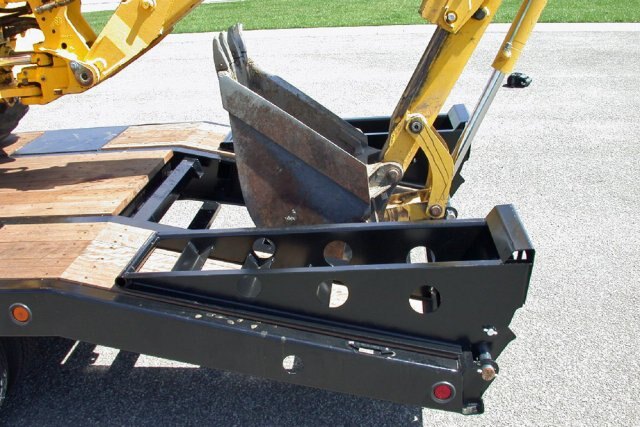

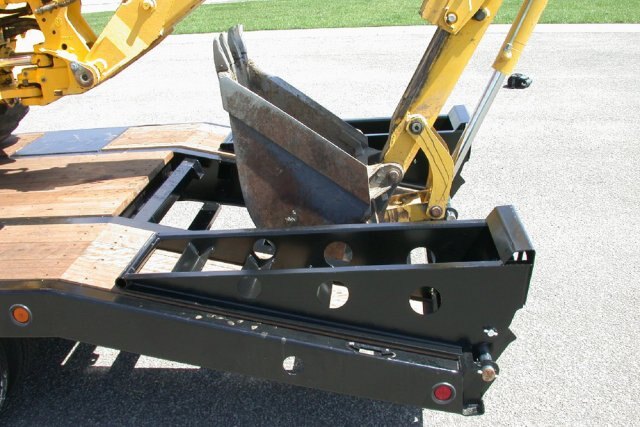

• Beavertail: 5' Self Cleaning Beavertail

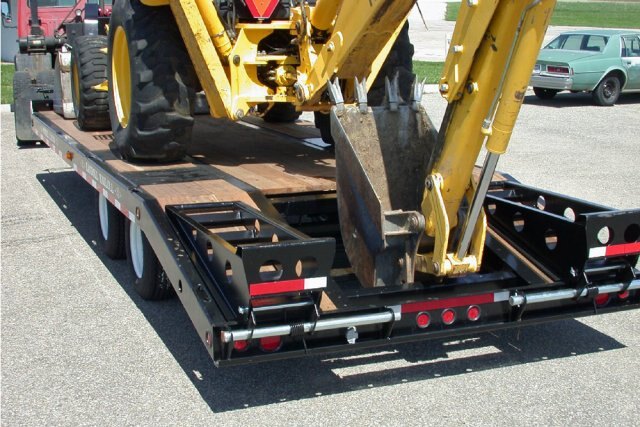

• Ramps: 5' Self Cleaning Adjustable Spring Assisted Flip-Over Ramps
• Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. Approved
• Tie Downs: 10 Double Key Hole Chain Locks - Gotchas / Stake Pockets
• Finish: High Quality Powder Paint
• Color: Yellow
• Decals: Hi-Visibility Reflective Package
