Full 14,000 lb. Capacity Tilt Tag-Optional Gooseneck

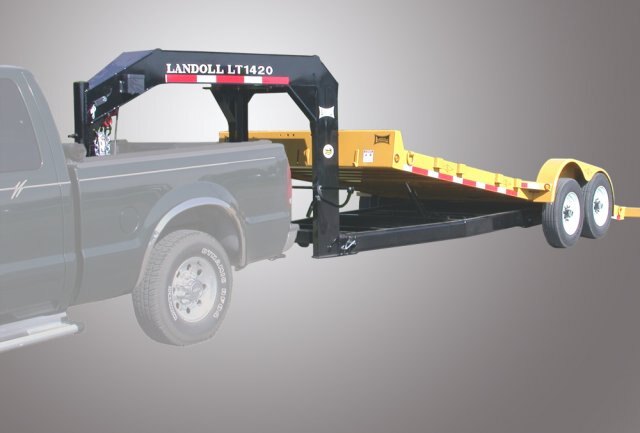

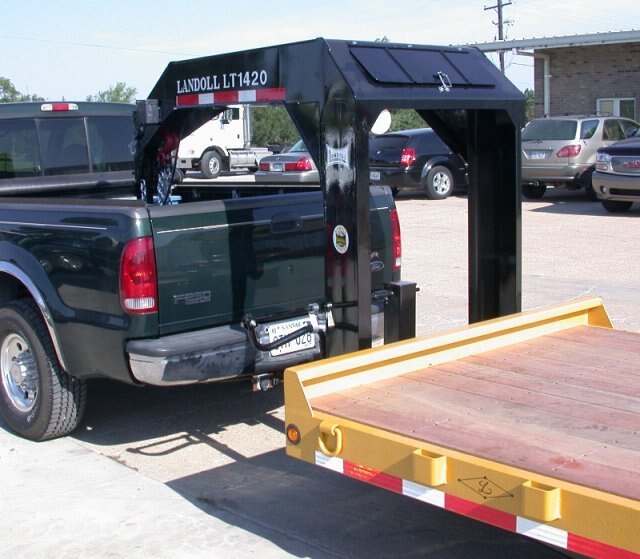

The LT1420 tag offers operators a full 14,000 lb. payload capacity. The trailer features two 8,000 lb. axles with 215/75R 17.5 tires supporting a heavy-duty frame for maximum strength and payload. The tilt deck ground loads at a low load angle of just 10 degrees. The trailer GVWR is 18,200 lbs.  A popular option is the heavy duty gooseneck with 2-5/16" ball hitch and built in tool box.

STANDARD EQUIPMENT

• *Load Capacity:  14,000 lbs.
• G.V.W.R.  18,200 lbs.
• Base Weight:  4,200 lbs.
• Main Frame:  6.5" Fabricated Channel
• Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 12" Centers
• Jack:  12,000 lb. Top Crank - Bull Dog
• Tires:  215/75R 17.5 LRH
• Wheels:  Steel Wheels - 8-Bolt Pattern
• Axles:  2 - 8,000 lb. EZ Lubes
• Suspension  Torflex Axles
• Brakes:  12-1/4" x 3-3/8" Electric Brakes (Both Axles)

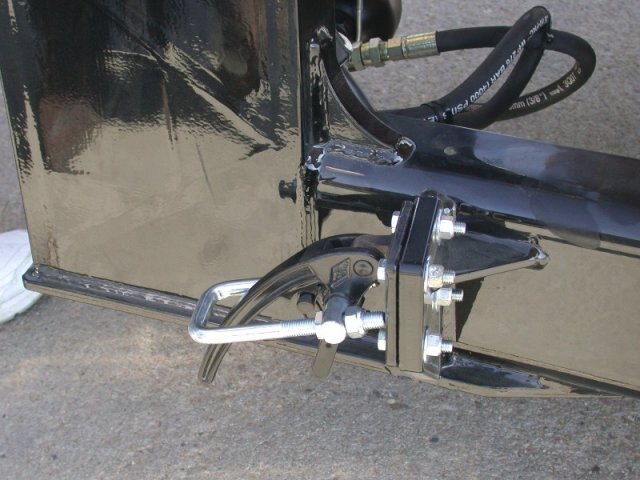

• Hitch:  3" Pintle Eye, 12" Vertical Height Adjustment, 15,000 lb. Capacity
• Tool Box  Under Deck
• Decking:  2" CA-B Copper Azole Treated Pine
• Deck Height (Loaded):  22" Loaded
• Width:  82-1/2" Inside Fenders - 102" O.A.
• Length:  20' Tilt Deck
• Load Angle:  12.1°

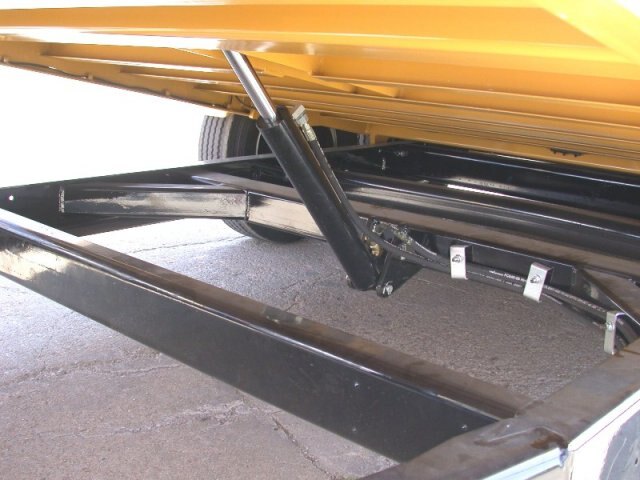

• Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder with Tilt Control System
• Approach:  Full Width Landoll Traction Plate
• Lock Down:  Positive Over Center
• Lights:  Sealed Beam - per I.C.C. and Federal Regulations
• Electrical:  7 Pole RV Electric Plug - Wiring in Conduit
• Fenders:  14 Gauge Steel Tread Plate Formed with Back (82-1/2" in Between)
• Running Boards:  16 Gauge - Cold Roll Formed with Anti-Skid Tape
• Tie Rings:  5/8" D-Rings (4)
• Stake Pockets:  4 per Side
• Safety Chains:  3/8" x 35" - G70 Chain
• Break-Away Kit:  with Gel Cel Chargeable Battery and Box
• Finish:  Your Choice: White, Black or Yellow Non-Fading, Scratch and Chip Resistant Powder Coat
• Decals:  Hi-Visibility Reflective Package
