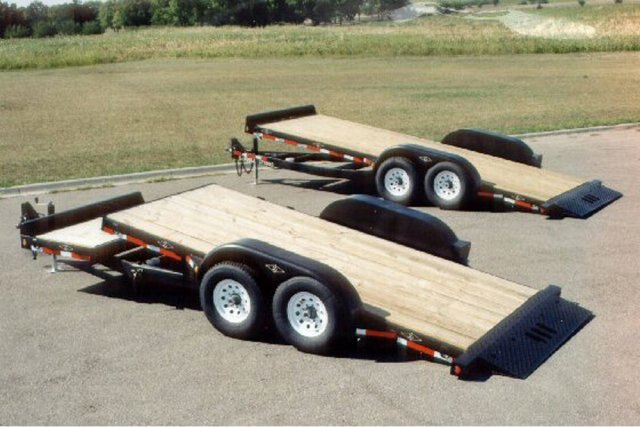

High Quality Tag Trailer Full 12,000 lb. Capacity

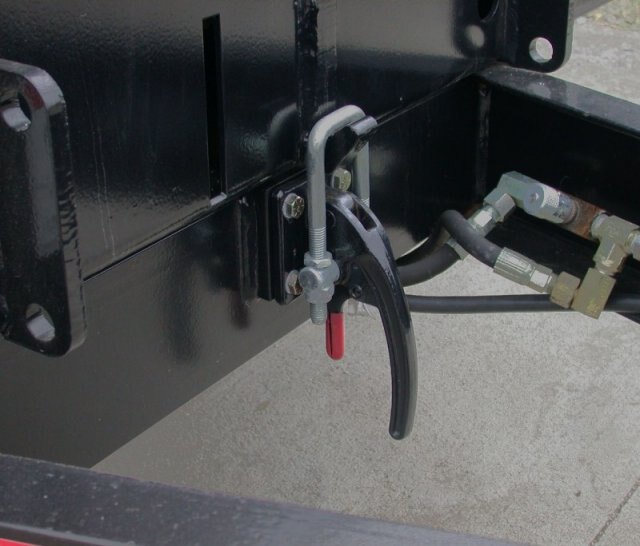

The LT1220 is a 20', 12,000 lb. capacity tilt tag trailer featuring a tilt control system for loading multiple pieces of equipment. The tilt control system, holds the deck in a tilted position during all loading operations.

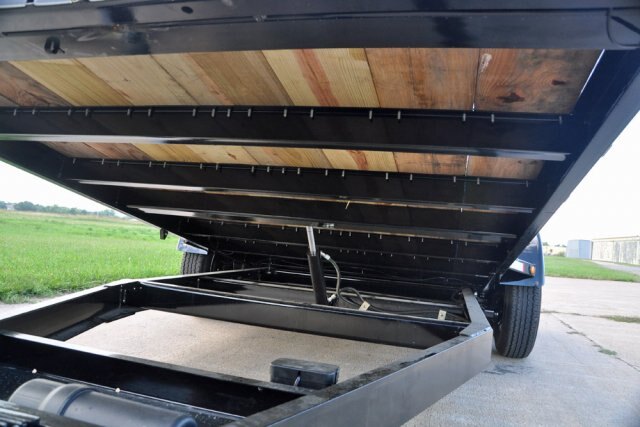

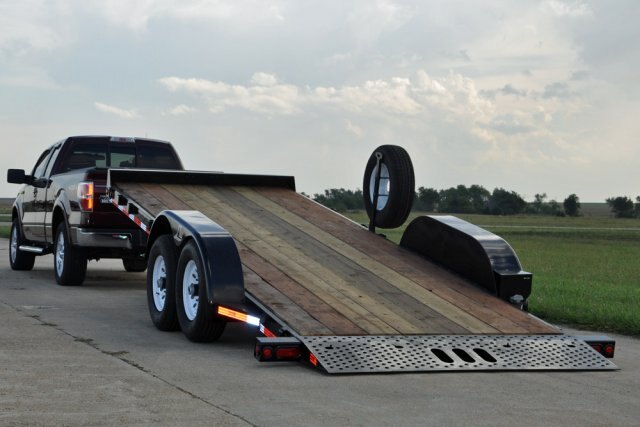

A cushion cylinder tilts the deck for easy loading and unloading, and a heavy duty bed lockdown secures the bed in transport position. The approach plate is exclusive machined Landoll traction plate with four keyhole tie downs.

High End Features

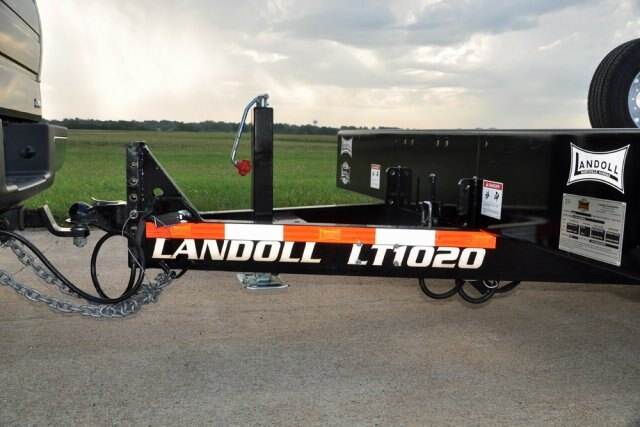

Standard features on Landoll tag trailers include heavy duty adjustable ball hitch, bid lockdown, 14 gauge molded fenders, sealed electrical wiring harness, 235 80R 16 LRE tires, and durable powder coat paint finish.

STANDARD EQUIPMENT

• Estimated Base Weight:  3,700 lbs.
• *Capacity 12,000 lbs.
• G.V.W.R. 15,700 lbs.
• Main Frame:  6" Channel
• Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
• Jack:  7,000 lb. Top Crank Bull Dog
• Tires:  235/80R 16LRE
• Wheels:  Steel Wheels - 16.5 x 6.75 - 8-Bolt
• Axles:  2 - 7,000 lbs. EZ Lubes
• Suspension:  Torflex Axles
• Brakes:  12" x 2" Electric Brakes (Both Axles)
• Hitch:  Your Choice: 2-5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment -- 12,000 lb. Capacity
• Tool Box:  Under Deck
• Decking:  2" CA-B Copper Azole Treated Pine
• Deck Height (Loaded):  22"
• Width  80" Inside Fenders - 102" O.A.
• Length:  20' Tilt Deck
• Load Angle:  11.4°
• Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder with Tilt Control System
• Approach:  Full Width Landoll Traction Plate
• Lock Down:  Positive Over Center
• Lights:  Sealed Beam - per I.C.C. and Federal Regulations
• Electrical:  7 Pole RV Electric Plug - Wiring in Conduit
• Fenders:  14 Gauge - Cold Rolled Formed with Back
• Running Boards:  16 Gauge - Cold Roll Formed with Anti-Skid Tape
• Tie Rings:  5/8" D-Rings (4)
• Stake Pockets:  4 per Side
• Safety Chain:  3/8" x 35" - G70 Chain with GelCel Chargeable Battery and Box
• Finish:  Your Choice: White, Black or Yellow Non-Fading, Scratch and Chip Resistant "Powder Coat" Paint
• Decals:  Hi-Visibility Reflective Package
