12,000 Tilt Tag with 4' Stationary Deck

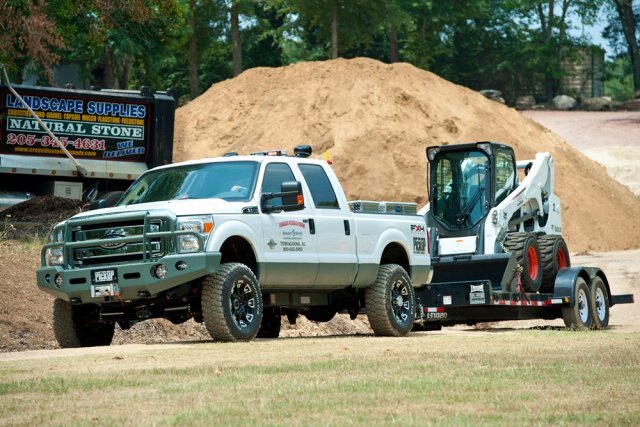

The Model LT1216+4 trailer is as 12,000 lb. capacity tilting tag trailer designed to haul light construction and landscaping equipment. The LT 1216+4 features a 16' tilt deck plus a 4' stationary deck for attachments, pallets, or supplies. A cushion cylinder tilts the deck for easy loading and unloading, and a heavy duty bed lockdown secures the bed in transport position. The approach plate is exclusive machined Landoll traction plate with four keyhole tie downs.

STANDARD EQUIPMENT

• *Load Capacity:  12,000 lbs.
• G.V.W.R.  15,700 lbs.
• Estimated Base Weight:  3,700 lbs.
• Main Frame:  6" Channel
• Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
• Jacks:  7,000 lb. Top Crank Bull Dog
• Tires:  235/80R 16LRE
• Wheels:  Steel Wheels - 16.5x6.75 - 8-Bolt
• Axles:  2 - 7,000 lb. EZ Lubes

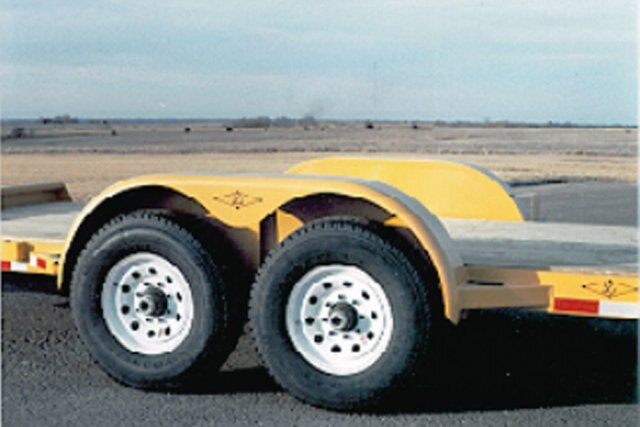

• Suspension:  Torflex Axles
• Brakes:  12" x 2" Electric Brakes (Both Axles)

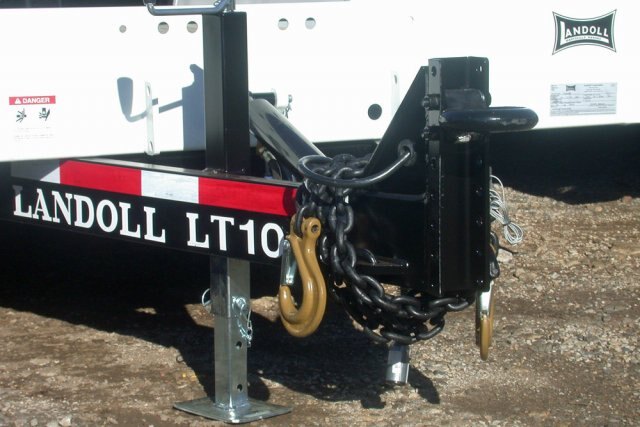

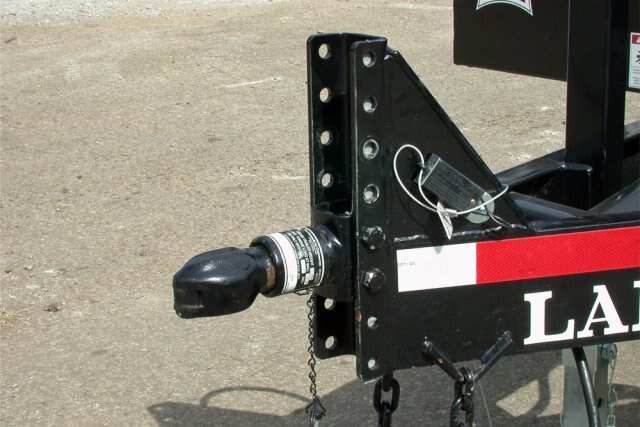

• Hitch:  Your Choice: 2-5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment - 12,000 lb. Capacity
• Tool Box:  Under Deck
• Decking:  2" CA-B Copper Azole Treated Pine
• Deck Height (Loaded):  22"
• Width:  80" Inside Fenders - 102" O.A.
• Length:  16' Tilt Deck + 4' Stationary
• Load Angle:  11.4°

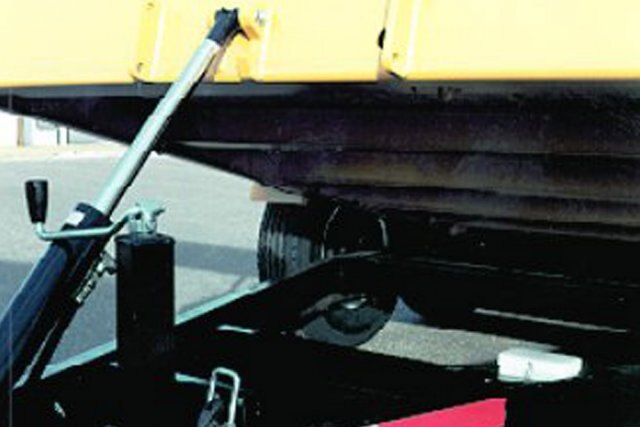

• Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder

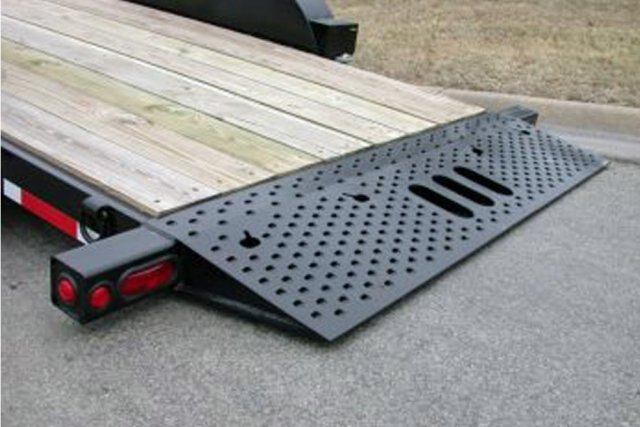

• Approach:  Full Width Landoll Traction Plate

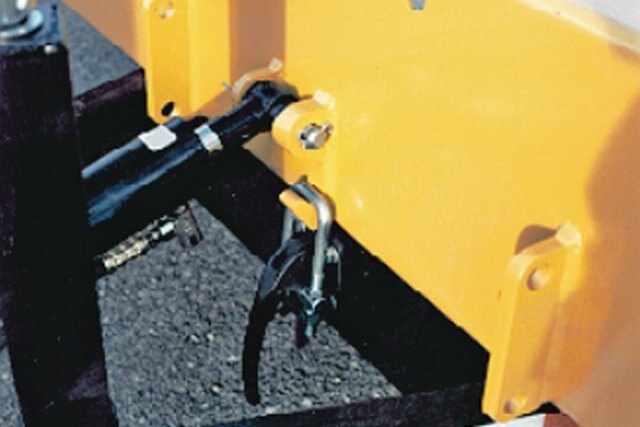

• Lock Down:  Positive Over Center
• Lights:  Sealed Beam - per I.C.C. and Federal Regulations
• Electrical:  7-Pole RV Electric Plug - Wiring in Conduit

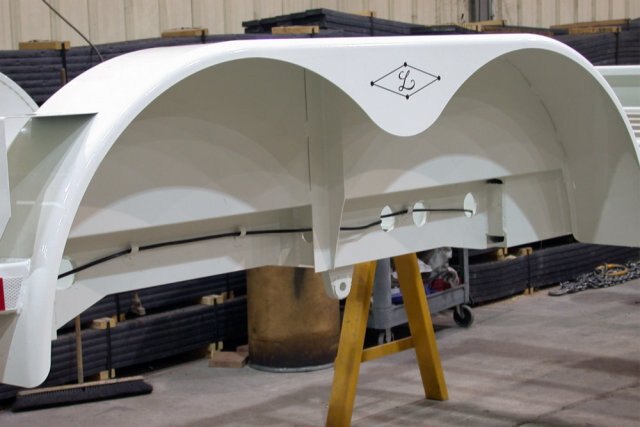

• Fenders:  14 Gauge - Cold Rolled Formed with Back
• Running Boards:  16 Gauge - Cold Roll Formed with Anti-Skid Tape
• Tie Rings:  5/8" D-Rings (6)
• Stake Pockets:  4 per Side
• Safety Chains:  3/8" x 35" G70 Chain with GelCel Chargeable Battery and Box
• Finish:  Your Choice: White, Black or Yellow Non-Fading, Scratch & Chip Resistant Powder Coat Paint
• Decals:  Hi-Visibility Reflective Package
