Full 10,000 lb. 20' Tilt Tag

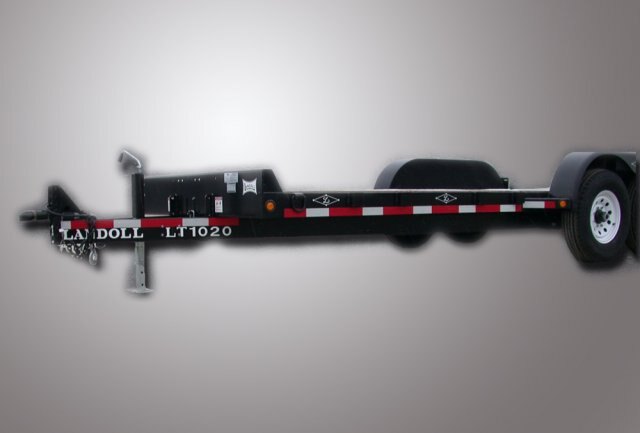

The LT1020 is a 20', 10,000 lb. capacity tilt tag trailer featuring a tilt control system for loading multiple pieces of equipment. The tilt control system, holds the deck in a tilted position during all loading operations. Designed for hauling light construction and landscaping equipment this trailer is ideal for rental companies.

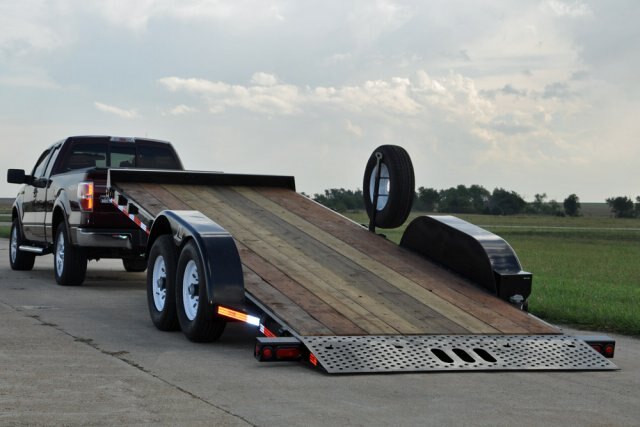

A cushion cylinder tilts the deck for easy loading and unloading, and a heavy duty bed lockdown secures the bed in transport position. The approach plate is exclusive machined Landoll traction plate with four keyhole tie downs.  Many options such as additional crossmembers and spare tire carrier are available.

STANDARD EQUIPMENT

• Estimated Base Weight:  3,150 lbs.
• *Capacity:  10,000 lbs.
• G.V.W.R.  13,150 lbs.
• Main Frame:  6" Channel
• Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
• Jack:  7,000 lb. Top Crank Bull Dog
• Tires:  235/80R 16LRE
• Wheels:  Steel Wheels - 8-Bolt Pattern
• Axles:  2 - 6,000 lbs. EZ Lubes
• Suspension:  Torflex Axles
• Brakes:  12" x 2" Electric Brakes (Both Axles)

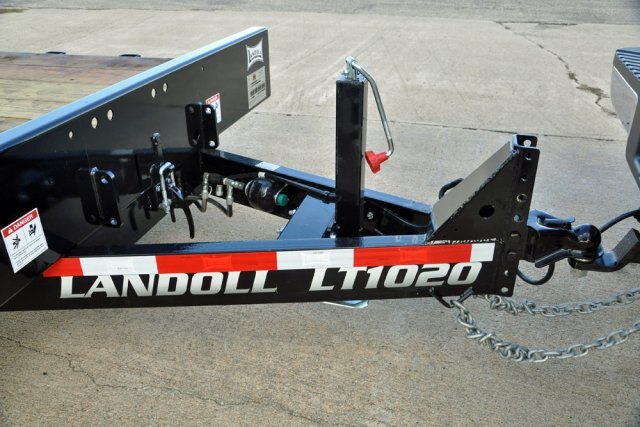

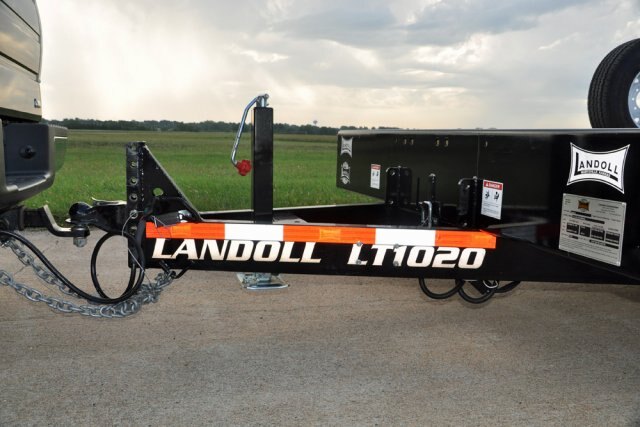

• Hitch:  Your Choice: 2-5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment -- 12,000 Capacity
• Tool Box:  Under Deck
• Decking:  2" CA-B Copper Azole Treated Pine
• Deck Height (Loaded):  22" Loaded
• Width:  80" Inside Fenders - 102" O.A.

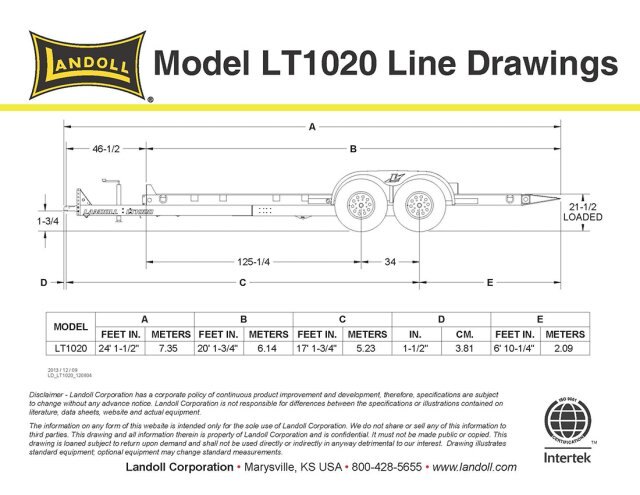

• Length:  20' Tilt Deck
• Load Angle:  11.4°

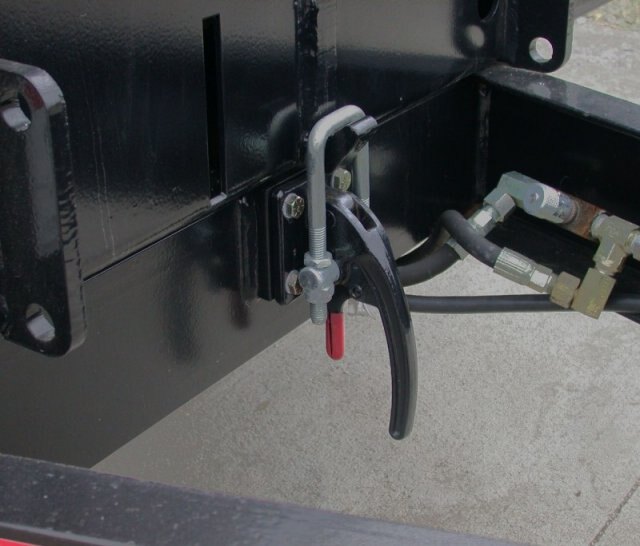

• Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder with Tilt Control System
• Approach:  Full Width Landoll Traction Plate
• Lock Down:  Positive over Center
• Electrical:  7 Pole RV Electric Plug - Wiring in Conduit
• Lights:  Sealed Beam - per I.C.C. & Federal Regulations
• Fenders:  14 Gauge Cold Rolled with Back
• Running Boards:  16 Gauge - Cold Rolled Formed with Anti-Skid Tape
• Tie Rings:  5/8" D-Rings (4)
• Stake Pockets:  4 per Side
• Safety Chain:  3/8'' x 35" - G70 Chain with GelCel Chargeable Battery and Box
• Finish:  Your Choice: White, Black or Yellow Non-Fading Scratch & Chip Resistant "Powder Coat" Paint
• Decals:  Hi-Visibility Reflective Package
