Tilt Deck Tag Full 10,000 lb. Capacity Plus Stationary Deck

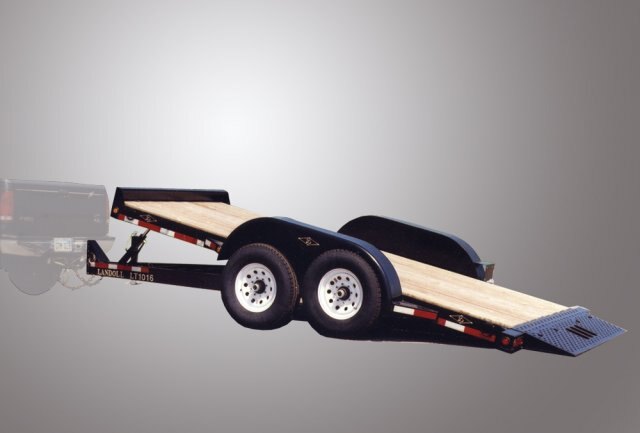

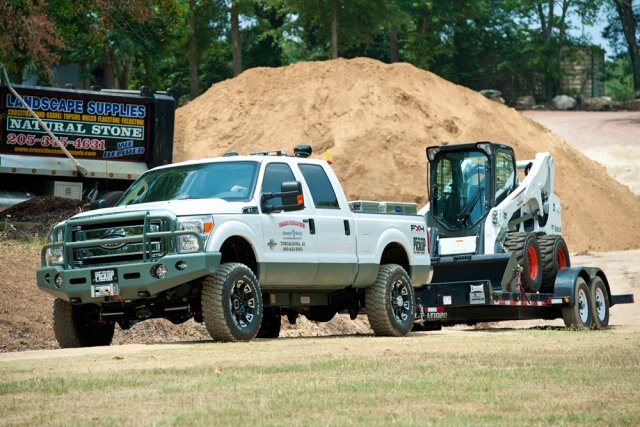

The LT1016+4 is a 10,000 lb. capacity, 20' tilt trailer featuring a 16' tilt deck plus a 4' stationary deck for attachments, pallets, or supplies. A cushion cylinder tilts the deck for easy loading and unloading.  A heavy duty bed lockdown secures the bed in transport position. The LT1016+4 is designed to haul light construction and landscaping equipment. Numerous options such as a tilt control system and LED lights are available to fit the trailer to your particular needs.

STANDARD EQUIPMENT

• *Load Capacity:  10,000 lbs.
• G.V.W.R.  13,500 lbs.
• Estimated Base Weight:  3,500 lbs.
• Main Frame:  6" Channel
• Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
• Jack:  7,000 lb. Top Crank Bull Dog
• Tires:  235/80R 16LRE
• Wheels:  Steel Wheels - 8-Bolt Pattern
• Axles:  2 - 6,000 lbs. EZ Lubes
• Suspension:  Torflex Axles
• Brakes:  12" x 2" Electric Brakes (Both Axles)

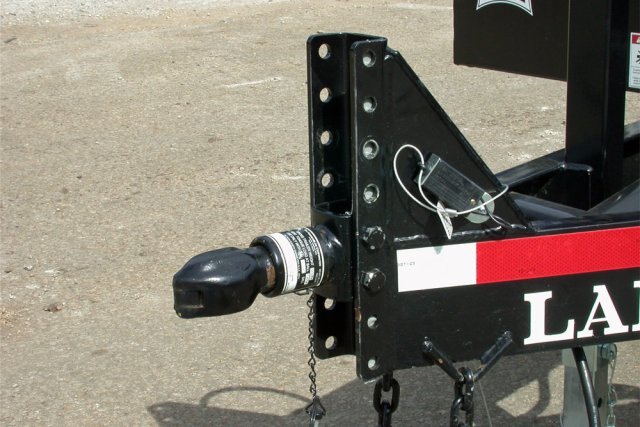

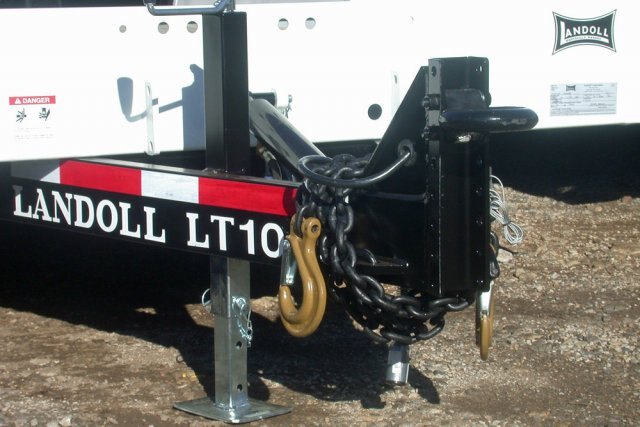

• Hitch:  Your Choice: 2-5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment -- 12,000 Capacity
• Toolbox:  Under Deck
• Decking:  2" CA-B Copper Azole Treated Pine
• Deck Height (Loaded)  22" Loaded
• Width:  80" Inside Fenders - 102" O.A.

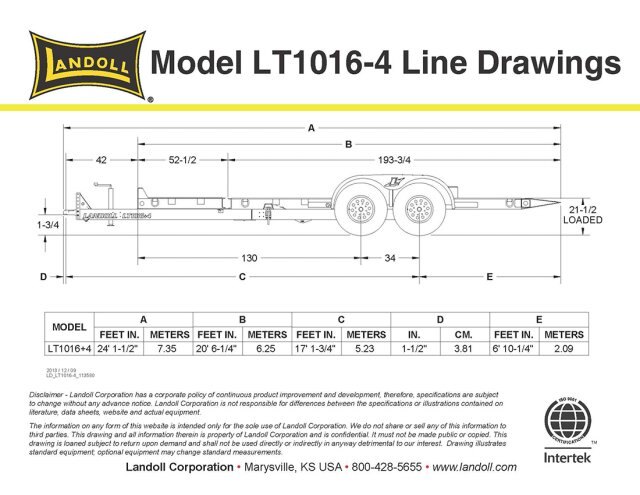

• Length:  16' Tilt Deck + 4' Stationary
• Load Angle:  11.4°

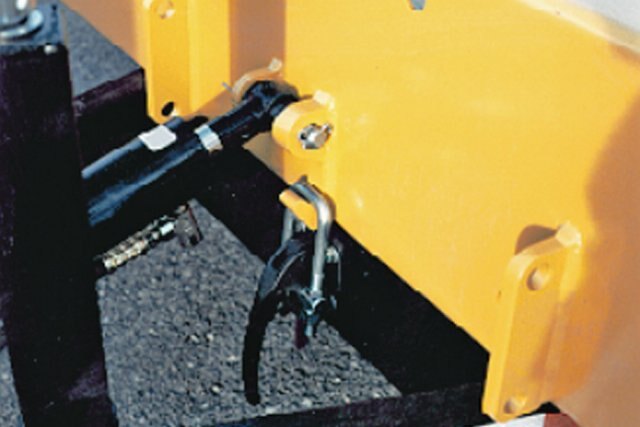

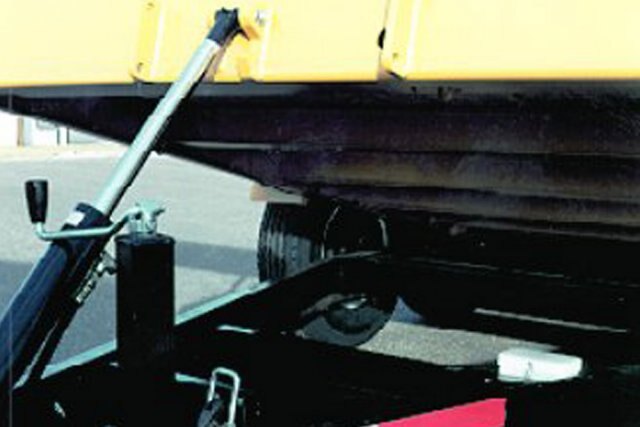

• Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder

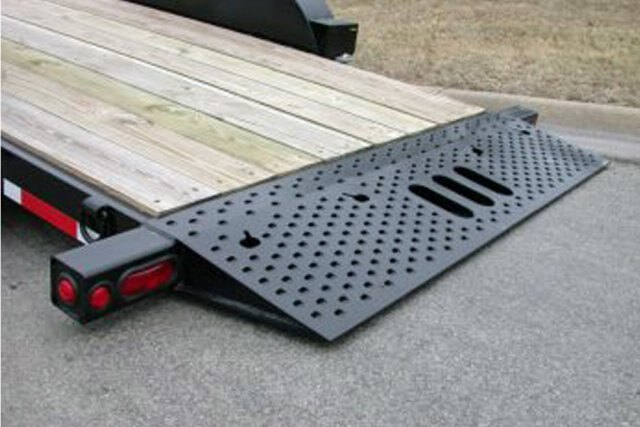

• Approach:  Full Width Landoll Traction Plate
• Lock Down:  Positive Over Center
• Electrical:  7 Pole RV Electric Plug - Wiring in Conduit
• Lights:  Sealed Beam - per I.C.C & Federal Regulations

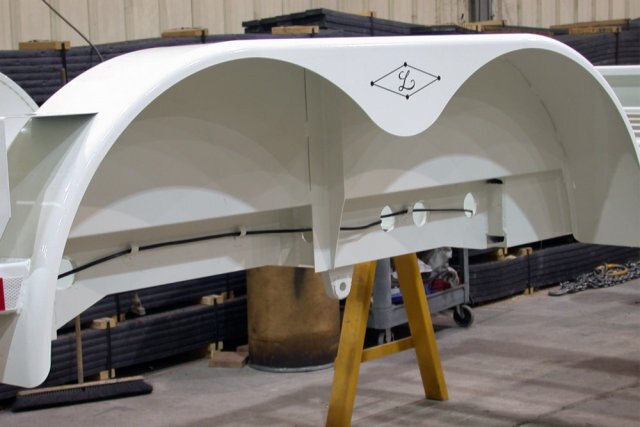

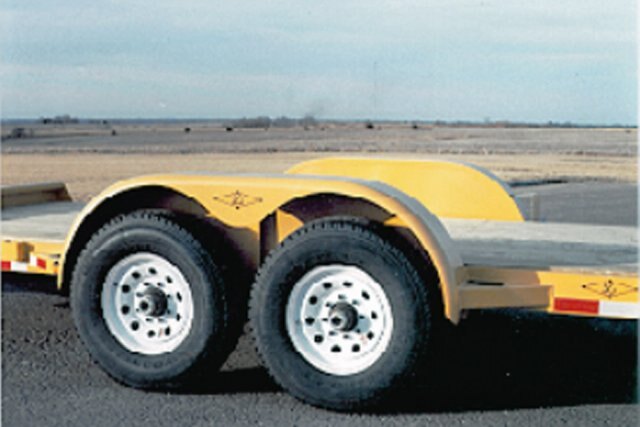

• Fenders:  14 Gauge - Cold Rolled Formed with Back
• Running Boards:  16 Gauge - Cold Roll Formed with Anti-Skid Tape
• Tie Rings:  5/8" D-Rings (6)
• Stake Pockets:  4 per Side
• Safety Chains:  3/8" x 35" G70 Chain
• Beak-Away Kit:  with GelCel Chargeable Battery and Box
• Finish:  Your Choice: White, Black or Yellow, Non-Fading Scratch and Chip Resistant "Powder Coat" Paint
• Decals:  Hi-Visibility Reflective Package
