Full 10,000 lb. capacity 16' Tag

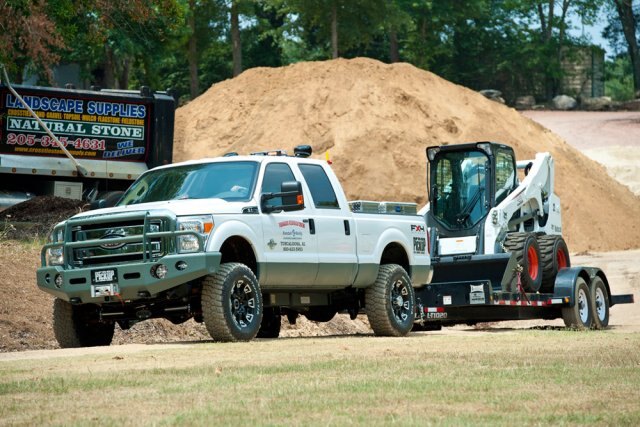

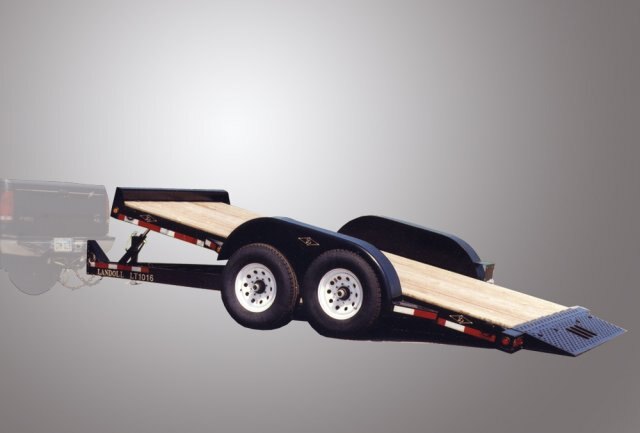

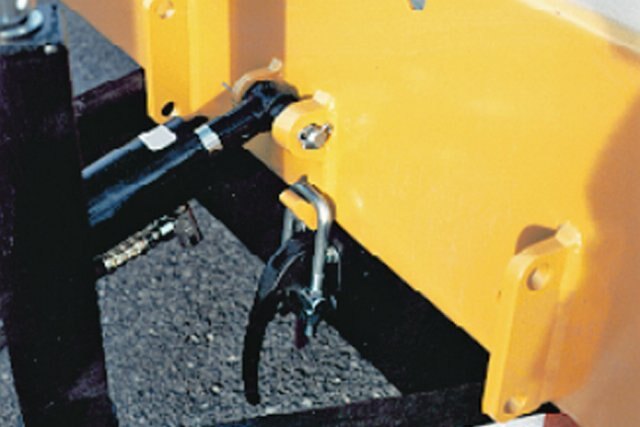

The LT1016 is a 10,000 lb. capacity 16' tilting tag trailer designed to haul light construction and landscaping equipment.  The LT1016 is ideal for rental applications.  A cushion cylinder tilts the deck for easy loading and unloading. GVWR of the LT1016 is 13,150 lbs. Two 6,000 lb. Torflex axles and 235/80R 16 Load Range E tires are standard. Numerous options are available to customize the trailer to your needs.

STANDARD EQUIPMENT

• Estimated Base Weight:  3,150 lbs.
• *Load Capacity:  10,000 lbs.
• Main Frame:  6" Channel
• Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
• Jack:  7,000 lb. Top Crank Bull Dog
• Tires:  235/80R 16 LRE
• Wheels:  Steel Wheels - 8-Bolt Pattern
• Axles:  2 - 6,000 lbs. EZ Lubes
• Suspension:  Torflex Axles
• Brakes:  12" x 2" Electric Brakes (Both Axles)
• Hitch:  Your Choice: 2-5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment -- 12,000  Capacity
• Toolbox:  In Hitch
• Decking:  2" CA-B (Copper Azole) Treated Pine
• Deck Height (Loaded):  22" Loaded
• Width:  80" Inside Fenders - 102"O.A.
• Length:  16' Flat Deck
• Load Angle:  12.4°
• G.V.W.R.  13,150 lbs.

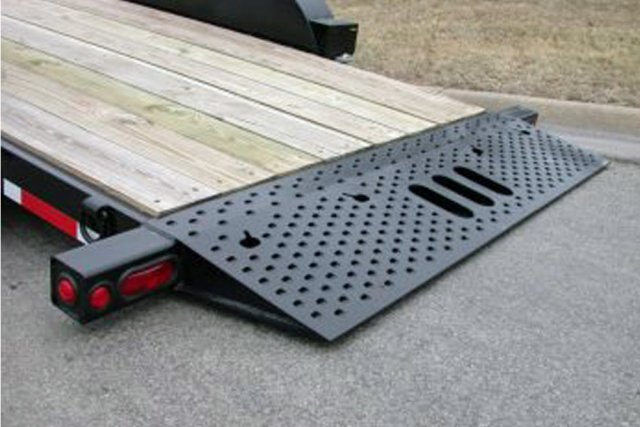

• Approach:  Full Width Landoll Traction Plate

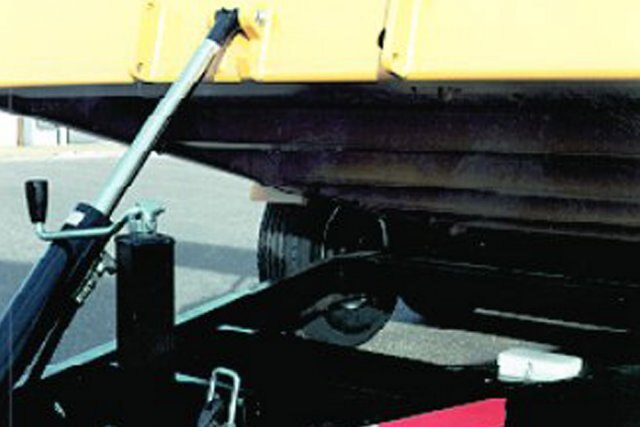

• Lock Down:  Positive Over Center
• Lights:  Sealed Beam - per I.C.C and Federal Regulations
• Electrical:  7 Pole RV Electric Plug - Wiring in Conduit

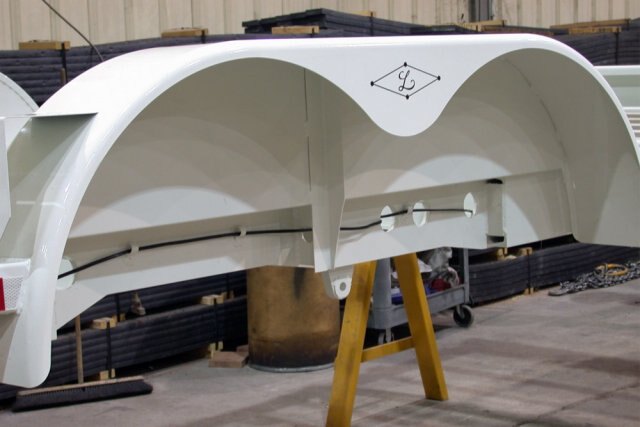

• Fenders:  14 Gauge Cold Rolled Formed with Back
• Running Boards:  16 Gauge Cold Roll Formed with Anti-Skid Tape
• Tie Rings:  5/8" D-Rings (4)
• Stake Pockets:  2 per Side
• Safety Chains:  3/8" x 35" G70 Chain
• Break-Away Kit:  with Gelcel Chargeable Battery and Box
• Finish:  Your Choice: White, Black or Yellow Non-Fading Scratch and Chip Resistant "Powder Coat" Paint
• Decals:  Hi-Visibility Reflective Package
