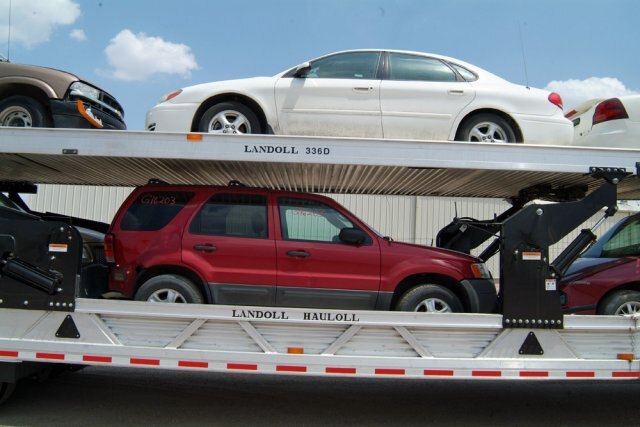

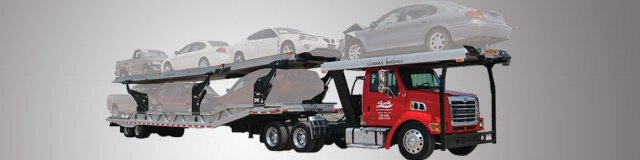

6 or 7 Car Trailer

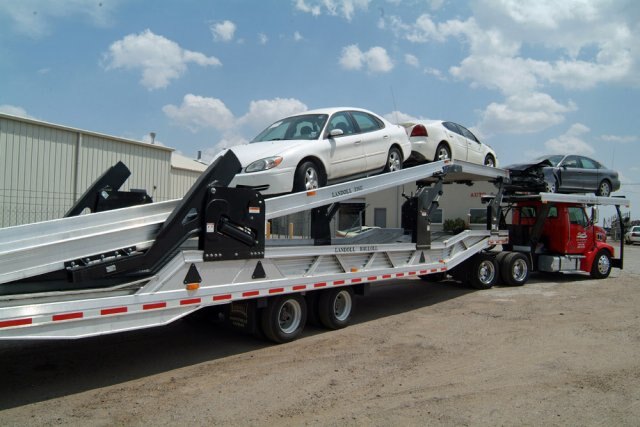

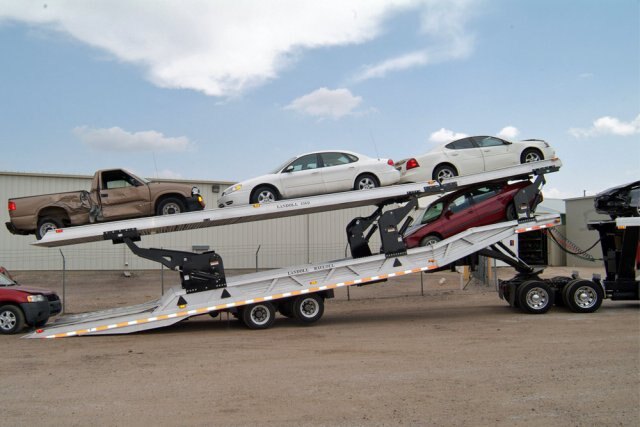

The Landoll 334/336 car trailer is ideal for moving a large volume of vehicles, decreasing time and manpower, thus increasing efficiency and return on investment. The Lower Deck features a dump angle of 18° and an Upper Deck angle of 28°.

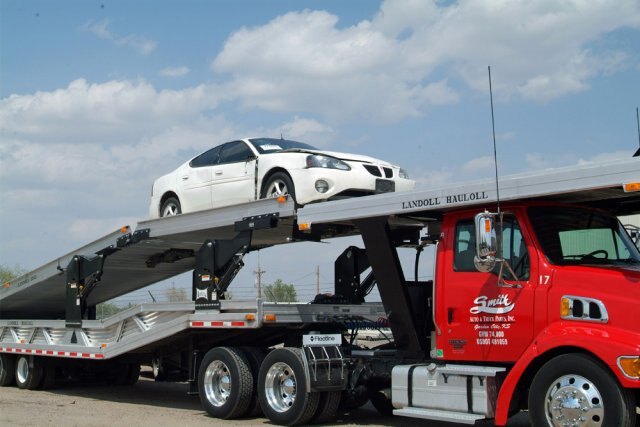

The durable and maneuverable trailer includes rugged guide rails on the lower and upper decks with an adjustable upper deck which allows for easy transition from trailer to overcab.

Hydraulic controls are cordless and manual, with an adjustable 24” vertical travel. The trailer also features a tilt cylinder, and the major steel components are powder coated.

STANDARD EQUIPMENT

• *Capacity:  24,000 lbs.
• Estimated Base Weight:  18,500 lbs.
• *Main Frame:  Full Aluminum Extrusions 6061-T6 Specs
• Crossmembers:  9" Aluminum Floor Plate with Extrusions Integral Crossmembers on 3" Centers
• Parking Stands:  Pin Drop
• Tires:  215/75R 17.5 LRH Double Coin
• Wheels:  Hub Pilot / Steel Outboard Brake Drums
• Axles:  2 - 25,000 lb. Dual Tire, Oil Bath Bearings
• Suspension:  Neway RLU228 Air Ride 22,500 lb. Capacity
• Brakes:  12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
• Oil Seal hubs:  Internal Mated Assembly
• Pin Setting:  15"
• Swing Clearance:  75"
• Width:  102"
• Length:  48'
• Air / Electrical:  Glad Hands / 7-Way Receptacle
• Hydraulic Hook Up:  Quick Couplers 2500 PSI / 17 GPM
• Lights:  Sealed, Potted, "LED", Grommet Mounted with Sealed Wiring Harness
• Tie Downs:  12 "D" Rings - 6 Key Holes on Each Approach Plate
• Finish:  Satin Finish
• Color:  All Metal Parts Powder Coated Black
• Decals:  Hi-Visibility Reflective Package

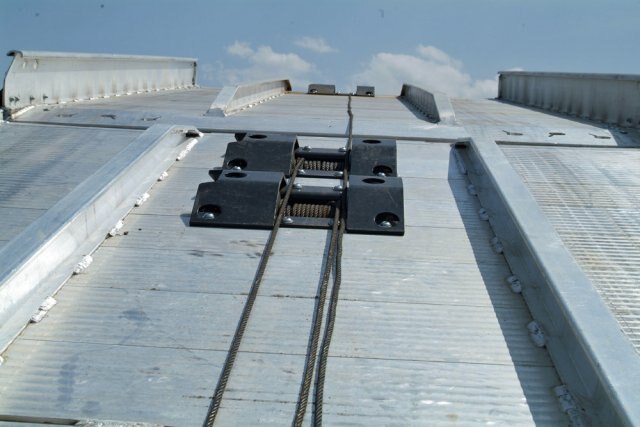

• Hydraulic Winch:  6 - Worm Gear 8,000 lb. with 65' of 3/8" Cable
• Tilt Cylinders:  2 - 4" x 32"
• Undercarriage Cylinder:  1 - 4" x 126"
• Top Deck Adjustment Cylinders:  6 Rephase

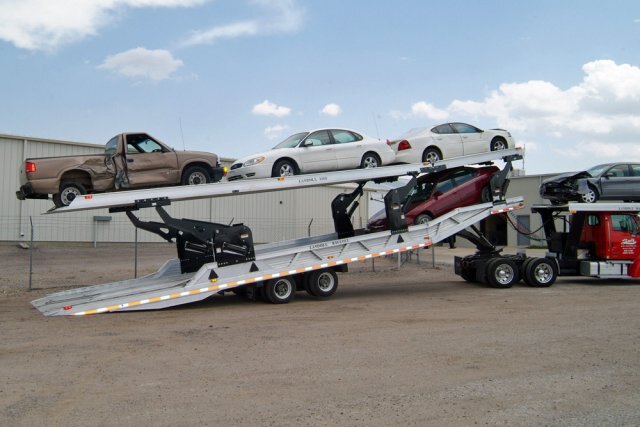

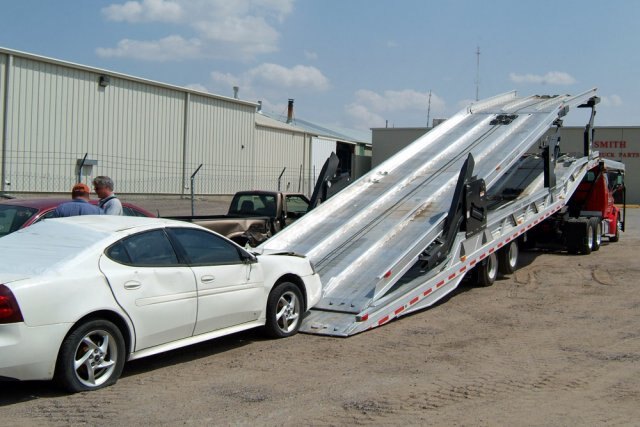

• Load Angle:  Minimum 8° Lower Deck 17° Upper Deck - Maximum 18° Lower Deck - 28° Upper Deck
• Upper Deck:  Hydraulic Adjustable 24" Vertical Travel with Safety Lock on 2" Increments
• Hydraulic Remote Controls:  Wireless Remote with Overriding Manual Controls on All Functions - Hand Held Control Box with Shoulder Strap
• Hitch:  Fifth-Wheel Kingpin - 45" Height

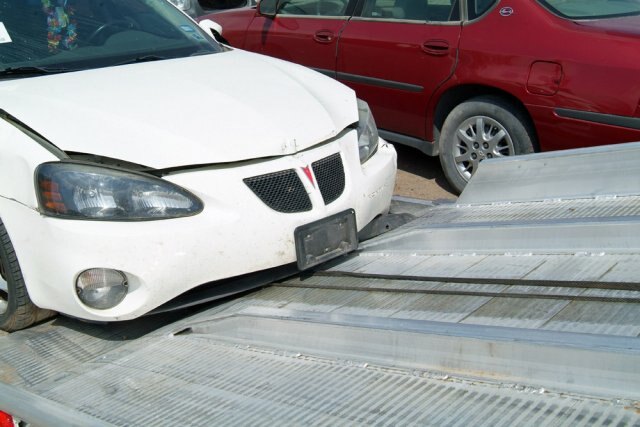

• Approach Plate:  Aluminum Extrusion with 6 Tie Downs

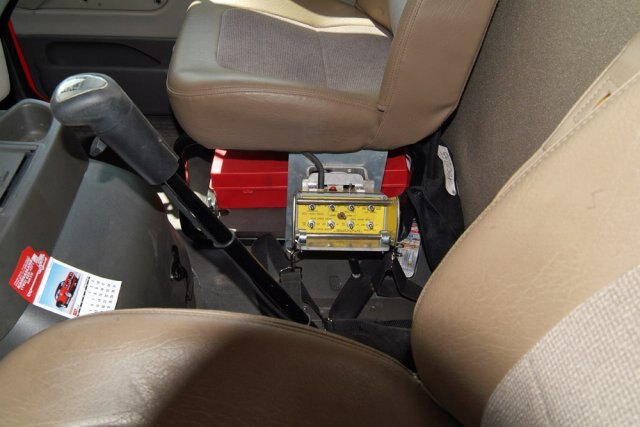

• Accessories:  Left Hand Tool Box and In-Cab Holder Control Box with Safety Buzzer, Automatic Slack Adjusters
