Sturdy Non-Hydraulic Trailer

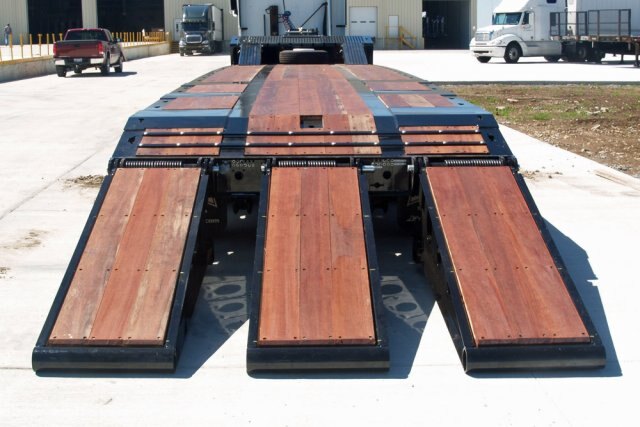

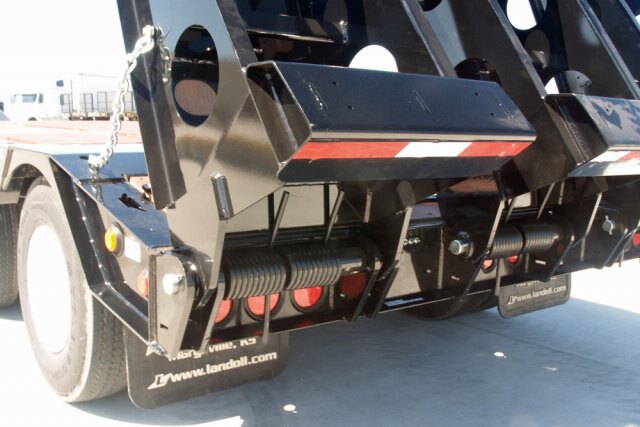

 The Model 150 fixed gooseneck beavertail trailer with triple axle and 50 ton capacity was designed to haul light and heavy construction equipment without hydraulics. The Landoll 150 features a rugged four-beam frame design with a longer beavertail that reduces the loading angle. The beavertail is equipped with self-cleaning adjustable spring assisted flip over ramps.

Many Standard Features

The 150 fixed gooseneck still has many of the other great features that you expect from a Landoll trailer such as Grote SuperNova LED lights, a sturdy 1-3/8" apitong hard wood deck, Grote wiring harness, and hub-piloted steel wheels.  Optional equipment may be easily added such as air-operated upper deck ramp and hydraulic winches for the upper deck.  As with all Landoll trailers, durable powder coat paint is included as well as a zinc-rich powder primer.

Standard Equipment

• *Capacity:  100,000 lbs.
• Deck Rating: 70,000 lbs. in 10'
• Estimated Base Weight: 14,000 lbs. (48')
• Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
• Crossmembers: 4" Junior I-Beam on 8" Centers
• Slope Drop: 90°
• Parking Stands: Jost Two-Speed
• Tires: 235/75R 17.5 LRH Double
• Coin Rims: 17.5x6.75 Tubeless
• Wheels: Hub Pilot / Steel Outboard Brake Drums
• Axles: 3 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings

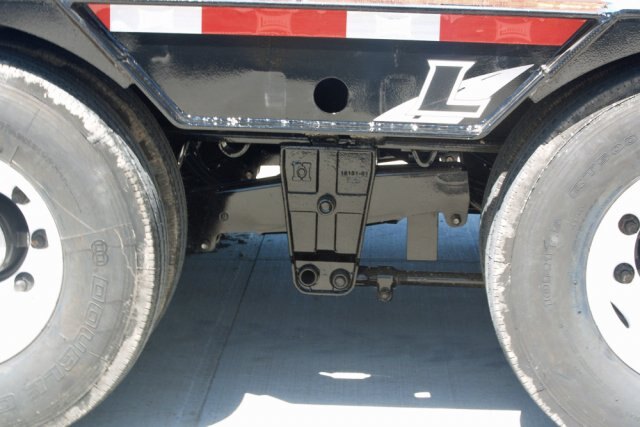

• Suspension: Multi-Leaf Springs 45,000 lb. Capacity
• Brakes:  12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
• Oil Seal Hubs: Internal Mated Assembly
• Hitch: Fifth-Wheel Kingpin
• Pin Setting: 18"
• Swing Clearance: 86"
• Loaded Ground Clearance: 20"
• Loaded Deck Height: 37-1/4"
• Width: 102"
• Air / Electrical: 7-Way Receptacle
• Decking: 1-3/8" Apitong Hardwood
• Lower Deck Length: 39'4"
• Beavertail: 68" Self-Cleaning
• Beavertail Ramps: 5' Self-Cleaning Adjustable Spring Assisted Flip-Over
• Lights: Grote "SuperNova" LED - 10-Year Warranty
• Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
• Finish: Steel Grit Shot Blast to Bright Metal Wiring
• Powder Coat Color: White / Black / Yellow / Blue / Red / Green
• Tie Downs: Double Key Hole Chain Slots and Stake Pockets Alternating on 16" Centers
• Decals: Hi-Visibility Reflective Package
• Load Angle: 14.5°
• Features: Automatic Slack Adjusters

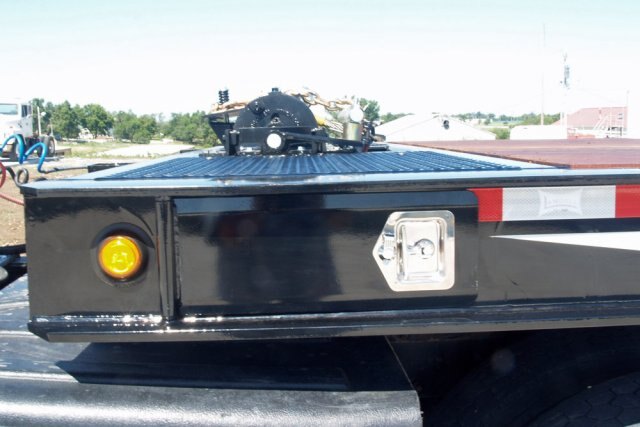

• Storage Area: Upper Deck 23" x 35" x 8" without Lid
