Description

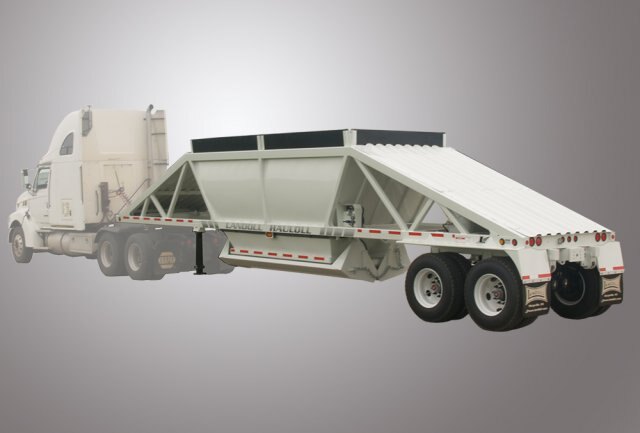

With the addition of a Model 314D tandem axle trailer to an existing 302D or 305D trailer, an additional 15 cubic yards of payload will be added to the load.  Some states, mostly in the Western United States allow this additional trailer to be pulled behind the bottom dump.

Standard Equipment

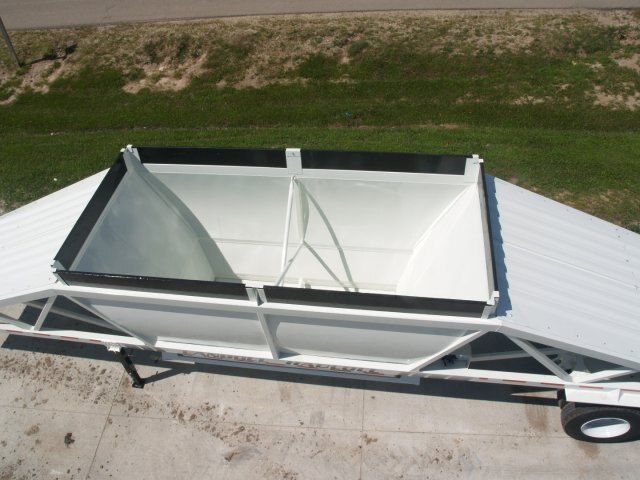

• *Capacity: 15 Cubic Yards
• Estimated Base Weight; 13,115 lbs.
• Main Frame: Tubular Trust Design
• Target Area: 12'4"L x 88"W
• Height: 8'11"
• Tires: 11R 22.5 Radial LRG Double Coin
• Wheels: Hub Pilot 10-Hole Disc Steel
• Hubs; Steel Hubs / Outboard Brake Drums

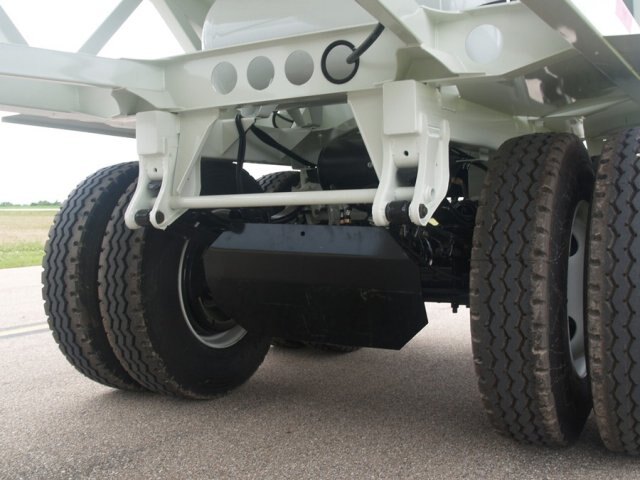

• Axles: 4 - 25,000 lb. Dual Tandem Tire, Oil Bath Bearings
• Suspension: 4 - Spring 3 Leaf Front and Rear

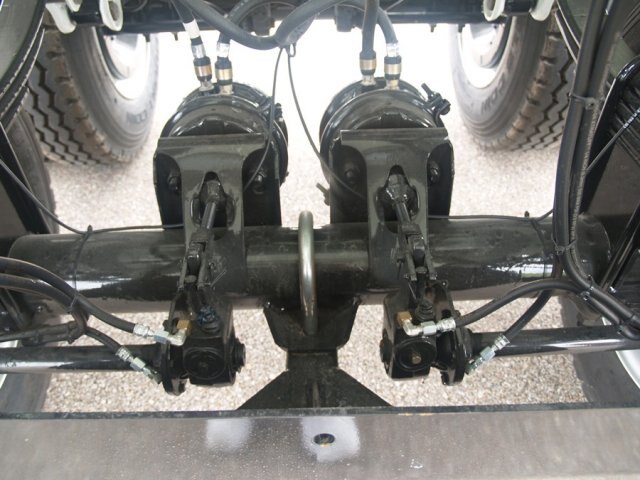

• Brakes: 16.5x7 Full Air / Spring Brakes ABS,
• Oil Seal Hubs: Internal Mated Assembly
• Width: 96"

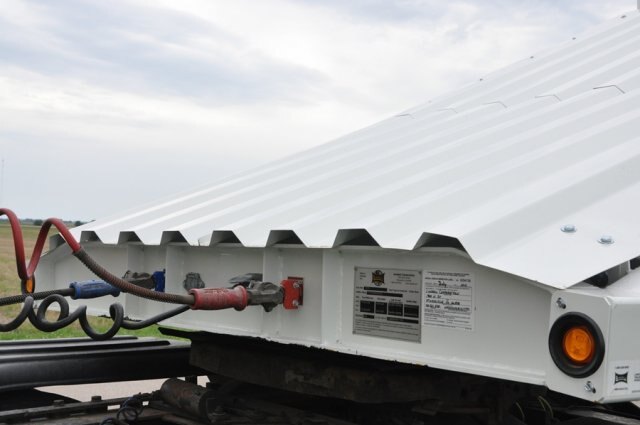

• Air / Electrical: Glad Hands / 7-Way Receptacle
• Lights: Sealed, Potted, "LED", Grommet Mounted with Sealed Wiring Harness
• Finish: Steel Grit Shot Blast to Bright Metal
• Powder Coat Color: White / Black / Yellow / Blue / Red / Green
• Air Cylinders: 2 - 7" Bore x 30" Stroke
• Decals: Hi-Visibility Reflective Package
• Gate Air Reservoir Capacity: 40 Gallon

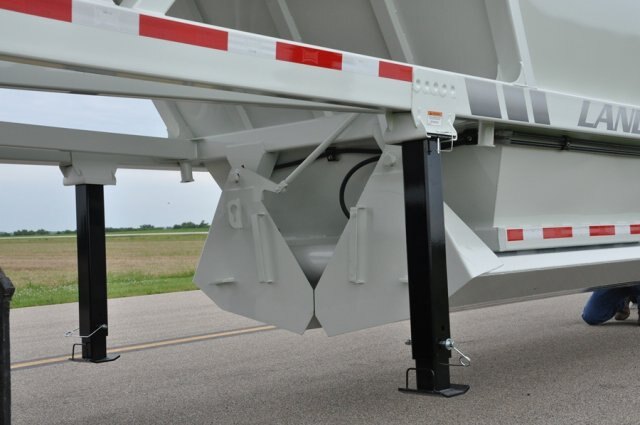

• Gates: Single Air Operated Windrow Type 59" x 58" Opening
• Hitch: No Draw Bar Standard

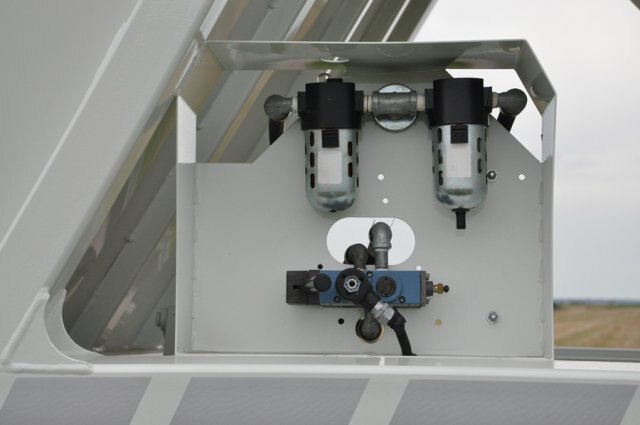

• Accessories: Bolt-On Full Front / Full Rear Fenders with Mud Flaps, Air Line Lubricator, Water Separator, Manual Gate Control Valve, Auto Slack Adjusters
