ID # 13540633

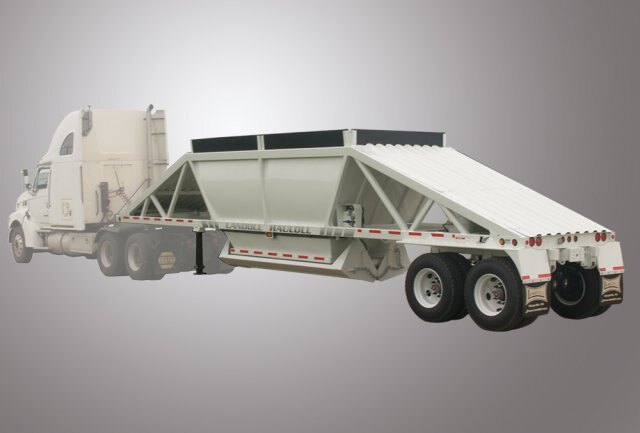

Landoll Bottom Dump Model 305D-B

  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
  • Landoll Bottom Dump Model 305D B
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Minimize Weight - Maximize Payload

With an empty weight of just 12,945 lbs. and a load capacity of up to 24 tons, the 305D Ultralite bottom dumps are a profitable investment. A rounded barrel-shape hopper design providing inherent strength eliminates the need for all but one stiffener making for a lighter weight trailer. The 21 cubic yard hopper capacity can be increased to 24 cubic yards with the additional sideboards and brackets.  The 305D is a triple axle bottom dump.

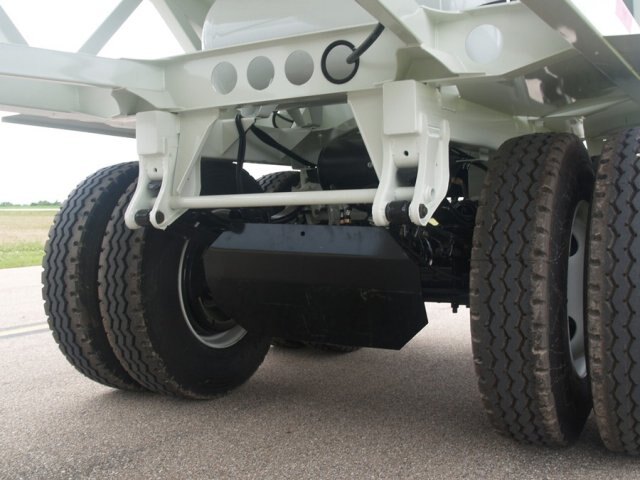

Unique Gates

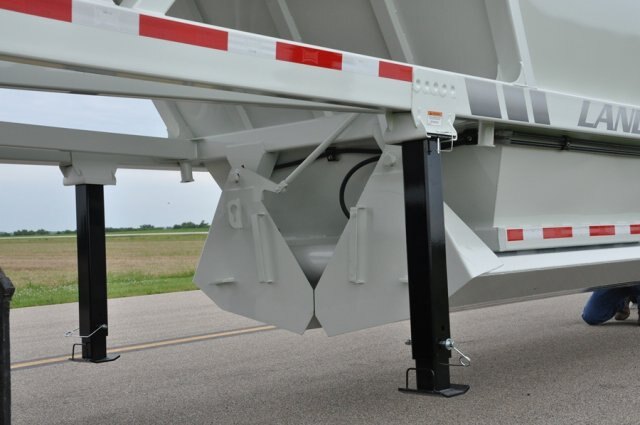

All 305D trailers are equipped with air-operated double clamshell windrow gates. With high-speed 7" cylinders these unique gates open faster, easier and with less outward tub-wall pressure that conventional flat-bottom gates. Rocking king pin bolsters that absorb and spread out load torque. Spring suspension is standard but an optional neway air ride suspension is available.
  Features

Standard Equipment

  • *Capacity: 21 Cubic Yards
  • Estimated Base Weight: 12,945 lbs. (39'1")
  • Main Frame: Tubular Trust Design
  • Target Area: 16'L x 88"W
  • Height: 8'9"
  • Parking Stands: Gate Mounted
  • Tires: 11R 22.5 Radial LRG Double Coin
  • Wheels: Hub Pilot 10-Hole Disc Steel
  • Hubs: Steel Hubs / Outboard Brake Drums
  • Axles: 3 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: 6-Spring 3 Leaf

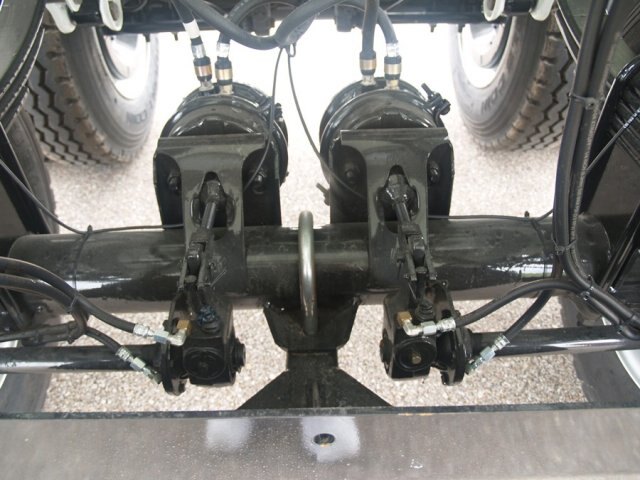

  • Brakes: 16.5x7 Full Air / Spring Brakes ABS, 4S2M / Center Axle Indirect
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 18"
  • Swing Clearance: 102"
  • Width: 96"

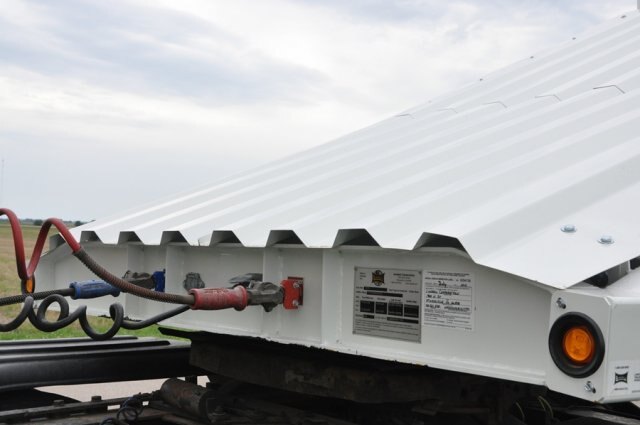

  • Air / Electrical: Glad Hands / 7-Way Receptacle
  • Lights: Sealed, Potted, "LED", Grommet Mounted with Sealed Wiring Harness
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package
  • Air Cylinders: 2 - 7" Bore x 30" Stroke
  • Gate Air Reservoir Capacity: 60 Gallon
  • Gates: Single Air Operated Windrow Type 58" x 117" Opening
  • Hitch: Fifth-Wheel Kingpin with Lateral Rocking Type Plate

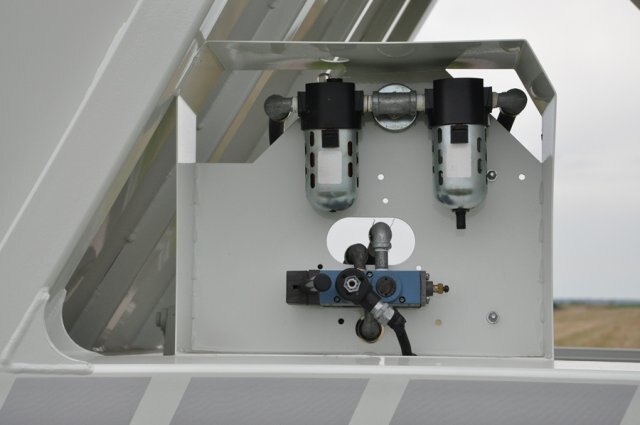

  • Accessories: Weld on Full Rear Fenders with Mud Flaps, Air Line Lubricator, Water Separator, Manual Gate Control Valve, Auto Slack Adjusters, Hitch Mounting Bracket

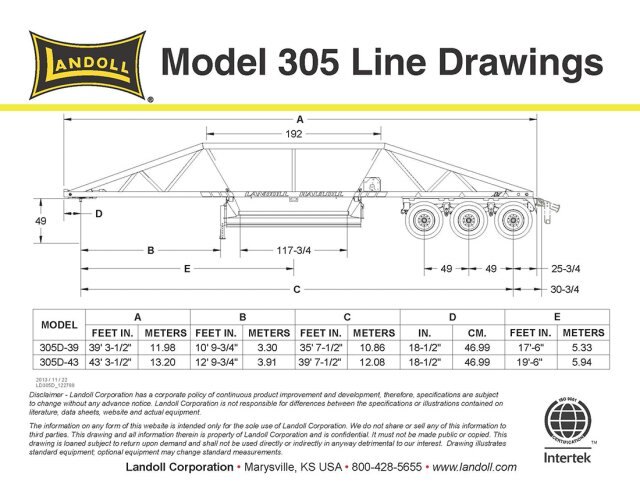

 Specs

Model
CAPACITY
GATES
       DECK AXLES
TIRES & PLY RATING
305D-B-35   21 Cu. Yds.               Single Gate 35' 3 (12) 11R 22.5 Radial LRG
305D-B-39'1 21 Cu. Yds.      Single Gate 39'1 3 (12) 11R 22.5 Radial LRG
305D-B-43 21 Cu. Yds.      Single Gate      43' 3 (12) 11R 22.5 Radial LRG




Specifications
Model
Bottom Dump Model 305D-B
Category Name
Trailers
Year
2016
Sale Type
New
Manufacturer
Landoll
