versatility plus many standard features

The Landoll 800 Paver Series’ versatility originates in its primary standard features. The new innovative 4-beam frame features a flat deck with a loaded height of 19-1/2". The 855-PS is a  triple axle, 110,000 lb. capacity with a 12’ concentrated deck rating. The 855 three axle frame is fourth axle ready.

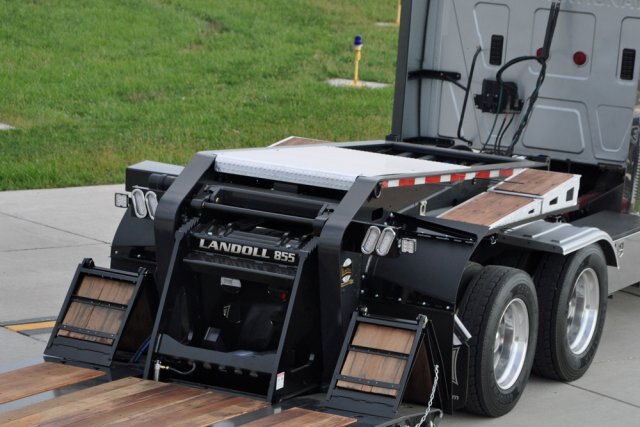

Patented gooseneck design - flexibility

The gooseneck is a Landoll patent that gives the operator the control at his fingertips. Dual swing clearance is 108" and 90", with dual pin settings of 15" and 33".   The 7-position ride height on the 12'5" gooseneck (10'9" gooseneck standard on 48') gives needed ground clearance and lowers the deck height to carry extremely high loads. No other gooseneck offers such flexibility as the Landoll 855-PS Paver Special.

complete package

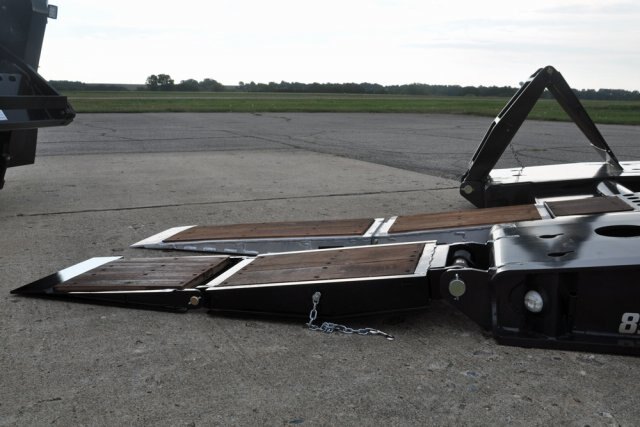

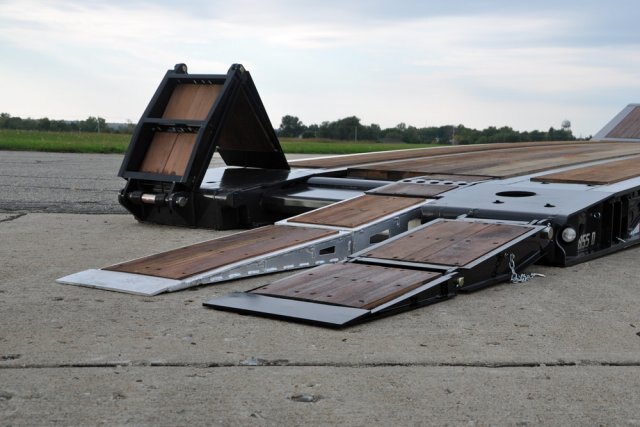

The 855 Paver Series is the complete package. Maximum lower deck length allows you to position your loads and scale legally. For heavy loads, the base trailer comes standard with flip axle brackets and air/electrical couplers. To move a permit load with ease, an optional flip axle can be added. The 800-Paver Special Series is work ready with a flattened front approach, apitong wood in track area, a recessed storage compartment and swing-out overwidth extensions. The front, double outrigger is for added strength at the break over. There are traction bars on the approach and on the front half bolster for added traction.

standard equipment

• Capacity: 55 Ton
• Deck Rating: 100,000 Lbs. in 12 Foot
• Estimated Base Weight: 23,900 Lbs. (53')
• Main Frame: Fabricated 13" Beam, 100,000 PSI Flange
• Crossmembers: 8" High Tensile I-Beams on 24" Centers
• Tires: 255/70R 22.5 Double Coin LRH
• Rims: 22.5 x 8.25
• Wheels: Hub Pilot/Steel Outboard Brake Drums

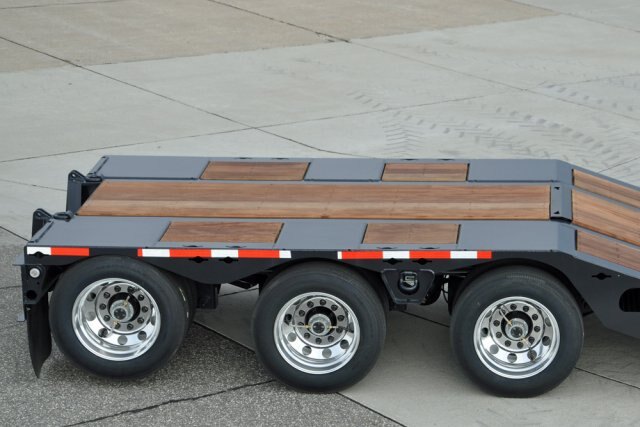

• Axles:  3 - 25,000 Lb. Tandem Dual Tire, Oil Bath Bearings 54" Spacing on 53', 50" Spacing on 48, Auto Slacks-All Axles
• Suspension: Neway Air Ride 25,000 Lb. Capacity w/ Mechanical Ride-Height Control Valve
• Brakes: 16.5 x 7 Full Air w/Spring Brakes  ABS 4S2M
• Oil Seal Hubs: Internal Mated Assembly
• Pin Setting: Dual Pins 15" and 33"
• Swing Clearance: Dual Swing, 108" and 90"
• Loaded Ground Clearance: 6.5 Inches
• Loaded Deck Height:  19.5”
• Width: 102 Inches
• Decking: 2" Nominal, Apitong Full Covered Lower Deck, Rear Trunnion Wheel Areas Covered
• Gooseneck: 12.5’ Dual Drop-In King Pin Settings, w/7-Position Fifth Wheel Ride Height (10'9" Gooseneck Std on 855-48CA)
• Air/Electrical: Glad Hand/7 Way Receptacle

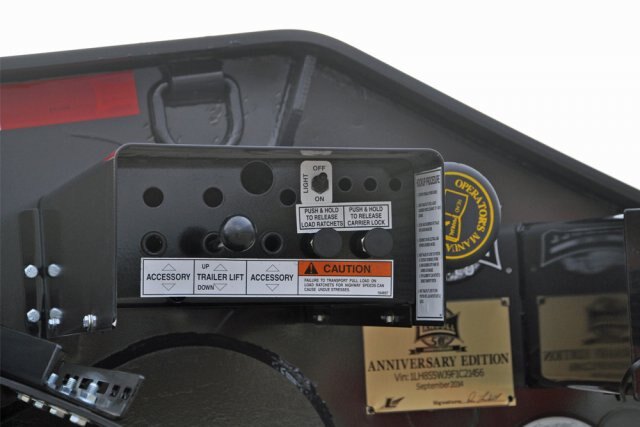

• Hydraulic Hook Up: Quick Couplers 2500 PSI/17 GPM
• Lights: Grote "SuperNova" LED-10 year Warranty, Grote "Ultra Blue Seal" Harness 7-year Warranty
• Finish: 400 Degree Bake/Steel Grit Shot Blast to Bright Metal
• Color:  Zinc Rich Powder Primer Base, Powder Paint Color Choices: White/Black/Yellow,Blue,Red,Green/Grey

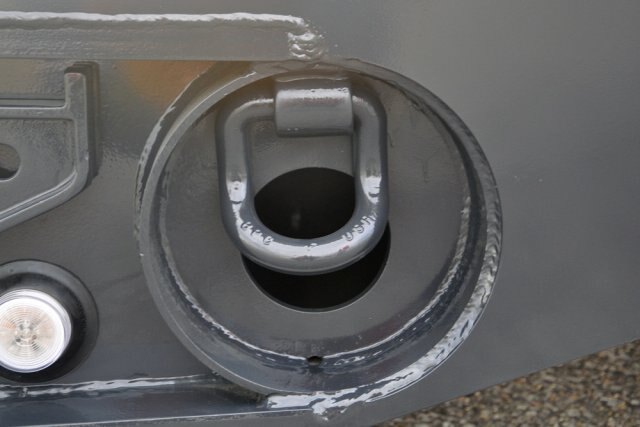

• Tie Downs: 16 Total, Angled "D" Rings, 6 each side lower deck, one on end of each bolster,  two (std. D-rings) at rear of Trunnion
• Cylinders: Main Gooseneck Cylinders Horizontally Mounted

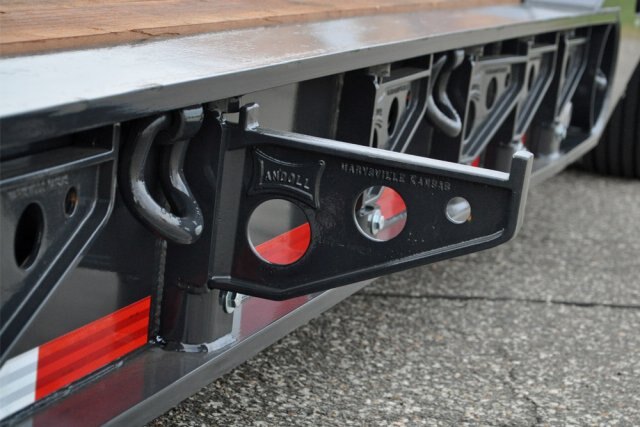

• Accessories: 4th  Axle Ready, 12" Swing-Out Outriggers, HD Sloped Front Approach w/ Traction Bars
