HAUL CONTAINERS AND MORE

For customers that want to haul containers that may have some weight inside, the 330-2 is the ideal trailer.  The tandem axle series has a higher 50,000 lb. GVWR but continues to offer maneuverability and stability with hydraulic control at all times when loading containers.  The heavier duty frame and undercarriage are built for many years of rugged service and strong enough to haul other equipment or automotive vehicles.

VERSATILITY WITH FULL TILT DESIGN

The full tilt design provides load angle versatility that allows container placement with hydraulic control at all times. Adjust the load angle from 9° to 17° to accommodate different locations. Place containers right on target (next to buildings, alleyways, behind or even inside retail warehouses).  The low 9 degree load angle this trailer offers, also gives flexibility to safely load equipment or vehicles.

Standard Equipment

• *Capacity: 50,000 lbs.
• Deck Rating: 20,000 lbs. in 10'
• Estimated Base Weight: See Specs Above
• Main Frame: Fabricated 80,000 PSI Yield Beams
• Crossmembers: 3-1/2" x 3-1/2" Tube on 18" Centers

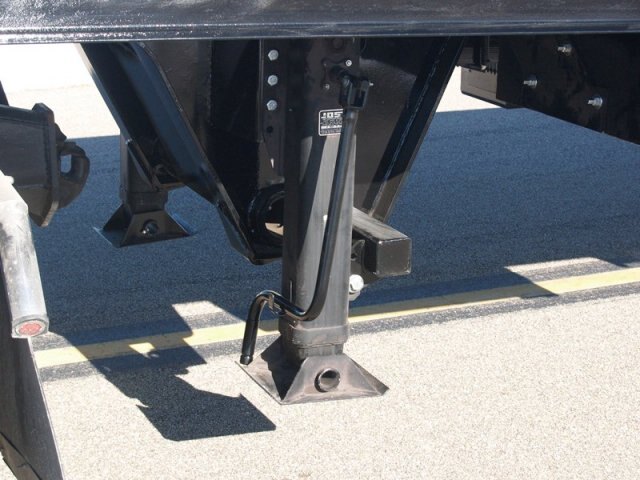

• Parking Stands: Jost Two-Speed
• Tires: 255/70R 22.5 LRH Double Coin
• Rims: 22.5x8.25 Tubeless
• Wheels: Hub Pilot Wheel / Steel Outboard Brake Drum
• Axles: 2 - 25,000 Dual Tire, Oil Bath Bearings
• Suspension: Transpro Mono Leaf 25,000 lb. Capacity
• Brakes: 16.5x7 Full Air / Spring Brakes ABS, 4S2M Oil Seal
• Hubs: Internal Mated Assembly
• Pin Setting: 30" (18" on 90° Drop)
• Swing Clearance: 72"
• Loaded Deck Height: 42"
• Width: 102"
• Decking: 1/8" Steel Tread Plate, 5" Cable Trough - Centered Full Length, Formed Angle Skid Plate / Side (5/16" x 12" x 3-1/2")

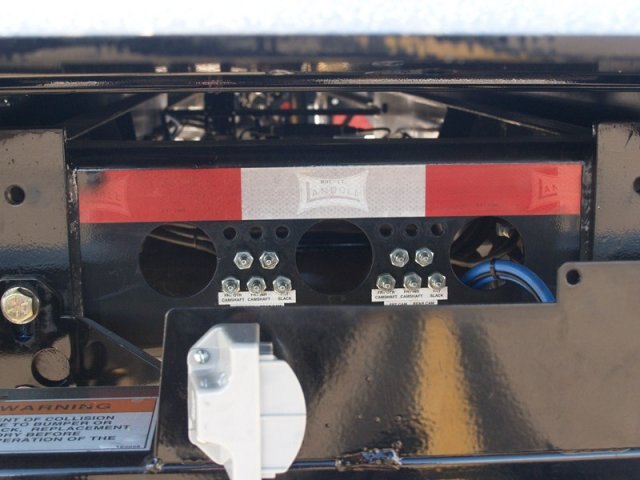

• Air / Electrical: 7-Way Receptacle
• Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
• Lights: Grote "SuperNova" LED - 10-Year Warranty
• Finish: Steel Grit Shot Blast to Bright Metal
• Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
• Decals: Hi-Visibility Reflective Package
• Powder Coat Color: White / Black / Yellow / Blue / Red / Green

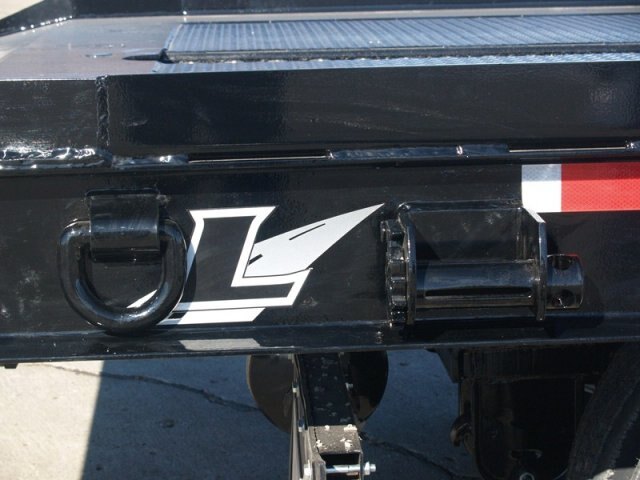

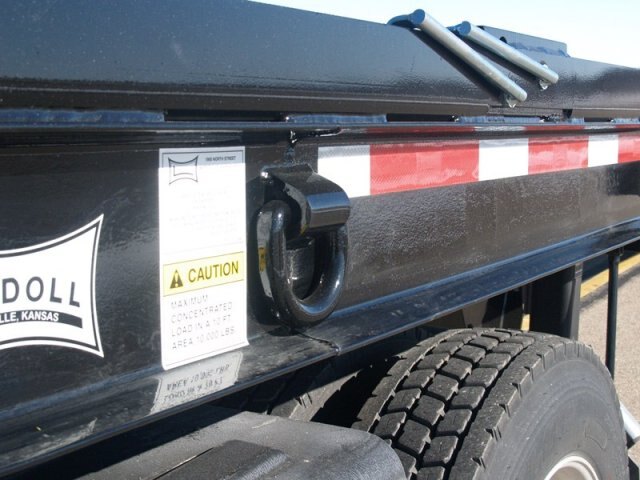

• Tie Downs: 4 - "D" Rings 2 per Side, 4 - 4" Strap Ratchets Curbside with Opposing Hooks Street Side

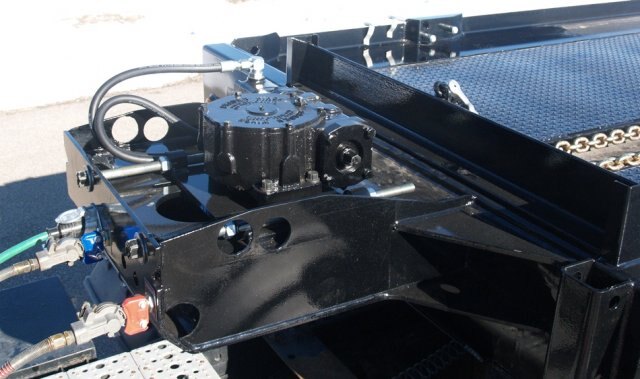

• Hydraulic Winch: Worm Gear 12,000 lb. with 85' of 1/2" Cable
• Tilt Cylinders: 2 - 4" x 42"

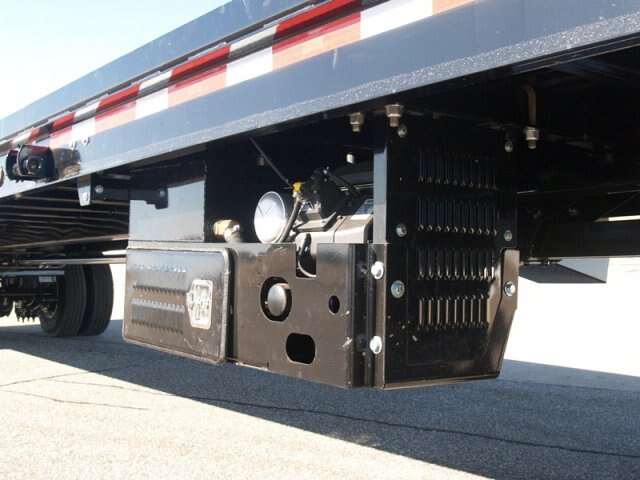

• Undercarriage: 1 - 4" x 126", Centralized Grease System; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
• Load Angle: 12°

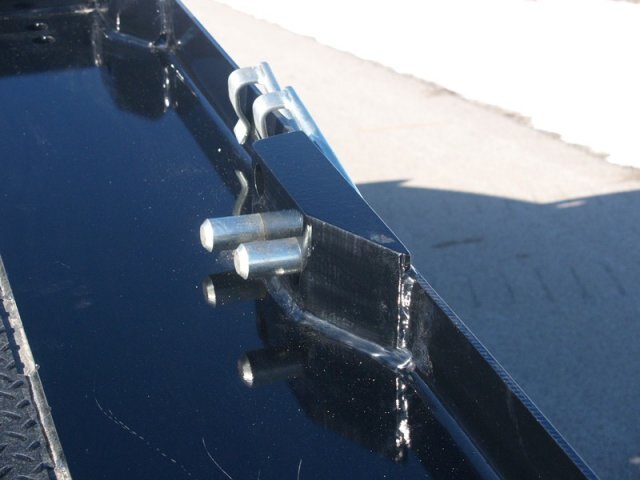

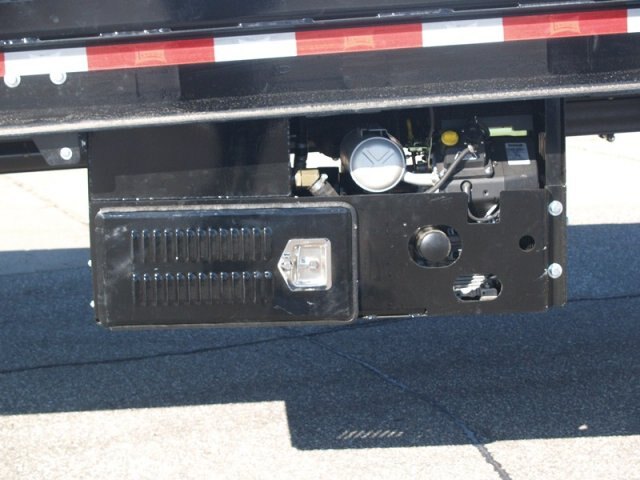

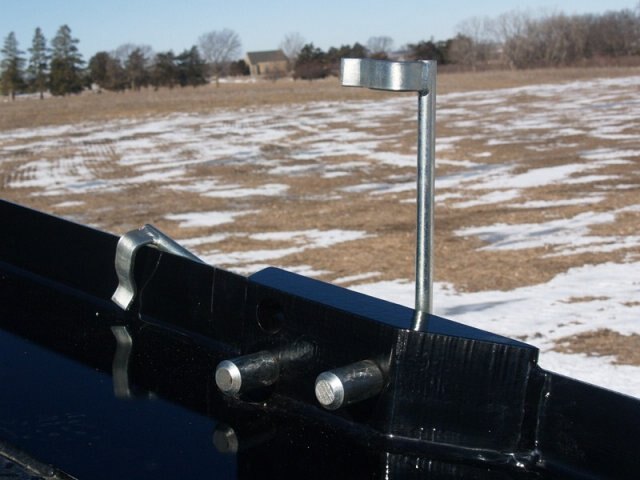

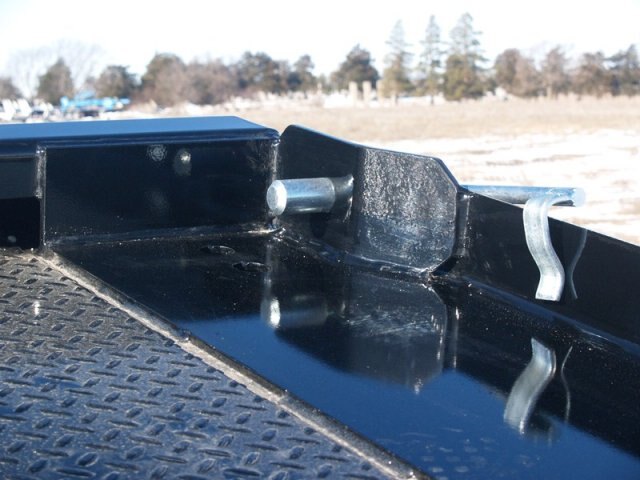

• Accessories:  Automatic Slack Adjusters, 29" Approach Plate with 4 Keyhole Tie Downs, 1 Pair Adjustable Container Stops, 1 Tool Box, (42"W x 28"D x 9"H)

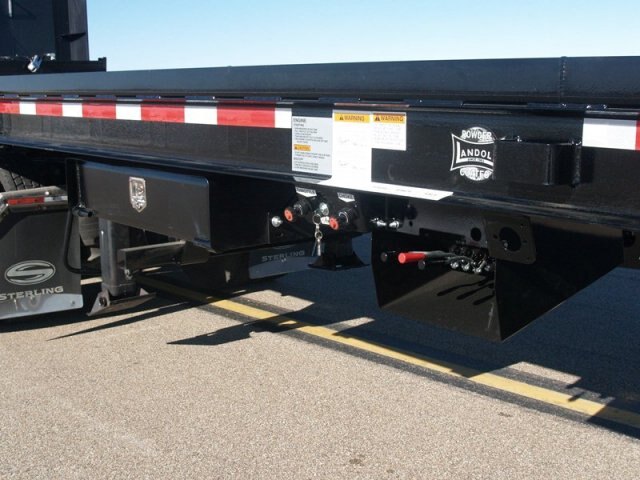

• Hydraulic Valve Body: Prince Electronic
