The Next Generation Landoll has Arrived!

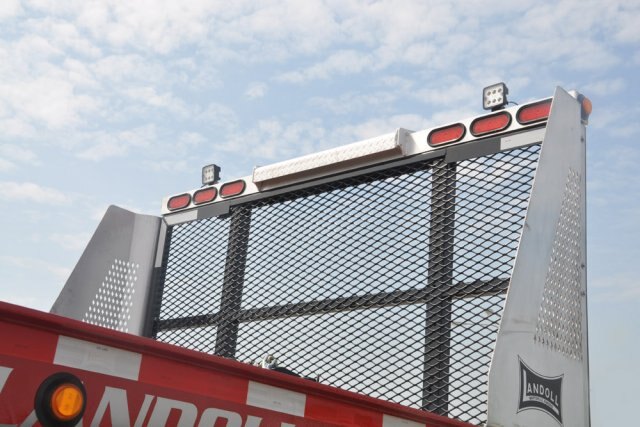

The Landoll Trailer Line is taking a huge leap forward with the introduction of the all new hydraulic operating systems, nicknamed H.O.S.S., and High Visibility Lighting package. The 440A and 455 "A" Series Traveling Axle trailers are the first models with these added standard features.
H.O.S.S. cuts the overall operational time in half. The axle traveling forward has increased by 36% and moving back by 58%. Tilt deck positioning has increased to nearly 63%, while winch in and out speeds are closer to 66%. This improvement will allow for more loads to take place.

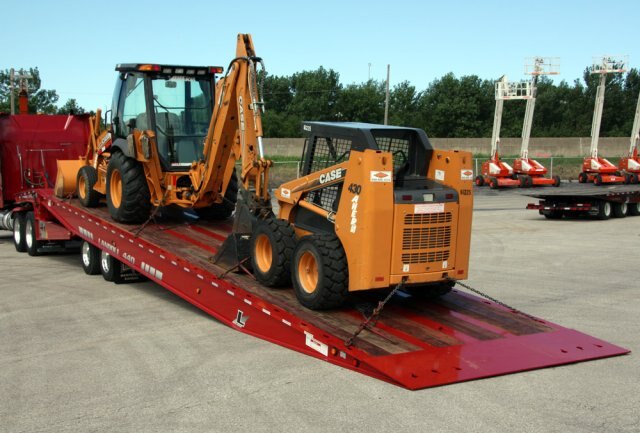

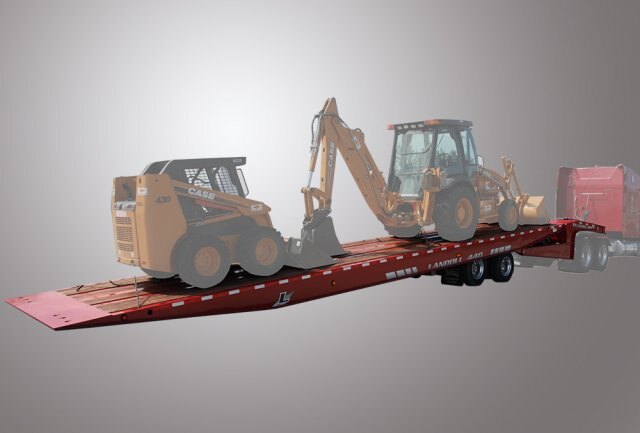

The Landoll 440A is a tandem axle trailer with a capacity of up to 40 tons. It is available in 48', 53', and California legal 50' lengths. Handle tough equipment including super low clearance pavers with an easy one-man operation. |

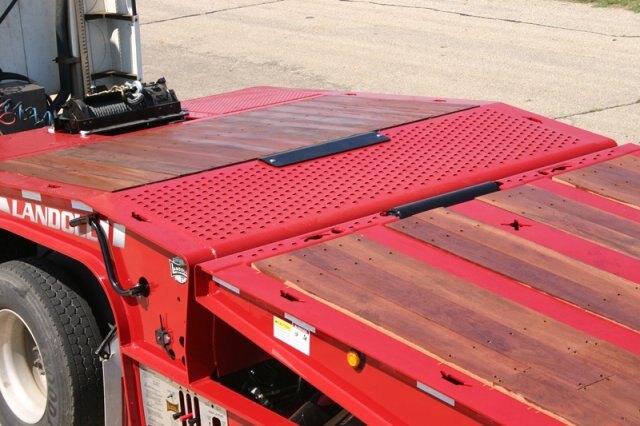

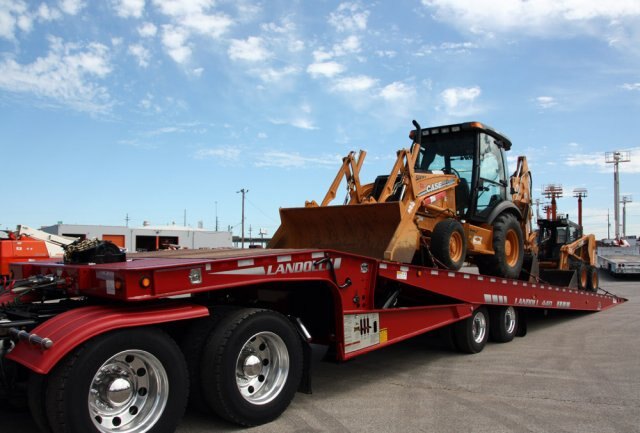

Low Clearance Upper Deck Transition
All 400 series trailers feature the super low clearance slope transition allowing manlifts, forklifts, and other difficult low clearance equipment to load easily on the upper deck. |
|
Ultimate Stability
The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, outer beam pivot points add superior stability while loading heavy loads. |
Powder Coat Paint
Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors. |
|
Railroad Track Option
The railroad track option is ideal for safely loading and transporting today’s rail maintenance equipment. The Landoll approach plate sits down onto the rail to create a solid base and smooth transition from rail to trailer without ramps or heavy drop-in-rails, allowing operators to load these machines within minutes. |
|
Features |
STANDARD EQUIPMENT - *Capacity: 80,000 lbs.
- Deck Rating: 50,000 lbs. in 10'
- Estimated Base Weight: See Above
- Main Frame: Fabricated 80,000 and 100,000 PSI Yield, 40" Center, Four-Beam Design
- Crossmembers: Alternating 4" and 3" Junior I-Beam on 8" Centers
- Slope Drop: 90°
- Parking Stands: Jost Two-Speed
- Tires: 235/75R 17.5 LRH Double Coin
- Rims: 17.5x6.5 Tubeless
- Wheels: Hub Pilot / Steel Outboard Brake Drums
- Axles: 2 - 25,000 lb. Dual Tire, Oil Bath Bearings
- Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity
- Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
- Oil Seal Hubs: Internal Mated Assembly
- Hitch: 5th Wheel Kingpin
- Pin Setting: 21"
- Swing Clearance: 83.5"
- Loaded Ground Clearance: 14" at Bottom of Gooseneck
- Loaded Deck Height: 37"
- Width: 102" Decking: 1-3/8" Apitong Hardwood
- Air / Electrical: 7-Way Receptacle
- Hydraulic Hook Up: Quick Couplers 2500 PSI / 20GPM @ controls, 50GPM Max
- Wiring Harness: "Grote Ultra-Blue Seal" - 7-Year Warranty
- Lights: Grote "SuperNova" LED - 10-Year Warranty
- Finish: Steel Grit Shot Blast to Bright Metal
- Tie Downs: Double Key Hole Chain Slots w/ Square Stake Pockets on 16" Centers
- Powder Coat Color: White / Black / Yellow / Blue / Red / Green / Dark Gray / Sapphire Blue
- Decals: Hi-Visibility Reflective Package
- Tool Box: Twin Upper Deck Mounted with Lockable Door (7"H x 34"W x 29"D)
- Hydraulic Winch: Worm Gear 12,000 lb. with Spring Tension and 85' of 1/2" Cable
- Tilt Cylinders: 2 - 6" x 30"
- Undercarriage: 2 - 4" x 126" - 48'; 4" x 126" and 4" x 138" - 50'; 4" x 138" - 53', Centralized Grease System; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
- Load Angle: 6.5°
- Accessories: Flat Approach Plate with Six Key Hole Tie Downs, Automatic Slack Adjusters, Main Deck Center Slope Roller, Very Soft Transition from Lower to Upper Deck
- Hydraulic Valve Body: Rexroth 20GPM @ controls, 50GPM Max
|
|

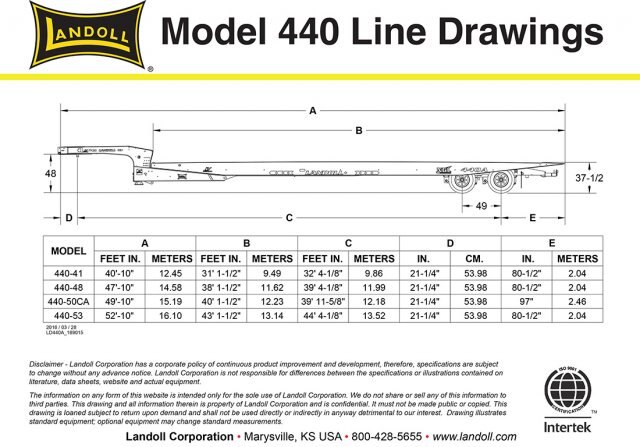

Specs |
| |
| |
| |
| MODEL |
CAPACITY |
BASE WEIGHT |
DECK |
AXLES |
TIRES & PLY RATING |
| 440A-41 |
40 Ton |
16,820 lbs. (+/- 3%) |
102" |
2 |
(8) 235/75R 17.5 LRH |
| 440A-48 |
40 Ton |
18,575 lbs. (+/- 3%) |
102" |
2 |
(8) 235/75R 17.5 LRH |
| 440A-50CA |
40 Ton |
19,355 lbs. (+/- 3%) |
102" |
2 |
(8) 235/75R 17.5 LRH |
| 440A-53 |
40 Ton |
19,610 lbs. (+/- 3%) |
102" |
2 |
(8) 235/75R 17.5 LRH | |
|
|
|
