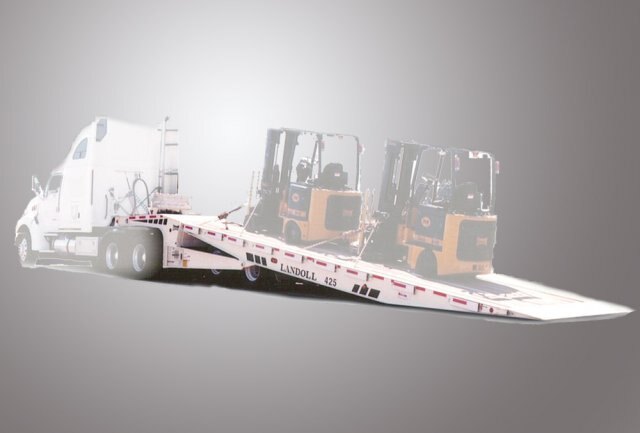

The Model 425 is a medium-duty, tandem axle, 25 ton capacity trailer available in lengths of 41' and 45'. The 425 is ideal for narrow, tight, winding road and inner-city applications with a lighter hauling capacity. The 425 may be a medium-duty trailer however, it still boasts all the features of the 400 series.

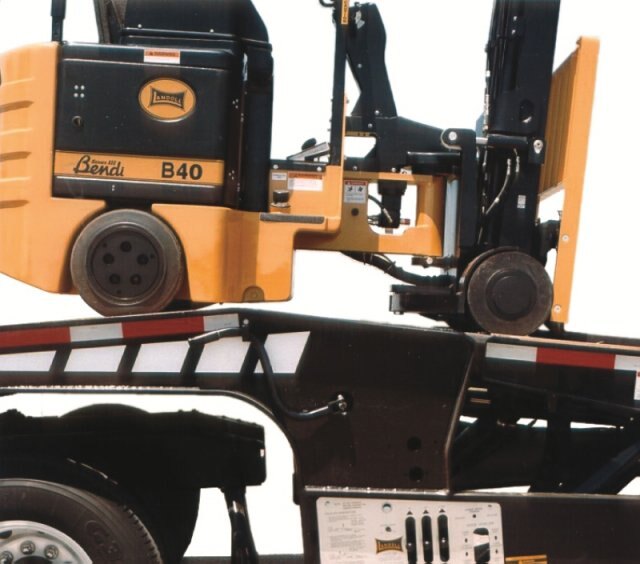

Low Clearance Upper Deck
All 400 series trailers feature the super low clearance slope transition allowing manlifts, skid loaders, and other difficult low clearance equipment to load easily on the upper deck.
Ultimate Stability
The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, and outer beam pivot points add superior stability while loading heavy loads.
Powder Coat Paint
Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors.
Features
STANDARD EQUIPMENT
*Capacity: 50,000 lbs.
Deck Rating: 40,000 lbs. in 16'
Estimated Base Weight: 16,800 lbs. + / - 3%
Main Frame: Fabricated 100,000 PSI Yield Four-Beam Design
Crossmembers: Alternating 4" and 3" Junior I-Beam on 8" Centers
Medium-Duty with Full
Low Clearance Upper Deck
Ultimate Stability
Powder Coat Paint
