• *Capacity: 50,000 lbs.
• Conc. Deck Rating: 50,000 lbs. in 20' Area
• Estimated Base Weight: 9,980 lbs.
• Main Frame: Continuous I-Beam
• Crossmembers: 4" Jr. I-Beams on 12" Center, 80,000# PSI
• Side Rail: 9" Deep Formed Steel Side Rails
• Jacks: 25,000 lb. Quick Lift Parking Stands
• Tires: 215/75R 17.5 LRH Double Coin
• Wheels: Hub Pilot / Steel Outboard Brake Drums
• Axles: 3 - 25,000 lbs. Dual Tire, Oil Seal Hubs
• Suspension: Multi-Leaf Springs 67,500 lb. Capacity
• Brakes: 12.25x7.5 Full Air ABS Rockwell 4S2M, Indirect Third
• Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20" x 30" Safety Chains - Eyelet 15,000 lb. Vertical; 60,000 lb. Total Capacity

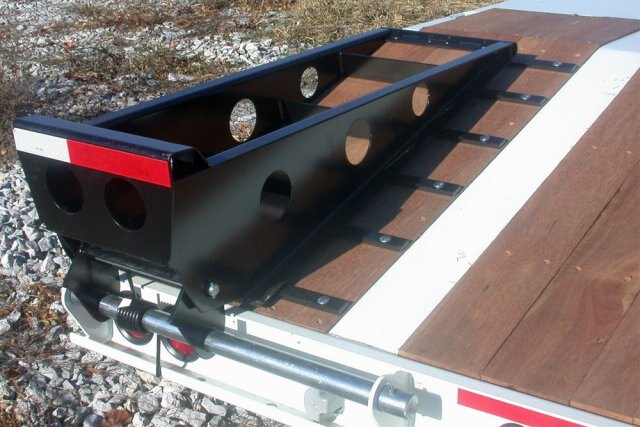

• Storage Area: Tool and Block Storage Tray in Hitch Area
• Decking: 1-3/8" Apitong
• Loaded Deck Height: 33"
• Headboard: 6" Headboard
• Width: 102" Wide
• Length: 29' Deck (24' Flat Deck + 5" Beavertail)
• Beavertail: Self-Cleaning
• Ramps: 5' Self Cleaning Adjustable Dual Spring Assisted Flip-Over Ramps
• Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. Approved
• Tie Downs: 10 Gotchas
• Finish: High Quality Powder Paint
• Color: Yellow, Black, White
• Decals: Hi-Visibility Reflective Package

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.
