• Conc. Deck Rating: 20,000 lbs. in 10' Area
• *Capacity: 24,000 lbs.
• Estimated Base Weight: 6,000 lbs.
• Main Frame: I-Beam
• Crossmembers: 4" Jr. I-Beams on 16" Centers 80,000# PSI
• Side Rail: 8" Deep Formed Steel Side Rails
• Jack: 12,000 lb. Quick Lift Parking Jack
• Tires: 235/80R 16 LRE
• Wheels: Dual Disc Wheels - 8-Hole
• Axles: 2 - 12,000 lbs. Axles with Oil Seal Hubs
• Suspension: Spring Suspension (3" Wide)
• Brakes: 12-1/4" x 5" Electric Brakes
• Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20" to 30" with Safety Chains
• Headboard: 6" Headboard
• Decking: 2" Nominal Fir
• Loaded Deck Height: 35"
• Width: 102" Wide
• Length: 24' Deck (19' Flat Deck + 5' Beavertail)
• Beavertail: 5' Self Cleaning Beavertail

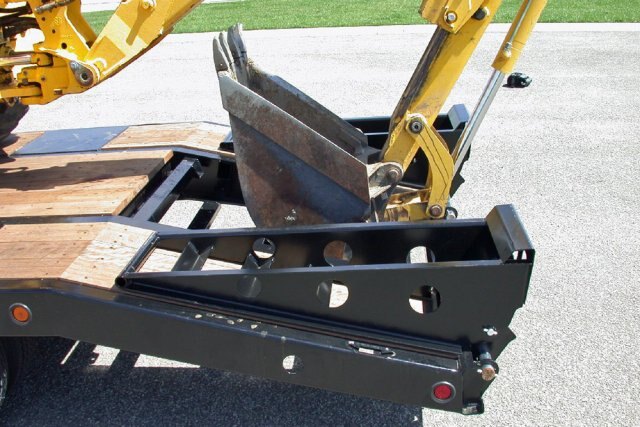

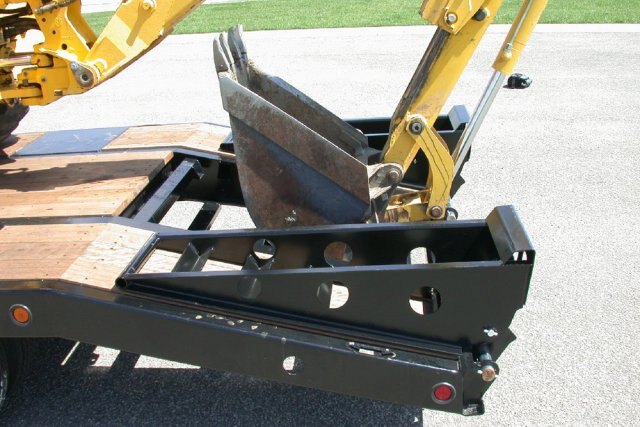

• Ramps: 5' Self Cleaning Adjustable Spring Assisted Flip-Over Ramps
• Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. Approved
• Tie Downs: 10 Double Key Hole Chain Locks - Gotchas / Stake Pockets
• Finish: High Quality Powder Paint
• Color: Yellow
• Decals: Hi-Visibility Reflective Package

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.
