ID # 13348947

Landoll L2024HD

  • Landoll L2024HD
  • Landoll L2024HD
  • Landoll L2024HD
  • Landoll L2024HD
  • Landoll L2024HD
  • Landoll L2024HD
  • Landoll L2024HD
  • Landoll L2024HD
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

L2024HD Heavy Duty 20,000 lb.

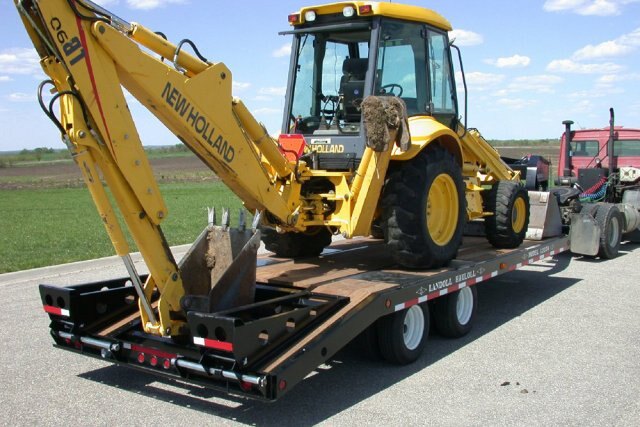

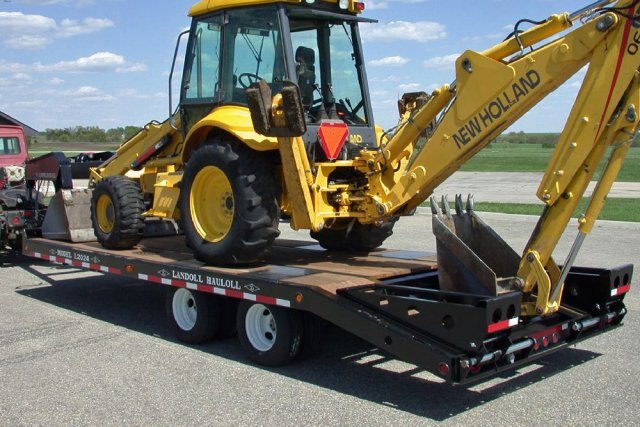

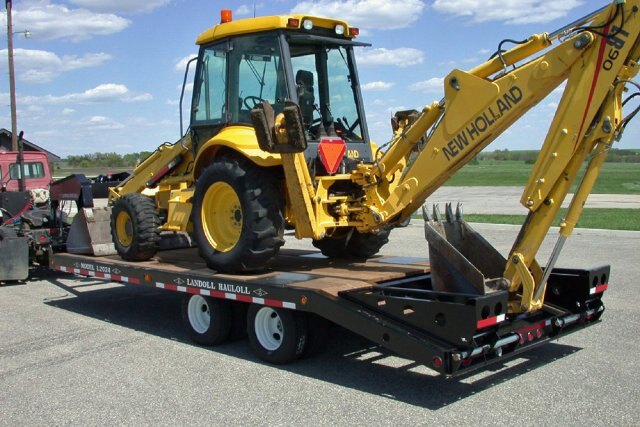

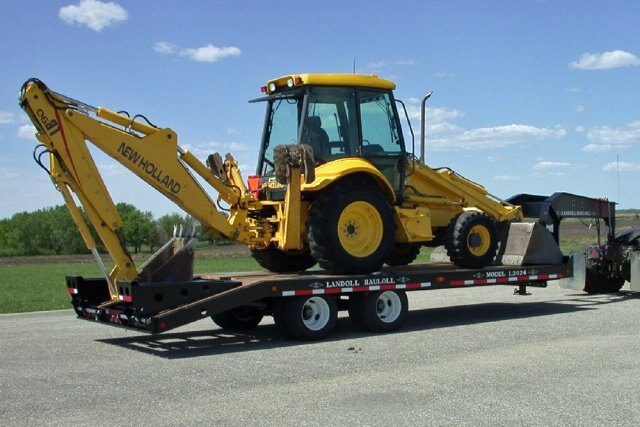

The model L2024HD (heavy-duty) is a full 20,000 lb. capacity industrial tag trailer with a 19' flat deck and 5' beavertail.  (26,000 GVW).  Standard features include a pierced main beam for a low deck height of 35".  Powder coat paint, ten combination stake pocket/chain gotchas are standard equipment along with large axles and tires to provide maximum working capacity.
  Features
  • *Capacity: 20,000 lbs.
  • Conc. Deck Rating: 20,000 lbs. in 10' Area
  • Estimated Base Weight:  Consult Factory
  • Main Frame: I-Beam
  • Crossmembers: 4" Jr. I-Beams on 16" Centers 80,000# PSI
  • Side Rail: 8" Deep Formed Steel Side Rails
  • Jack: 12,000 lb. Quick Lift Parking Jack
  • Tires: 235/80R 16 LRE
  • Wheels: Dual Disc Wheels - 8-Hole
  • Axles: 2 - 10,000 lbs. General Duty with Oil Sealed Hubs
  • Suspension: Spring Suspension (3" Wide)
  • Brakes: 12-1/4" x 4" Electric Brakes
  • Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20"to 30" with Safety Chains
  • Headboard: 6" Headboard
  • Decking: 2" Nominal Fir
  • Loaded Deck Height: 35"
  • Width: 102" Wide
  • Length: 24' Deck (19' Flat Deck + 5' Beavertail)

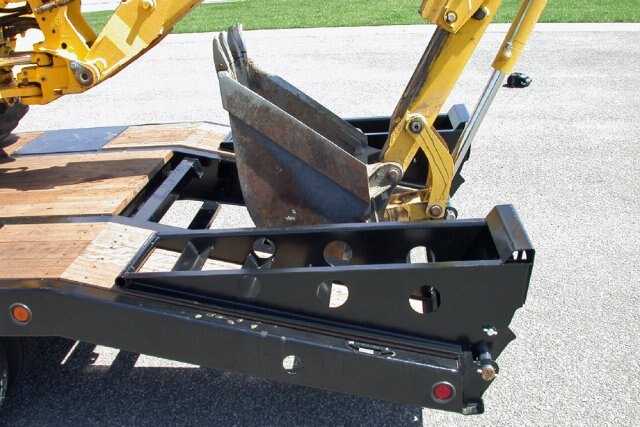

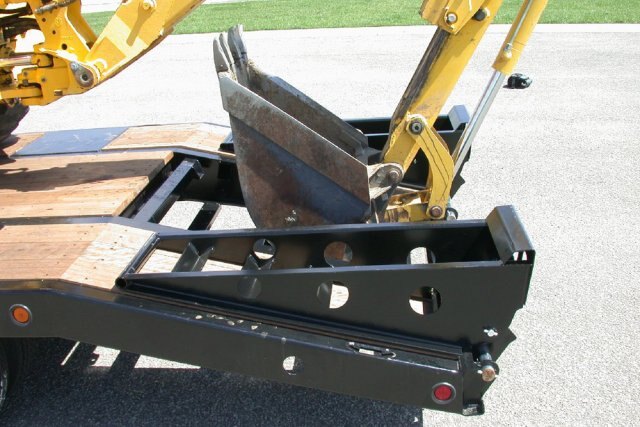

  • Beavertail: 5' Self Cleaning Beavertail

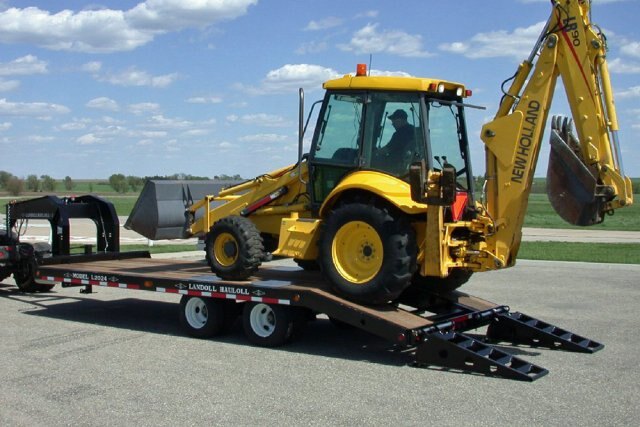

  • Ramps: 5' Self Cleaning Adjustable Spring Assisted Flip-Over Ramps
  • Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. Approved
  • Tie Downs: 10 Double Key Hole Chain Locks - Gotchas / Stake Pockets
  • Finish: High Quality Powder Paint
  • Color: Yellow
  • Decals: Hi-Visibility Reflective Package

*Capacity ratings are frame capacity only. Actual load capacities may be restricted by factors such as gross axle weight rating (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
L2024HD
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
20,000 lbs.
BASE WEIGHT
6,000 lbs.
DECK
24'
AXLES
2
TIRES & PLY RATING
235/80R 16 LRE
