ID # 13348946

Landoll L2024

  • Landoll L2024
  • Landoll L2024
  • Landoll L2024
  • Landoll L2024
  • Landoll L2024
  • Landoll L2024
  • Landoll L2024
  • Landoll L2024
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Superior Quality Long Lasting Industrial Tags

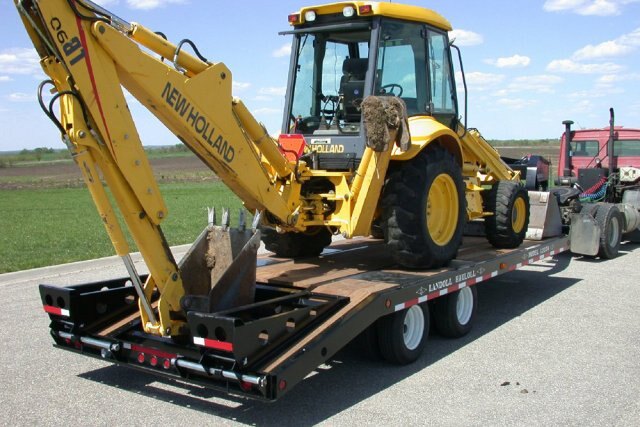

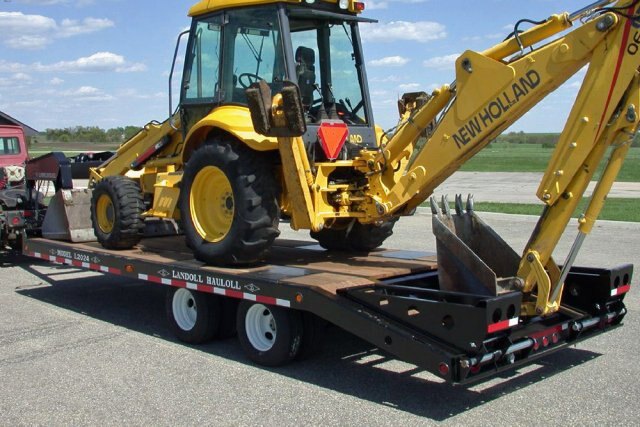

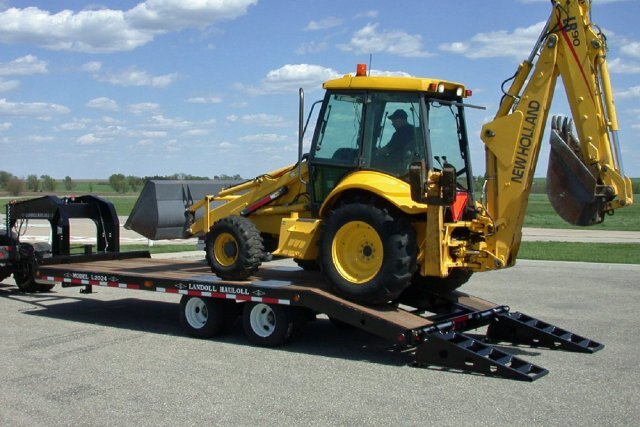

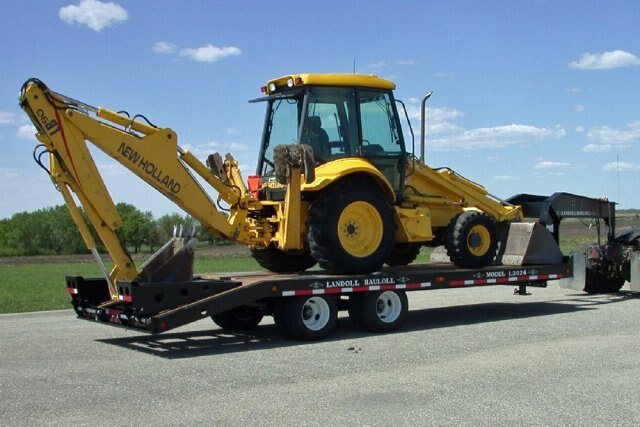

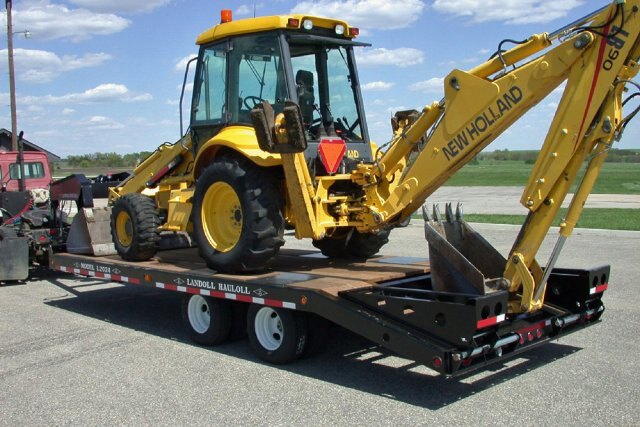

The L2024 is a 20,000 lb. capacity (26,000 GVWR) trailer for hauling of backhoes, skid steers, rollers, and other construction equipment.  The L2024 offers a 19' flat deck and a 5' beavertail.  Trailer is constructed of 4" Jr. I-Beams on 16" centers 80,000 PSI yield material.  8" deep formed side rails and 2 10,000 lb. axles with 3" spring suspension are also standard.  More standard features are a pierced main beam for a low 35" deck height, bucket trough, ten combination stake pocket/chain gotchas, and powder coat paint finish.
  Features
  • *Capacity: 20,000 lbs.
  • Conc. Deck Rating: 20,000 lbs. in 10' Area
  • Estimated Base Weight: 5,900 lbs.
  • Main Frame: I-Beam
  • Crossmembers: 4" Jr. I-Beams on 16" Centers 80,000# PSI
  • Side Rail: 8" Deep Formed Steel Side Rails
  • Jack: 12,000 lb. Quick Lift Parking Jack
  • Tires: 235/80R 16 LRE
  • Wheels: Dual Disc Wheels - 8-Hole
  • Axles: 2 - 10,000 lbs. General Duty with Oil Sealed Hubs
  • Suspension: Spring Suspension (3" Wide)
  • Brakes: 12-1/4" x 3-3/8" Electric Brakes
  • Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20" to 30" with Safety Chains
  • Headboard: 6" Headboard
  • Decking: 2" Nominal Fir
  • Loaded Deck Height: 35"
  • Width: 102" Wide
  • Length: 24' Deck (19' Flat Deck + 5' Beavertail)

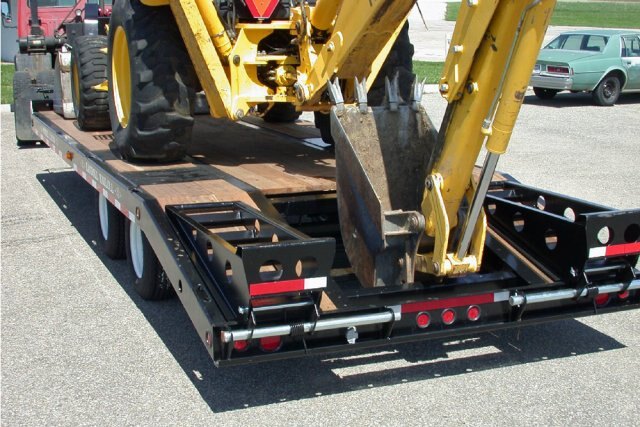

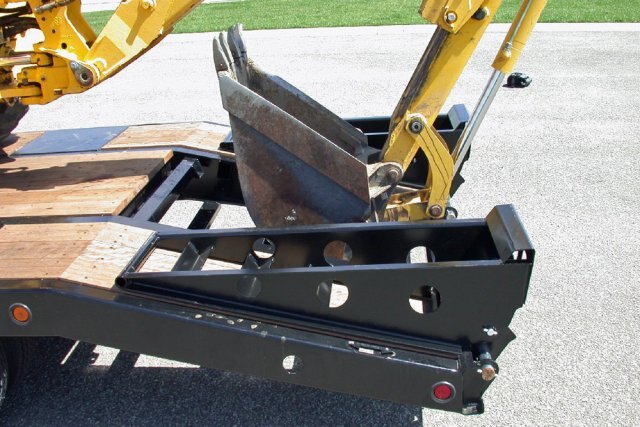

  • Beavertail: 5' Self Cleaning Beavertail
  • Ramps: 5' Self Cleaning Adjustable Spring Assisted Flip-Over Ramps
  • Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. Approved
  • Tie Downs: 10 Double Key Hole Chain Locks - Gotchas / Stake Pockets
  • Finish: High Quality Powder Paint
  • Color: Yellow
  • Decals: Hi-Visibility Reflective Package

*Capacity rating are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
L2024
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
20 Ton
BASE WEIGHT
5,900 lbs.
DECK
24'
AXLES
2
TIRES & PLY RATING
235/80R 16 LRE
