• *Load Capacity:  14,000 lbs.
• G.V.W.R.  18,200 lbs.
• Base Weight:  4,200 lbs.
• Main Frame:  6.5" Fabricated Channel
• Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 12" Centers
• Jack:  12,000 lb. Top Crank - Bull Dog
• Tires:  215/75R 17.5 LRH
• Wheels:  Steel Wheels - 8-Bolt Pattern
• Axles:  2 - 8,000 lb. EZ Lubes
• Suspension  Torflex Axles
• Brakes:  12-1/4" x 3-3/8" Electric Brakes (Both Axles)

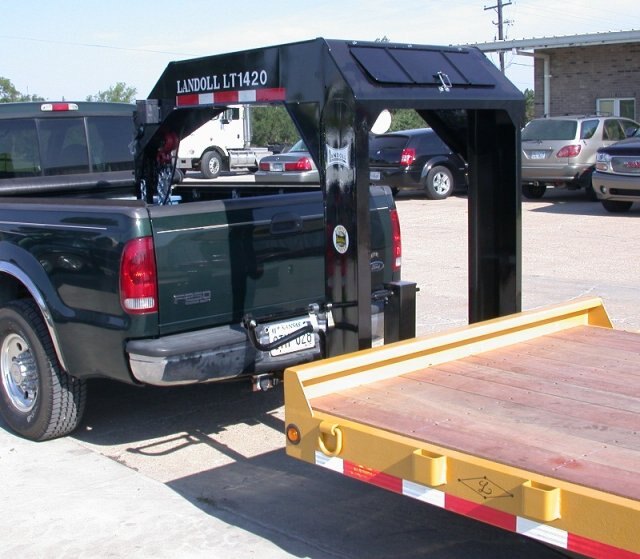

• Hitch:  3" Pintle Eye, 12" Vertical Height Adjustment, 15,000 lb. Capacity
• Tool Box  Under Deck
• Decking:  2" CA-B Copper Azole Treated Pine
• Deck Height (Loaded):  22" Loaded
• Width:  82-1/2" Inside Fenders - 102" O.A.
• Length:  20' Tilt Deck
• Load Angle:  12.1°

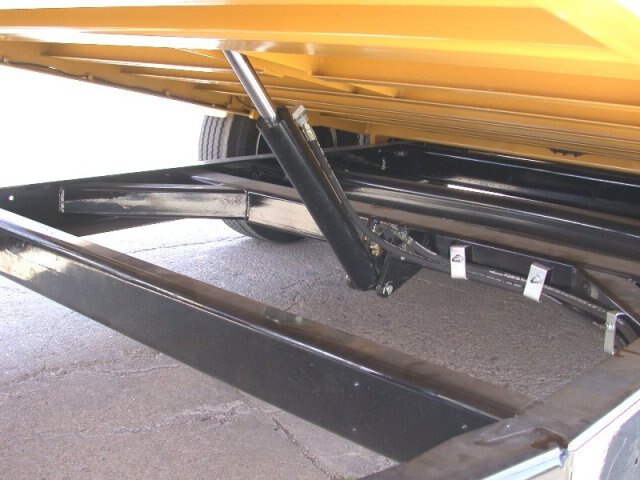

• Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder with Tilt Control System
• Approach:  Full Width Landoll Traction Plate
• Lock Down:  Positive Over Center
• Lights:  Sealed Beam - per I.C.C. and Federal Regulations
• Electrical:  6 Pole Electric Plug - Wiring in Conduit
• Fenders:  14 Gauge Cold Roll Formed with Back (82-1/2" in Between)
• Running Boards:  16 Gauge - Cold Roll Formed with Anti-Skid Tape
• Tie Rings:  5/8" D-Rings (4)
• Stake Pockets:  4 per Side
• Safety Chains:  3/8" x 35" - G70 Chain
• Break-Away Kit:  with Gel Cel Chargeable Battery and Box
• Finish:  Your Choice: White, Black or Yellow Non-Fading, Scratch and Chip Resistant Powder Coat
• Decals:  Hi-Visibility Reflective Package

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.
