Overview

12,000 Tilt Tag with 4' Stationary Deck

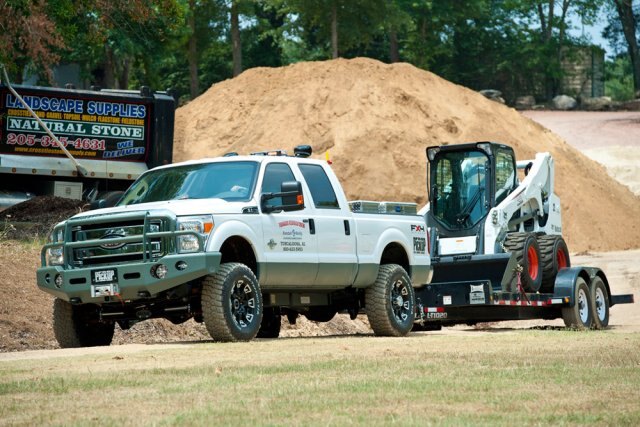

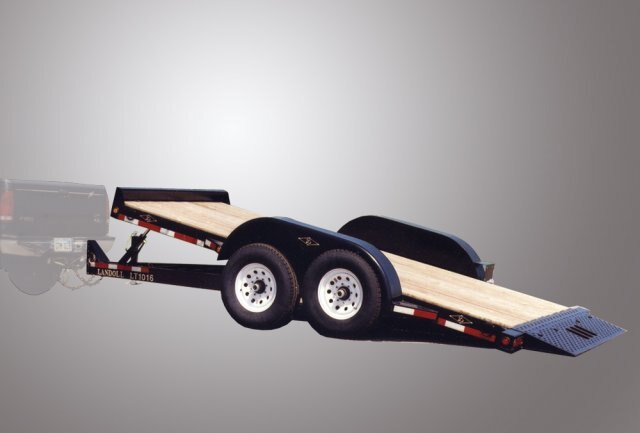

The Model LT1216+4 trailer is as 12,000 lb. capacity tilting tag trailer designed to haul light construction and landscaping equipment. The LT 1216+4 features a 16' tilt deck plus a 4' stationary deck for attachments, pallets, or supplies. A cushion cylinder tilts the deck for easy loading and unloading, and a heavy duty bed lockdown secures the bed in transport position. The approach plate is exclusive machined Landoll traction plate with four keyhole tie downs.
  Features
  • *Load Capacity:  12,000 lbs.
  • G.V.W.R.  15,700 lbs.
  • Estimated Base Weight:  3,700 lbs.
  • Main Frame:  6" Channel
  • Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
  • Jacks:  7,000 lb. Top Crank Bull Dog
  • Tires:  235/80R 16LRE
  • Wheels:  Steel Wheels - 16.5x6.75 - 8-Bolt
  • Axles:  2 - 7,000 lb. EZ Lubes
  • Suspension:  Torflex Axles
  • Brakes:  12" x 2" Electric Brakes (Both Axles)

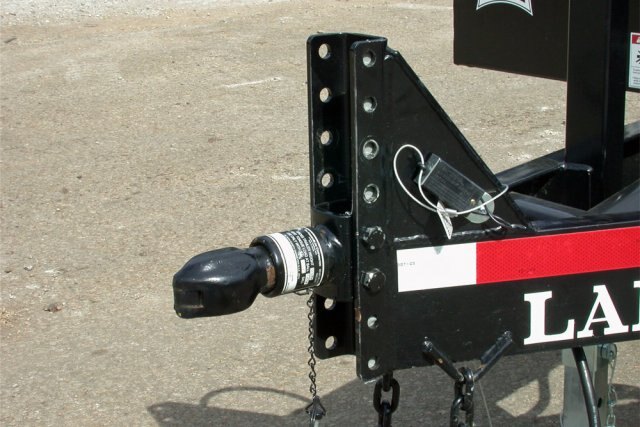

  • Hitch:  Your Choice: 2-5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment - 12,000 lb. Capacity
  • Tool Box:  Under Deck
  • Decking:  2" CA-B Copper Azole Treated Pine
  • Deck Height (Loaded):  22"
  • Width:  80" Inside Fenders - 102" O.A.
  • Length:  16' Tilt Deck + 4' Stationary
  • Load Angle:  11.4°

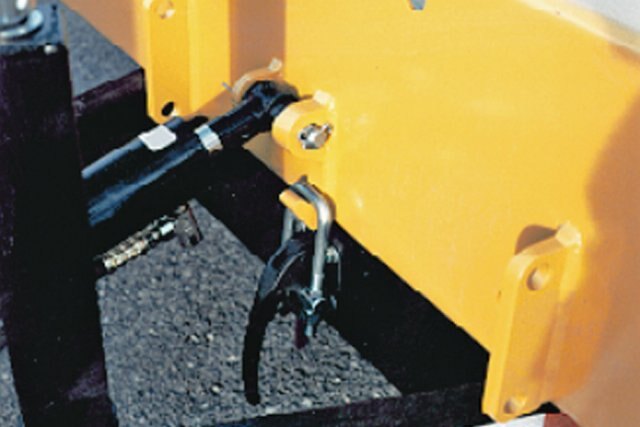

  • Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder

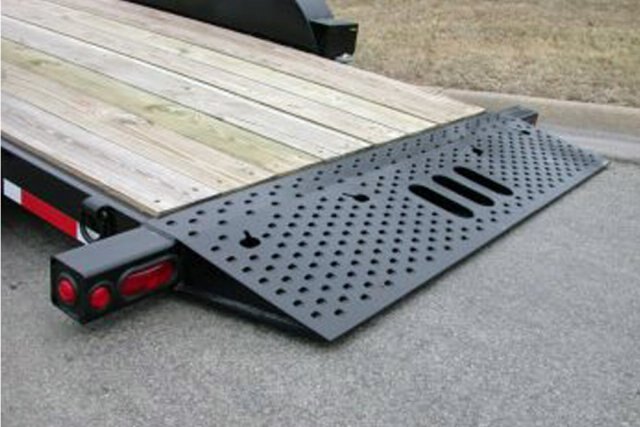

  • Approach:  Full Width Landoll Traction Plate
  • Lock Down:  Positive Over Center
  • Lights:  Sealed Beam - per I.C.C. and Federal Regulations
  • Electrical:  6-Pole Electric Plug - Wiring in Conduit

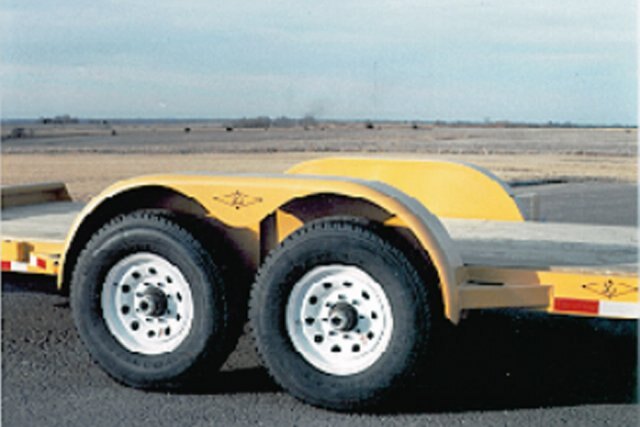

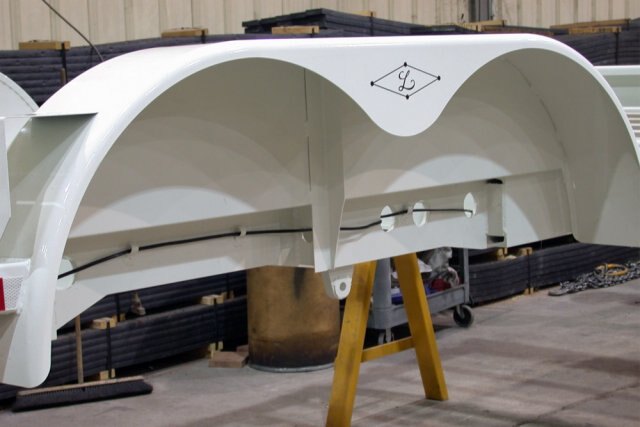

  • Fenders:  14 Gauge - Cold Rolled Formed with Back
  • Running Boards:  16 Gauge - Cold Roll Formed with Anti-Skid Tape
  • Tie Rings:  5/8" D-Rings (6)
  • Stake Pockets:  4 per Side

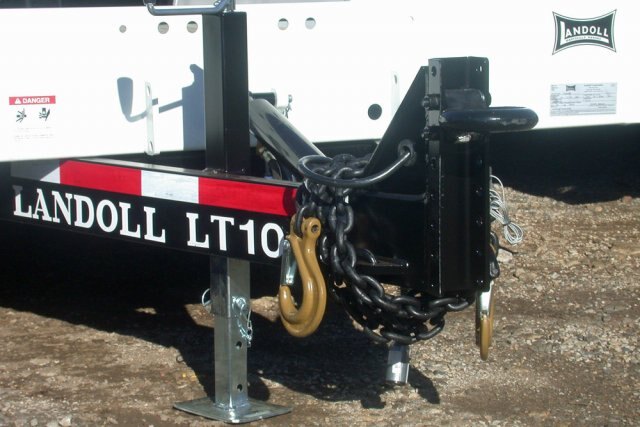

  • Safety Chains:  3/8" x 35" G70 Chain with GelCel Chargeable Battery and Box
  • Finish:  Your Choice: White, Black or Yellow Non-Fading, Scratch & Chip Resistant Powder Coat Paint
  • Decals:  Hi-Visibility Reflective Package

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
LT1216+4
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
12,000 lbs.
BASE WEIGHT
xxxx
DECK
102
AXLES
2
TIRES & PLY RATING
235/80R 16LR E
