ID # 13348462

Landoll 305D-B-35

  • Landoll 305D B 35
  • Landoll 305D B 35
  • Landoll 305D B 35
  • Landoll 305D B 35
  • Landoll 305D B 35
  • Landoll 305D B 35
  • Landoll 305D B 35
  • Landoll 305D B 35
  • Landoll 305D B 35
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

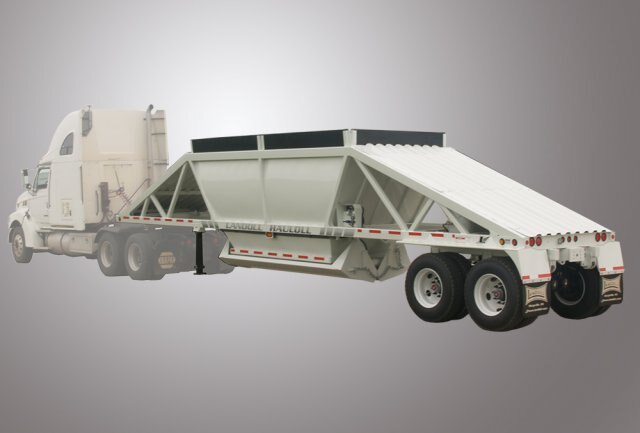

Minimize Weight - Maximize Payload

With an empty weight of just 12,945 lbs. and a load capacity of up to 24 tons, the 305D Ultralite bottom dumps are a profitable investment. A rounded barrel-shape hopper design providing inherent strength eliminates the need for all but one stiffener making for a lighter weight trailer. The 21 cubic yard hopper capacity can be increased to 24 cubic yards with the additional sideboards and brackets.  The 305D is a triple axle bottom dump.

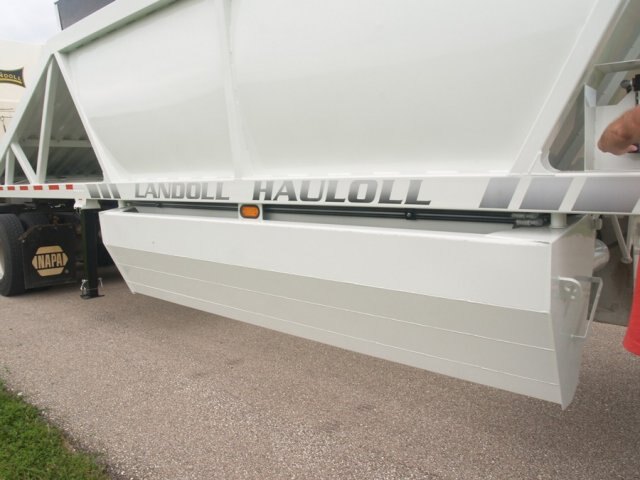

Unique Gates

All 305D trailers are equipped with air-operated double clamshell windrow gates. With high-speed 7" cylinders these unique gates open faster, easier and with less outward tub-wall pressure that conventional flat-bottom gates. Rocking king pin bolsters that absorb and spread out load torque. Spring suspension is standard but an optional neway air ride suspension is available.
  Features
  • *Capacity: 21 Cubic Yards
  • Estimated Base Weight: 12,945 lbs. (39'1")
  • Main Frame: Tubular Trust Design
  • Target Area: 16'L x 88"W
  • Height: 8'9"

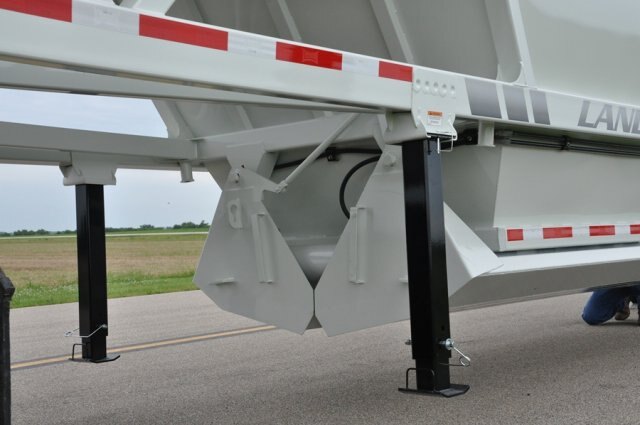

  • Parking Stands: Gate Mounted
  • Tires: 11R 22.5 Radial LRG Double Coin
  • Wheels: Hub Pilot 10-Hole Disc Steel
  • Hubs: Steel Hubs / Outboard Brake Drums

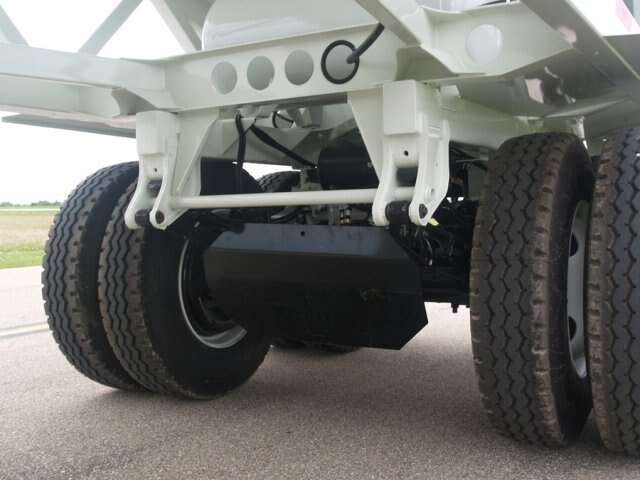

  • Axles: 3 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: 6-Spring 3 Leaf
  • Brakes: 16.5x7 Full Air / Spring Brakes ABS, 4S2M / Center Axle Indirect
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 18"
  • Swing Clearance: 102"
  • Width: 96"

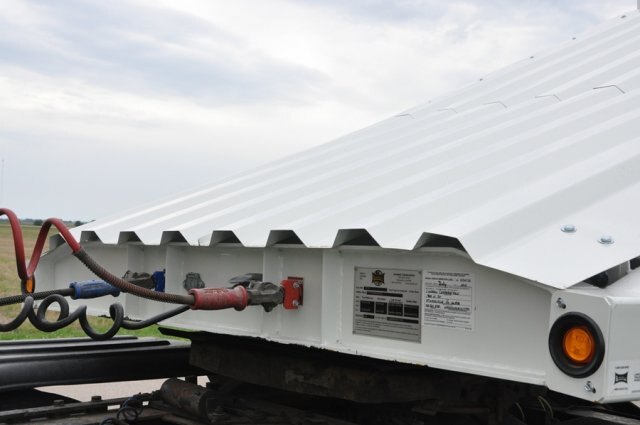

  • Air / Electrical: Glad Hands / 7-Way Receptacle
  • Lights: Sealed, Potted, "LED", Grommet Mounted with Sealed Wiring Harness
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package

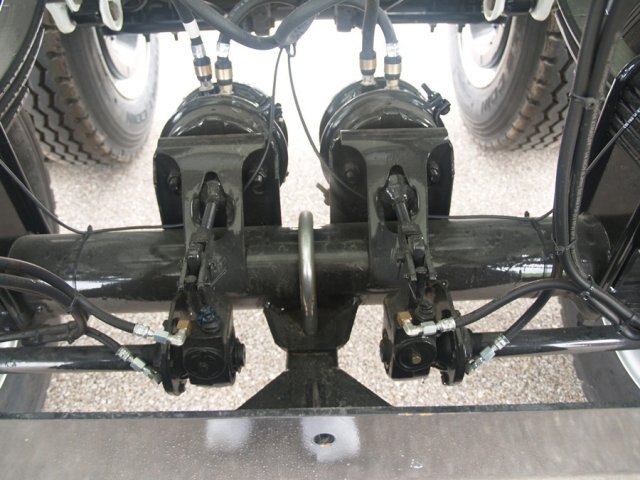

  • Air Cylinders: 2 - 7" Bore x 30" Stroke
  • Gate Air Reservoir Capacity: 60 Gallon
  • Gates: Single Air Operated Windrow Type 58" x 117" Opening
  • Hitch: Fifth-Wheel Kingpin with Lateral Rocking Type Plate

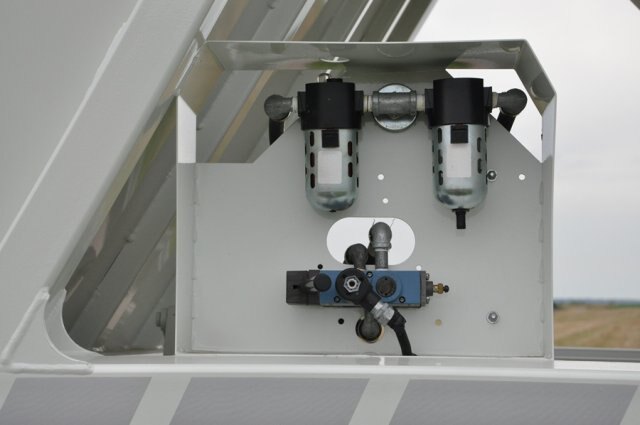

  • Accessories: Weld on Full Rear Fenders with Mud Flaps, Air Line Lubricator, Water Separator, Manual Gate Control Valve, Auto Slack Adjusters, Hitch Mounting Bracket

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
305D-B-35
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
21 Cu. Yds.
DECK
35'
AXLES
3
TIRES & PLY RATING
(12) 11R 22.5 Radial LRG
GATES
Single Gates
