ID # 13348460

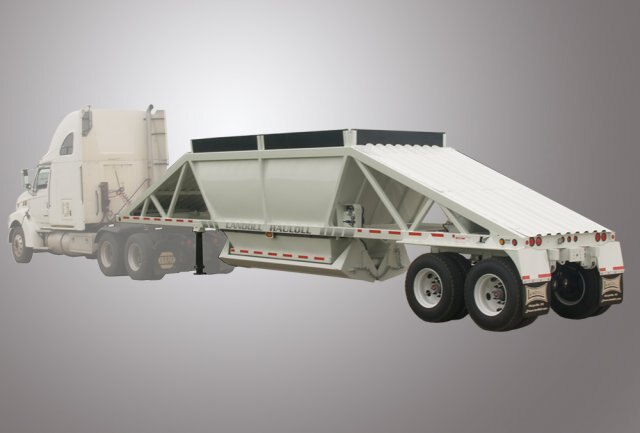

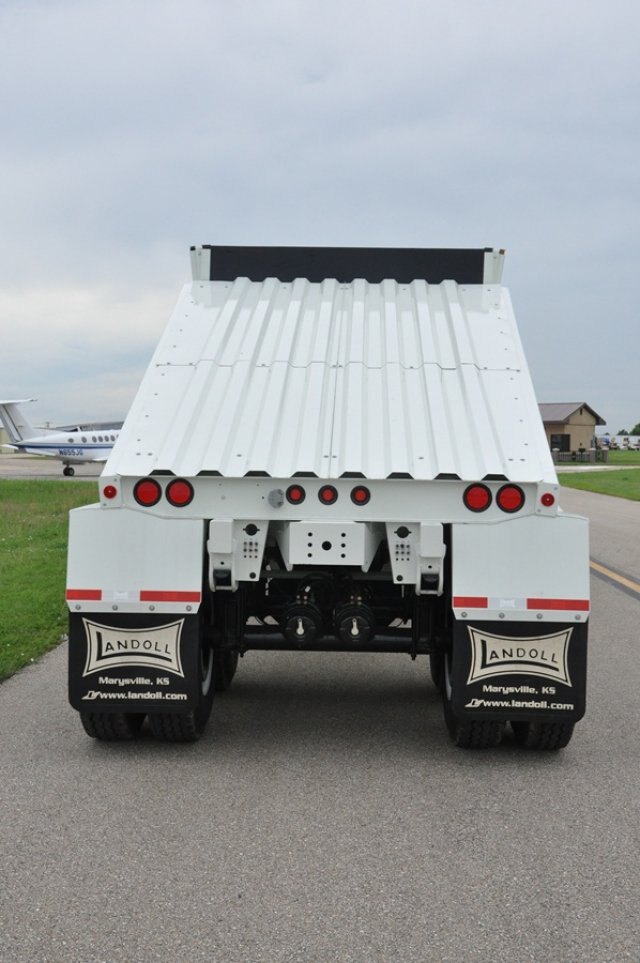

Landoll 302D-B-43

  • Landoll 302D B 43
  • Landoll 302D B 43
  • Landoll 302D B 43
  • Landoll 302D B 43
  • Landoll 302D B 43
  • Landoll 302D B 43
  • Landoll 302D B 43
  • Landoll 302D B 43
  • Landoll 302D B 43
  • Landoll 302D B 43
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Minimize Weight - Maximize Payload

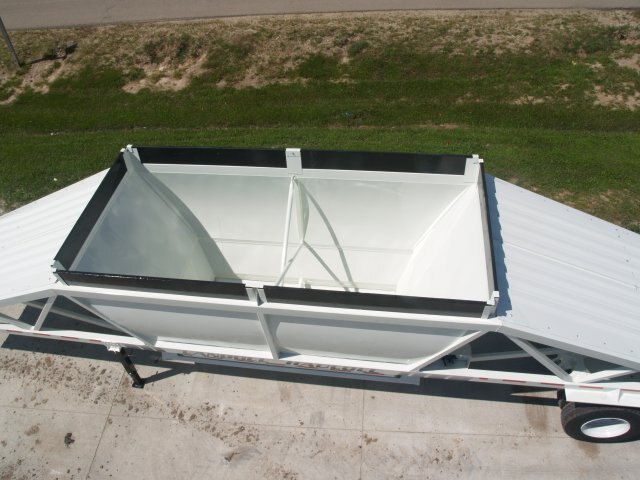

With an empty weight of just 11,350 lbs. and a load capacity of up to 24 tons, the 302D Ultralite bottom dumps are a profitable investment.  A rounded barrel-shape hopper design providing inherent strength eliminates the need for all but one stiffener making for a lighter weight trailer.  The 21 cubic yard hopper capacity can be increased to 24 cubic yards with the additional sideboards and brackets.

Unique Gates

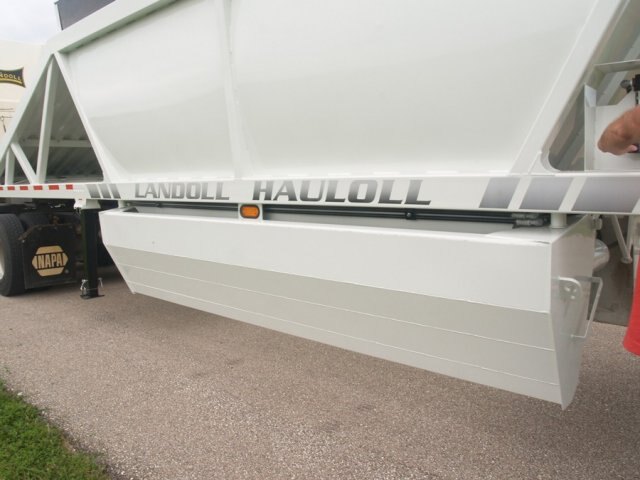

All 302D trailers are equipped with air-operated double clamshell windrow gates.  With high-speed 7" cylinders these unique gates open faster, easier and with less outward tub-wall pressure than conventional flat-bottom gates.  Rocking king pin bolsters that absorb and spread out load torque.  Spring suspension is standard but an optional neway air ride suspension is available.
  Features
  • Capacity: Single Hopper Ultralite Series Bottom Dump
  • *Capacity: 21 Cubic Yards
  • Estimated Base Weight: 11,350 lbs.
  • Main Frame: Tubular Trust Design
  • Target Area: 16'6"L x 88"W
  • Height: 9'4"

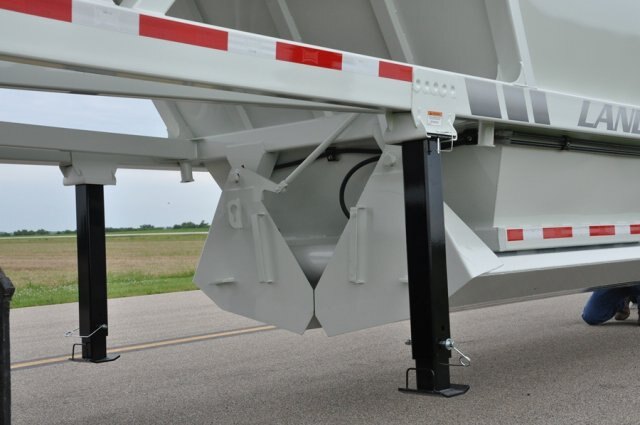

  • Parking Stands: Gate Mounted
  • Tires: 11R 22.5 Radial LRG Double Coin
  • Wheels: Hub Pilot 10-Hole Disc Steel
  • Hubs: Steel Hubs / Outboard Brake Drums

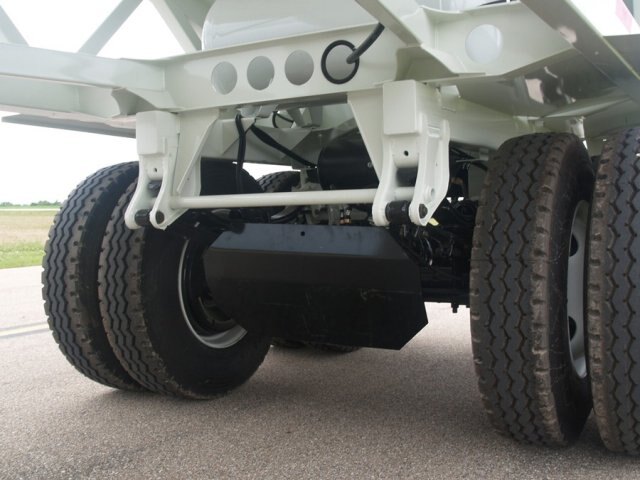

  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: 4-Spring 3 Leaf

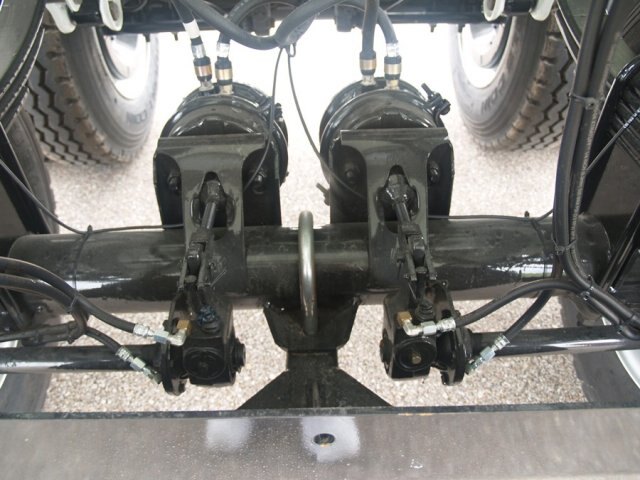

  • Brakes: 16.5x7 Full Air / Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 18"
  • Swing Clearance: 102"
  • Width: 96"

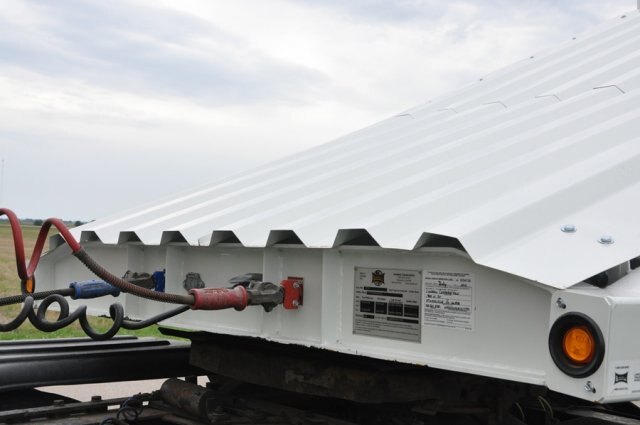

  • Air / Electrical: Glad Hands / 7-Way Receptacle
  • Lights: Sealed, Potted, "LED", Grommet Mounted with Sealed Wiring Harness
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Air Cylinders: 2 - 7"Bore x 30" Stroke
  • Decals: Hi-Visibility Reflective Package
  • Gates Air Reservoir Cap: 60 Gallon
  • Gates: Single Air Operated Windrow Type 53" x 117-1/2'' Opening
  • Hitch: Fifth-Wheel Kingpin with Lateral Rocking Type Plate

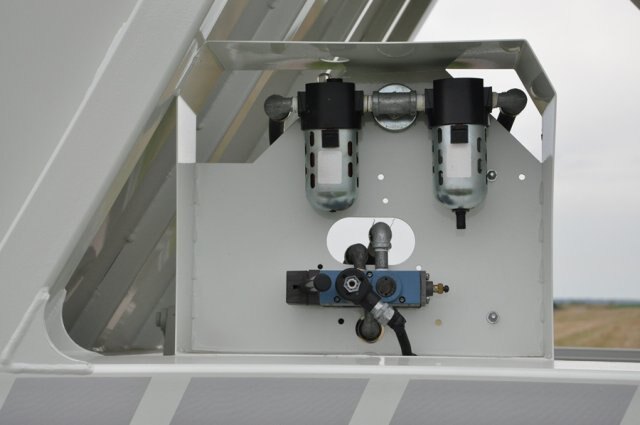

  • Accessories: Weld on Full Rear Fenders with Mud Flaps, Air Line Lubricator, Water Separator, Manual Gate Control Valve, Auto Slack Adjustors, Hitch Mounting Bracket

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
302D-B-43
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
21 Cu. Yds.
DECK
43'
AXLES
2
TIRES & PLY RATING
(8) 11R 22.5 Radial LRG
GATES
Single Gates
