ID # 13348456

Landoll 302C-B

  • Landoll 302C B
  • Landoll 302C B
  • Landoll 302C B
  • Landoll 302C B
  • Landoll 302C B
  • Landoll 302C B
  • Landoll 302C B
  • Landoll 302C B
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

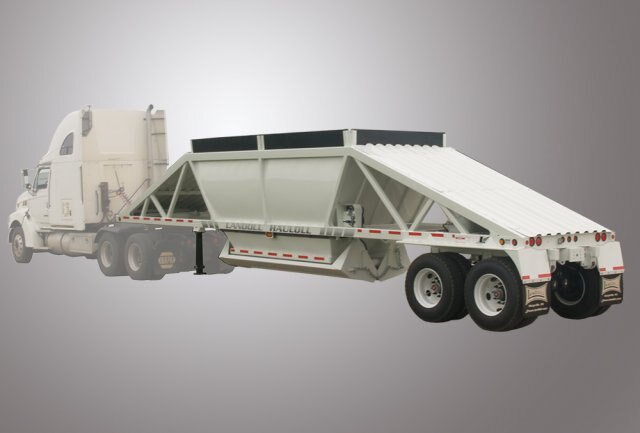

Tandem Axle Steel Bottom Dump

The Landoll Model 302C tandem axle bottom dump features a large 21 cubic yd. capacity.  The single hopper trailer is equipped with single air-operated windrow style gates, full air spring brakes, bolt on full rear fenders with mud flaps, auto slack adjusters and manual gate control valve.

Standard Features Powder Coat Paint

Landoll bottom dump trailers are manufactured to be lightweight yet rugged.  For durability in paint finish, Landoll bottom dump trailers feature standard zinc-rich powder primer and powder coat paint finish.
  Features
  • *Capacity: 21 Cubic Yards
  • Capacity: Single Hopper Standard Weight Bottom Dump
  • Estimated Base Weight: 13,950 lbs.
  • Main Frame: Tubular Trust Design
  • Target Area: 15'6"L x 88"W
  • Height: 9'4"
  • Parking Stands: Gate Mounted
  • Tires: 11R 22.5 Radial LRG Double Coin
  • Wheels: Hub Pilot 10-Hole Disc Steel
  • Hubs: Steel Hubs / Outboard Brake Drums
  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings

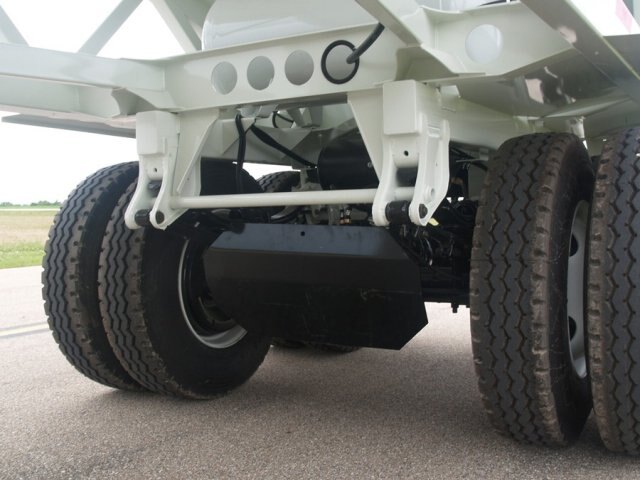

  • Suspension: Single Point 2-Spring 7-Leaf 44,000 lb. Capacity

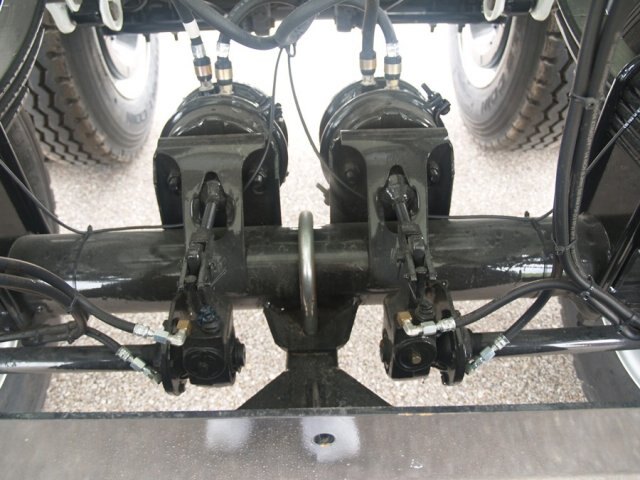

  • Brakes: 16.5x7 Full Air / Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 22"
  • Swing Clearance: 100"
  • Width: 96"
  • Air / Electrical: Glad Hands / 7-Way Receptacle
  • Lights: Sealed, Potted, "LED", Grommet Mounted with Sealed Wiring Harness
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Air Cylinders: 2 - 7" Bore x 30" Stroke
  • Decals: Hi-Visibility Reflective Package
  • Gate Air Reservoir Cap: 60 Gallon

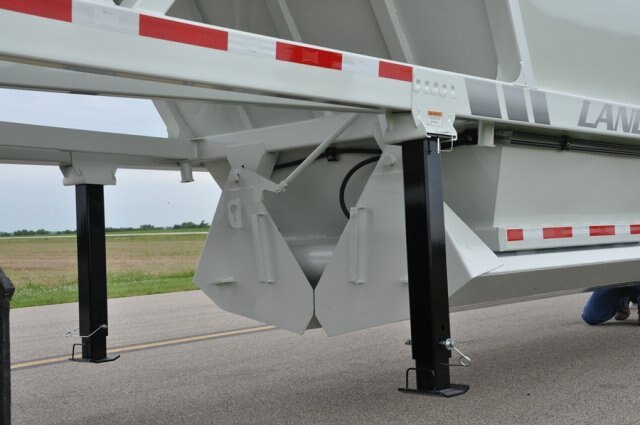

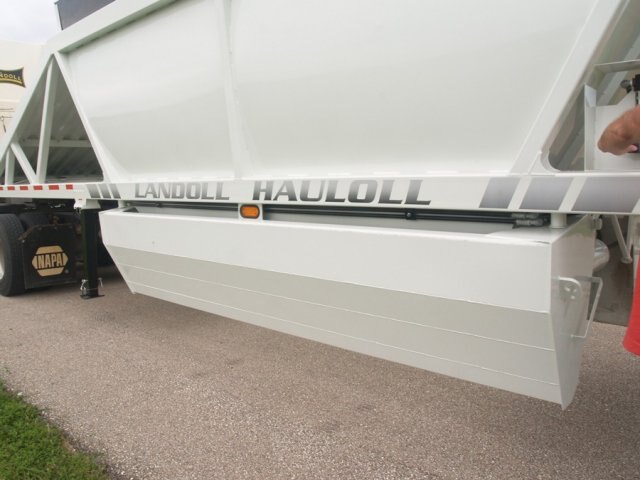

  • Gates: Single Air Operated Windrow Type 53" x 112" Opening
  • Hitch: Fifth-Wheel Kingpin with Lateral Rocking Type Plate

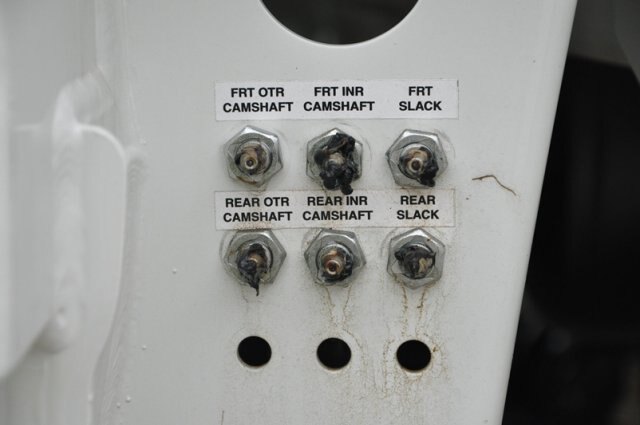

  • Accessories: Bolt-On Full Rear Fenders with Mud Flaps, Air Line Lubricator, Water Separator, Manual Gate Control Valve, Auto Slack Adjusters, Hitch Mounting Bracket

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
302C-B
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
21 Cu. Yd.
DECK
40' Single Gates
AXLES
2
TIRES & PLY RATING
(8) 11R 22.5 Radial LRG
GATES
Single Gates
