ID # 13347932

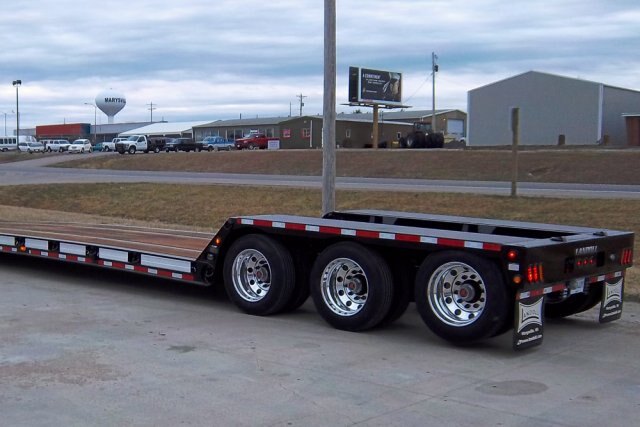

Landoll 835D-51AG

  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
  • Landoll 835D 51AG
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Proven Solutions Landoll_Trailer_Detach_835D-AG_LoadedFlipDown_270x160.jpg

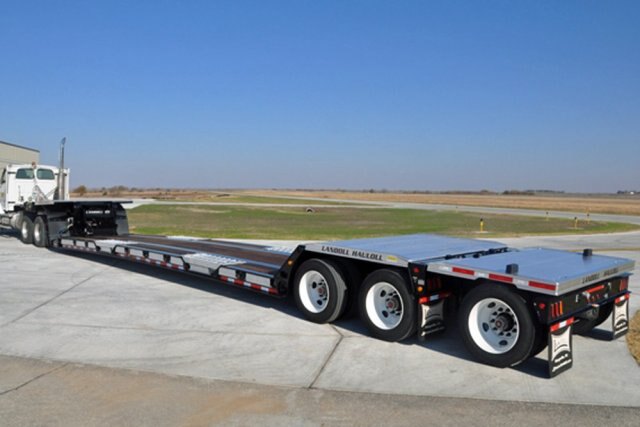

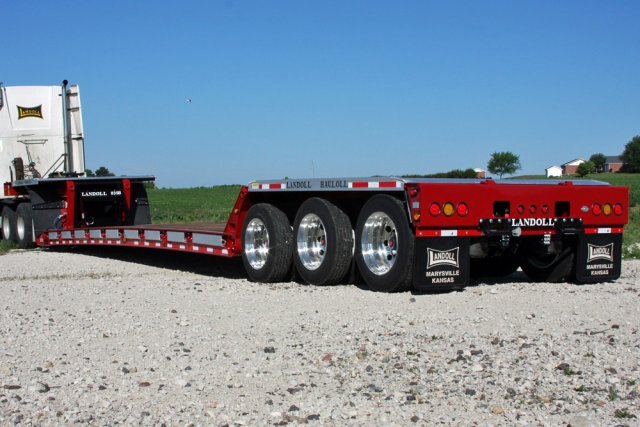

The 835 Series Ag Detachables are designed with an innovative four-beam frame and gooseneck which give the operator versatility required to safely load and legally transport today’s heavy, wide and tall equipment. The 835 can be a rigid 3-axle or be equipped with an optional flip third axle.

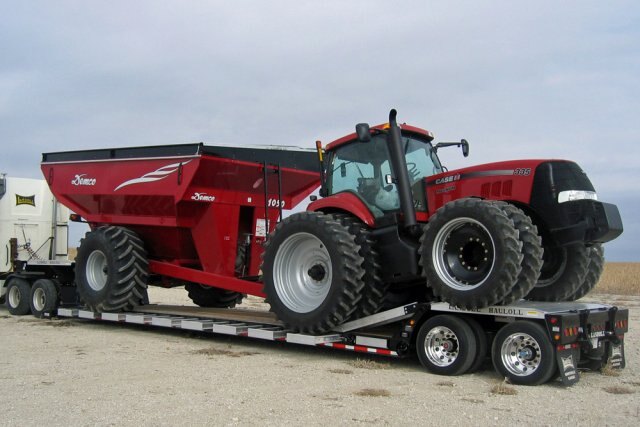

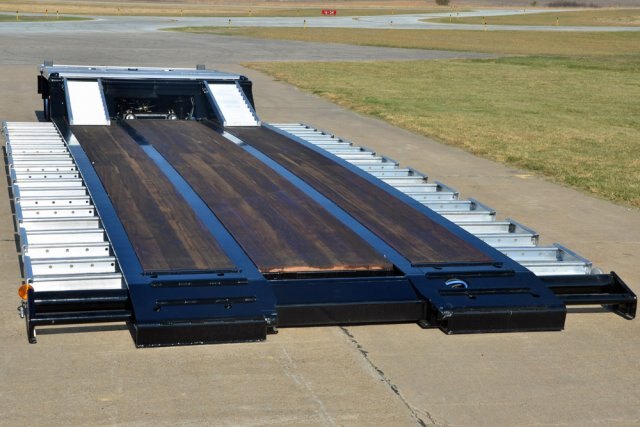

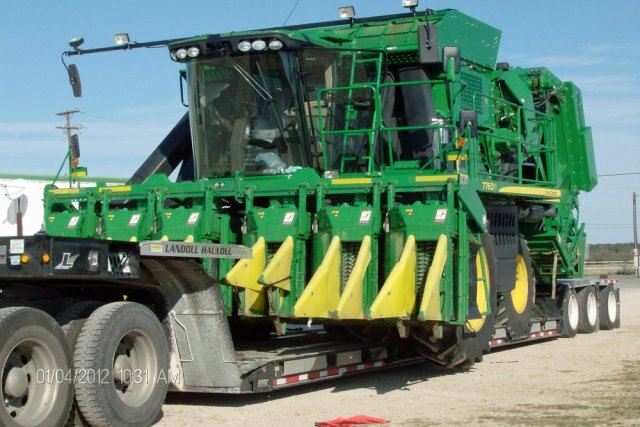

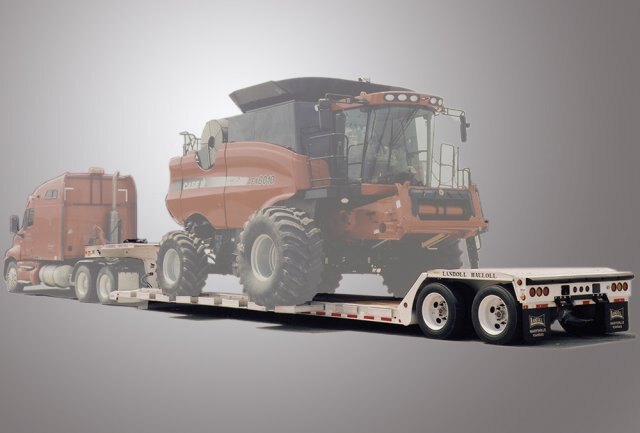

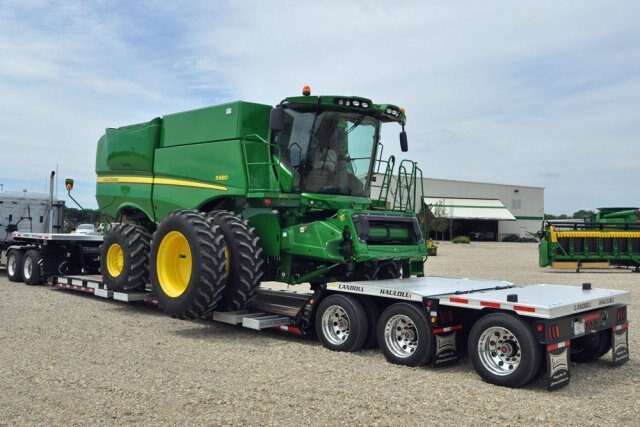

The 835Ag frame design features a flat deck with a loaded height of 18-1/4” off the ground. Coupled with a low tare weight, The 835 can haul the latest combines, tillage, haying equipment and planters with up to 32' of useable deck space.

Safety and Patented Gooseneck DesignLandoll_Trailer_Detachable_835D-AG_Gooseneck_270x160.jpg

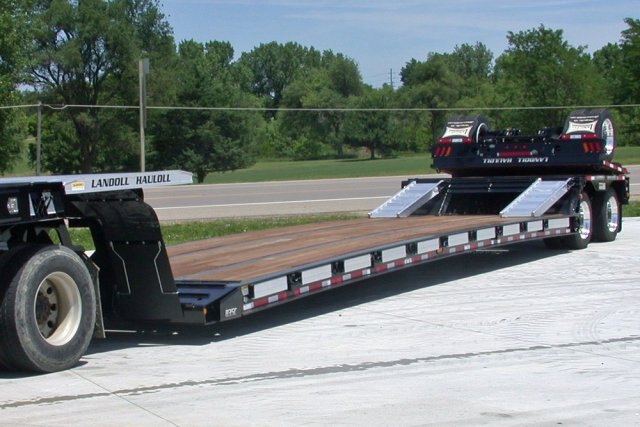

A single hydraulic control lever lowers, detaches and activates the patented gooseneck carrier arms, which allows the ease and simplicity of detaching and loading directly onto the lower deck which is only 11¼” off the ground. You will never have to drive up and over the trunnion again.
  Features
  • *Capacity: 35 Tons
  • Deck Rating: 60,000 lbs. in 12'
  • Estimated Base Weight: 18,900 lbs., (835AG) +/- 3%
  • Main Frame: Fabricated 11-1/4" Beam, 100,000 PSI Yield Flanges
  • Crossmembers: 5" x 3" Rec. Tube on 18" Centers
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5x8.25 Steel
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 25,000 lb. Capacity
  • Suspension: Neway Air Ride 25,000 lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes on Both Axles, ABS 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 15"
  • Swing Clearance: 84"
  • Loaded Ground Clearance:   Inches
  • Loaded Deck Height: 18-1/4"
  • Width:  102"
  • Decking: 1-1/2" Apitong, Full Width
  • Side Extension: 27" Aluminum Pullouts (Lower Deck)
  • Gooseneck: 12'
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 17 GPM
  • Gooseneck Tie Downs: D-Rings: 2 Each at Front Corner; 2 Each at Back
  • Lower Deck Tie Downs: Side Mounted Nylon Strap / Chain Tie Downs; Side Mounted D-Rings on 36" Centers
  • Rear Trunnion Tie Downs: D-Rings: 2 Each at Base Flush Mounted on Top of Inner Beams; 2 Each Web Mounted on Top; 2 Each Rear Flush Mounted on Top of Inner Beams; 2 Each Top of Slope (Outer Web)
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color:  White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package
  • Tool Box: None Standard
  • Cylinders:  2 - 6" x 30" Horizontal Mount 70,000 lb. Capacity Each, Centralized Grease System, Powder Coat Black
  • Hitch: Patented Automatic Gooseneck Lock Engagement
  • Accessories:  835AG - 48', 51' or 53' Frame Prepared with Bkts, Electric and Air for 3rd Axle Flip

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
835D-53AG
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
35 Ton
BASE WEIGHT
19,800 lbs.
DECK
32''
AXLES
2
TIRES & PLY RATING
(8) 255/70R 22.5 LRH
