ID # 13346461

Landoll 326

  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
  • Landoll 326
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

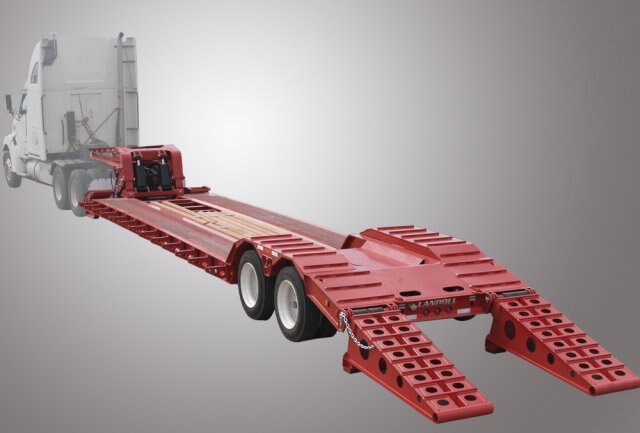

35 Ton Non-Ground Bearing Detachable

The 326 tandem axle 35 ton detachable can haul your loads safely and effectively.  Manufactured with high tensile strength steel and high quality components, the lightweight Model 326 will last the long haul while retaining its' resale value.  The 326 can be dressed up with options or just keep is simple, clean and just go to work.

Design

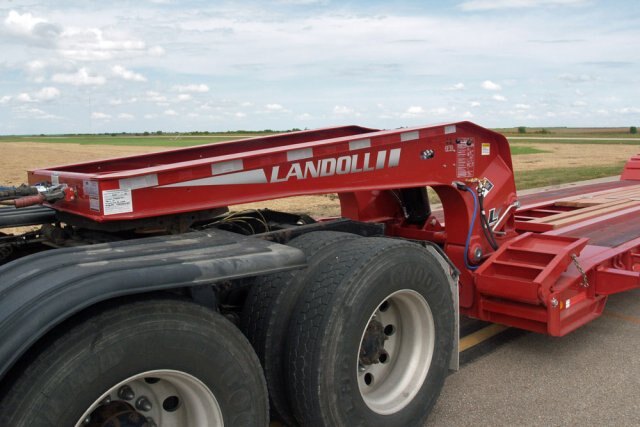

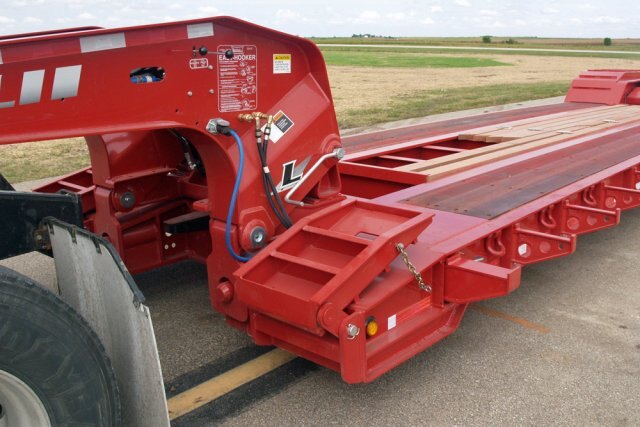

Landoll's detachable gooseneck is second to none in the problem solving category.  The rugged scraper style gooseneck with vertical lift cylinders and Landoll's unique fifth wheels lock assembly has the ability to get you hooked up at the roughest job site and on the road.
  Features
  • *Capacity: 35 Tons
  • Deck Rating: 70,000 lbs. in 16'
  • Estimated Base Weight: 13,250 lbs. (44')
  • Main Frame: Fabricated 16", 100,000 PSI Flange
  • Crossmembers: 8" High Tensile I-Beams on 24" Centers
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5x7.50
  • Wheels: Hub Pilot / Steel Outboard Brake Drums

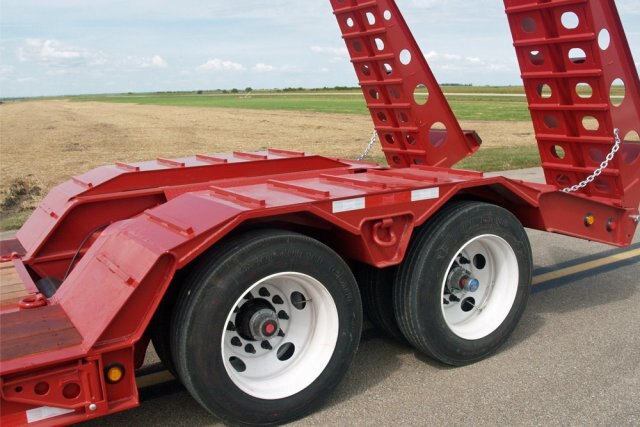

  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Neway Air / Ride (AR80) Yoke lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes (Rear Axle Only) ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 15"
  • Swing Clearance: 84"
  • Loaded Ground Clearance: 8"
  • Loaded Deck Height: 24"
  • Width: 102"

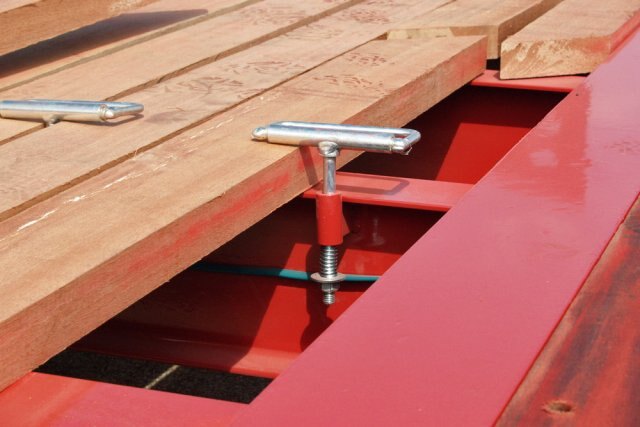

  • Decking: 2" Nominal, Apitong Track Area
  • Gooseneck: 10' 7"
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 17 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green

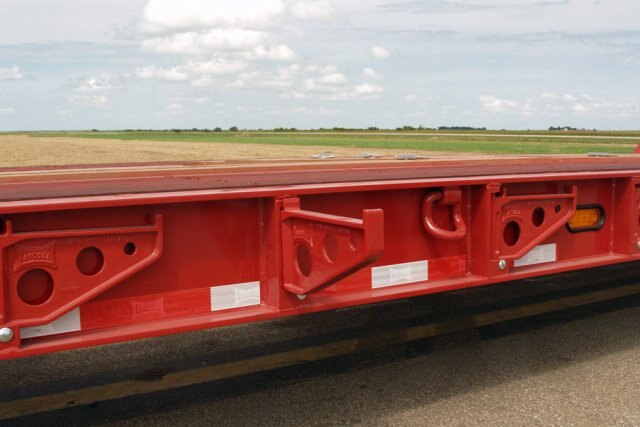

  • Tie Downs: 8 "D" Rings
  • Decals: Hi-Visibility Reflective Package
  • Tool Box: 41"W x 24"L x 10"D Between Main Frame

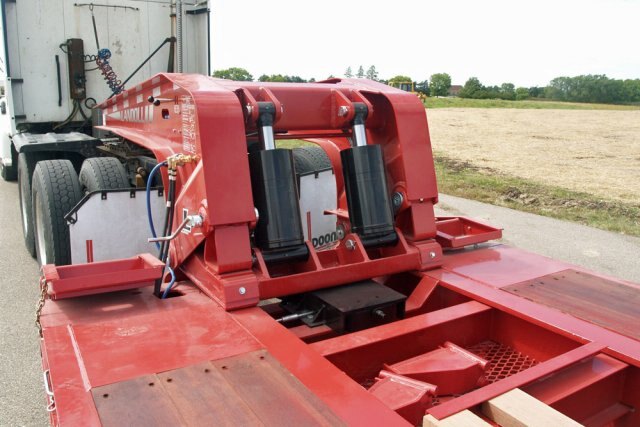

  • Cylinders: 2 - 8" x 8" Vertical Mount, Centralized Grease System, Powder Coated Black
  • Hitch: Fifth Wheel Kingpin

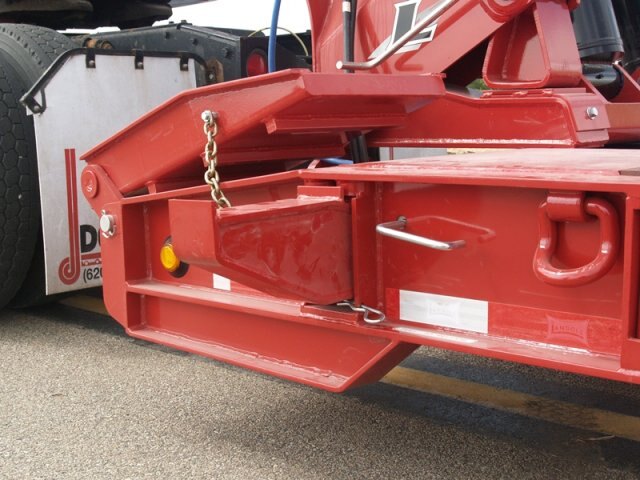

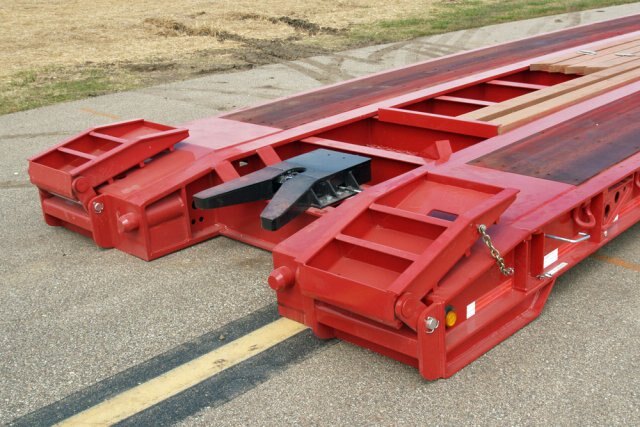

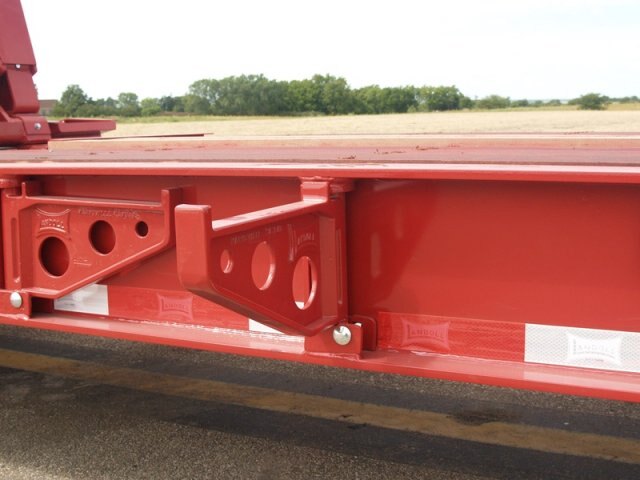

  • Accessories: Fifth Wheel Type Automatic Gooseneck Lock Engagement with Lock / Unlock Visual from Tractor Cab Ramp Brackets and Outrigger Brackets Front Bolsters Broom Trough Automatic Slack Adjusters Rail Stiffeners

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
326
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
35 Ton
BASE WEIGHT
13,250 lbs. +/- 3% (44')
DECK
24' Lower
AXLES
2
TIRES & PLY RATING
(8) 255/70R 22.5 LRH
