ID # 13346459

Landoll 325C-50

  • Landoll 325C 50
  • Landoll 325C 50
  • Landoll 325C 50
  • Landoll 325C 50
  • Landoll 325C 50
  • Landoll 325C 50
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Heavy Duty Detachable

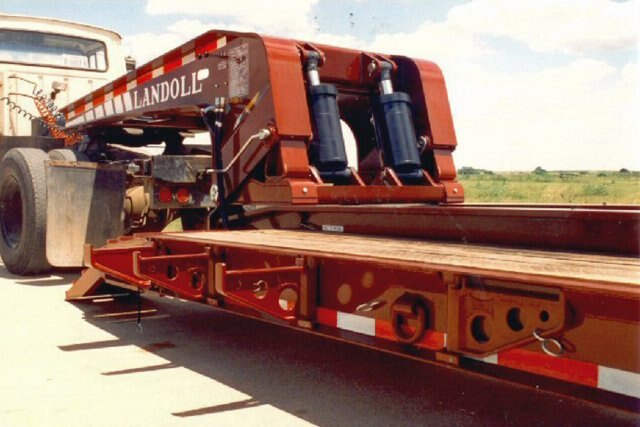

The Landoll 325 detachable is a 50 Ton non-ground bearing detachable with a fifth wheel type automatic gooseneck lock engagement.  The lock / unlock level can visually be seen from tractor cab.  A rugged low profile scraper style gooseneck with vertical lift cylinders has the ability to get you hooked up on the roughest of job sites or just out on the open road.

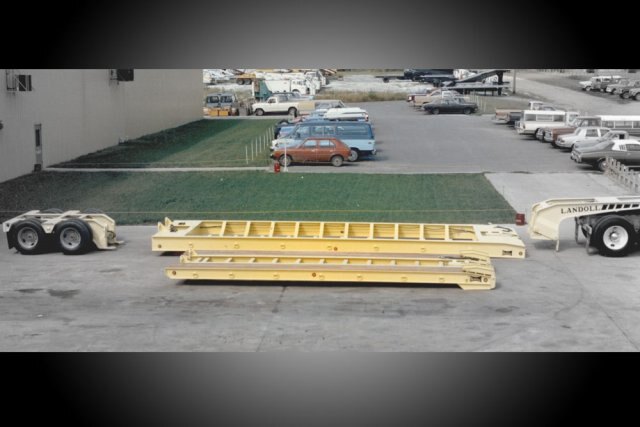

The 325 frame is a modular frame.  You can choose to keep the 325 as a rugged common three axle lowboy trailer or by choosing the options of a HD Gooseneck you can have up to 160” of swing for jeep applications or the removable trunnion allows you to select from deck extensions or beam decks.  The rear trunnion can accommodate flip axles for the extra heavy loads.

This 50 Ton frame is rated in 10’.  This concentrated rating is the shortest common rating out there.  Make sure you always check the number of feet a trailer is rated in.  A true sign of the frame strength.
  Features
  • *Capacity: 50 Ton
  • Deck Rating: 100,000 lbs. in 10'
  • Estimated Base Weight: 18,900 lbs. (48')
  • Main Frame: Fabricated 16", 100,000 PSI Flange
  • Crossmembers: 8" High Tensile I-Beams on 24" Centers
  • Tires: 255/70R 22.5 LRH DOUBLE COIN
  • Rims: 22.5x8.25
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 3 - 25,000 lb. Dual Tire, Oil Bath Bearings 49" Spacing
  • Suspension: Neway Air Ride (AR80) Yoke Mount 25,000 lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 15"
  • Swing Clearance: 84"
  • Loaded Ground Clearance: 8"
  • Loaded Deck Height: 24"
  • Width: 102"
  • Decking: 2" Nominal, Apitong Track Area - Gooseneck: 10' 7"
  • Air / Electrical: Glad Hand / 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 17GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Tie Downs: 10 "D" Rings
  • Decals:  Hi-Visibility Reflective Package
  • Tool Box:  41"W x 24"L x 10"D Between Main Frame
  • Cylinders: 2 - 9" x 8" Vertical Mount
  • Hitch: Fifth Wheel Kingpin
  • Accessories: Fifth Wheel Type Automatic Gooseneck Lock Engagement with Lock / Unlock Visual from Tractor Cab Automatic Slack Adjusters Rail Stiffeners; Centralized Grease System

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
325C-50
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
50 Ton
BASE WEIGHT
22,700 lbs. (+/- 3%)
DECK
26'x102''
AXLES
3
TIRES & PLY RATING
(12) 255/70R 22.5 LRH
