ID # 13346456

Landoll 340-46

  • Landoll 340 46
  • Landoll 340 46
  • Landoll 340 46
  • Landoll 340 46
  • Landoll 340 46
  • Landoll 340 46
  • Landoll 340 46
  • Landoll 340 46
  • Landoll 340 46
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

96" or 102" High Cube Container Trailer

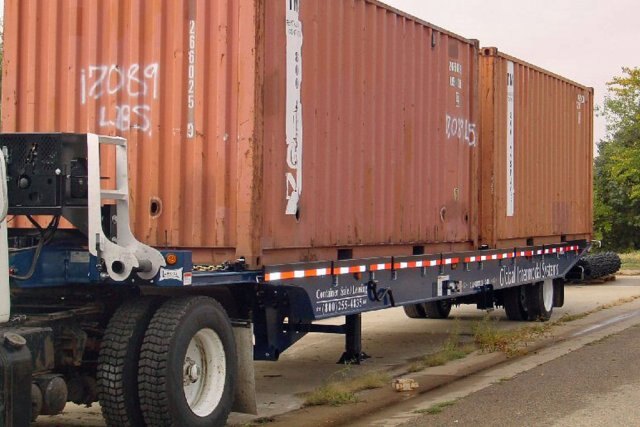

The Model 340 is  a hydraulic traveling axle trailer designed to haul standard, 96”, 102” or high cube storage containers.  The versatility of the 340 shows in its’ ability to haul 1- 40’; 2-20’; 1-45’; 1-48’ or 1-53’ (50’ trailer only).

Adjustable Outer Rails and Power On/Power Off

The 340 is equipped with standard adjustable outer rails for 96" or 102" containers and a power on/power off chain drive system as standard equipment.   Also standard is the container securement package for tie down of containers.
  Features
  • *Capacity:  11,800 lbs.
  • Deck Rating:  10,000 lbs. in 10'
  • Estimated Base Weight:  See Specs Above
  • Main Frame:  Fabricated 80,000 / 100,000 PSI Yield Beams
  • Crossmembers:  4" Jr. I-Beam on 12" Centers

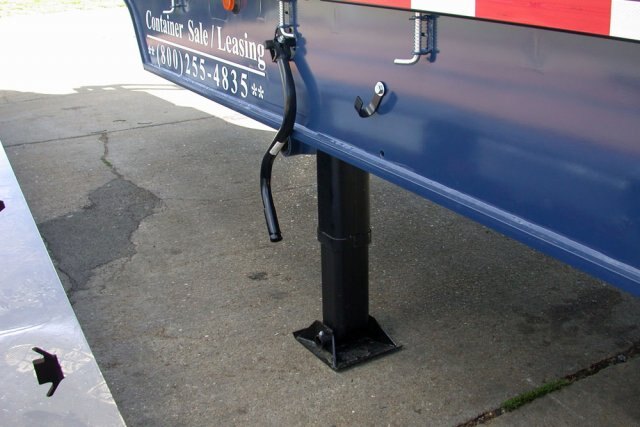

  • Parking Stands:  Jost Two-Speed
  • Tires:  255/70R 22.5 LRH Double Coin
  • Rims:  22.5x8.25 Tubeless
  • Wheels:  Hub Pilot Wheel / Steel Outboard Brake Drum
  • Axles:  1 - 25,000 lbs. Dual Tire, Oil Bath Bearings
  • Suspension:  Transpro Mono Leaf 22,000 lb. Capacity
  • Brakes:  16.5x7 Full Air / Spring Brakes, ABS 2S1M
  • Oil Seal Hubs:  Internal Mated Assembly
  • Pin Setting:  43" Set-Back, 75"CA Tractor Minimum; for 340-50, 18" Setting
  • Swing Clearance:  74" Rear and Forward Swing Clearance
  • Loaded Deck Height:  45" at Wheel Area
  • Width:  96" Base Width with 2-Position Side Extensions, Set for 96" or 102" Wide Containers

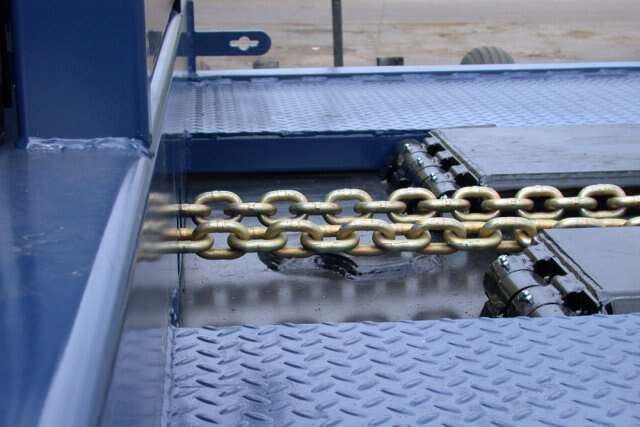

  • Decking:  1/8" Steel Tread Plate, 12" Wide Chain Trough - Full Length, 3/8" x 8" Wide Skid Plate
  • Air / Electrical:  7-Way Receptacle
  • Hydraulic Hook Up:  Quick Couplers 2500 PSI / 14 GPM
  • Hydraulic Operation:  Full Manual Controls and Full Function Remote by Hand Held Wireless Remote
  • Controls Lights:  Grote "SuperNova" LED - 10-Year Warranty
  • Finish:  Steel Grit Shot Blast to Bright Metal
  • Wiring Harness:  Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Powder Coat Color:  White / Black / Yellow / Blue / Red / Green

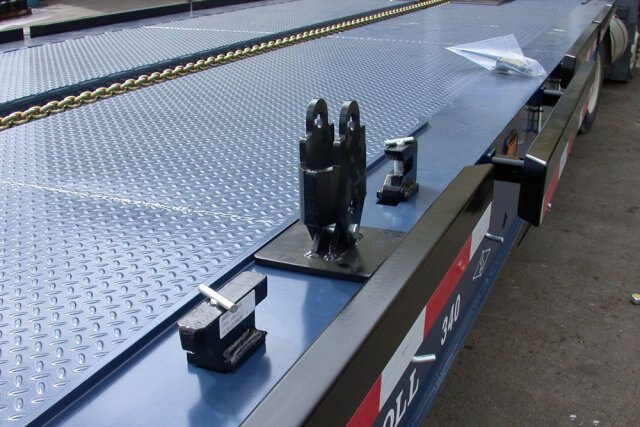

  • Tie Downs Front:  2 (Part # 128496) Chain Assembly Container Load Includes, 2 - Front Bridles, 2 - Front Container Lock Downs with Pins
  • Decals:  Hi-Visibility Reflective Package
  • Tie Downs Middle:  2 (Part # 127320) Double Container Stops with Pins (Hold Back of First 20' Container)

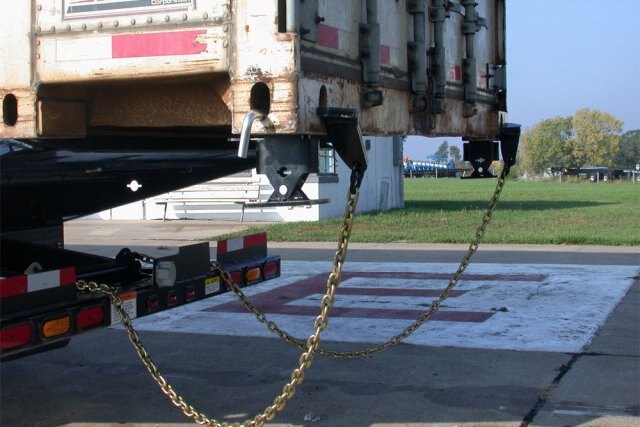

  • Tie Downs Rear:  1 (Part # 128469) Shoe Lock Tie Downs, (Locks Rear Container into the Approach Plate Tie Slots)
  • Tie Downs Rear:  2 - 7' Chain Anchored to Undercarriage with Load Binders
  • Container Handling:  1 (Part # 129210) Pusher Container Assembly (Much like a Dozer Blade, Push a Container On or Off the Trailer)
  • Tool Box:  Street Side (42"W x 28"D x 9"H) with Lockable door
  • Hydraulic Gear Box:  12,000 lb. Capacity Gear Box, Continuous Power Chain Drive Load System
  • Undercarriage:  Centralized Grease System
  • Accessories:  Front Mounted Aluminum Ladder with Grab Handle, Mid-Ship Mounted Step
  • Hydraulic Valve Body:  Prince Electronic

 *Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
340-46
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
11,800 lbs.
BASE WEIGHT
14,200 lbs. (+/- 3%)
DECK
96
AXLES
1
TIRES & PLY RATING
(4) 255/70R 22.5 LRH
