• *Capacity: 16,000 lbs.
• Deck Rating: 16,000 lbs. in 10'
• Estimated Base Weight: See Specs Above
• Main Frame: 30 lb. 10" Structural I-Beam
• Crossmembers: 2" x  2" Tube
• Slope Drop: 90°
• Parking Stands: Pin Drop
• Tires: 235/80R 16 LRE Mile Star Radials
• Wheels: 8-Hole Steel Budd Type Disc
• Axles: 2 - 10,000 lb. Tandem Duel Tire, Oil Bath Bearings
• Suspension: 5 Spring Multi Leaf
• Brakes: 12-1/4" x 4" Electric Brakes
• Oil Seal Hubs: Internal Mated Assembly
• Hitch: Gooseneck or 5' Pintle
• Pin Setting: 8-1/2"
• Swing Clearance: 78"
• Loaded Ground Clearance:  25"
• Loaded Deck Height: 38"
• Width: 102"
• Decking: 1-3/8" Apitong
• Air / Electrical: 7-Way Receptacle
• Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
• Lights: Grote "SuperNova" LED - 10-Year Warranty
• Finish: Steel Grit Shot Blast to Bright Metal
• Powder Coat Color: White / Black / Yellow / Blue / Red / Green
• Decals: Hi-Visibility Reflective Package
• Tie Downs: 4 - "P" Loops

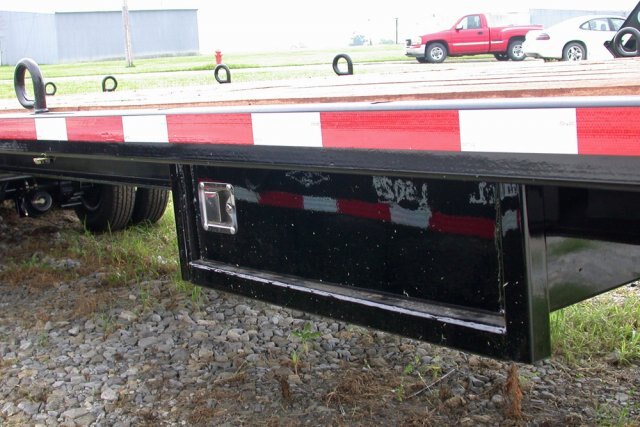

• Tool Box: Curbside (11"H x 22"D x 36"W) with Lockable Door
• Hydraulic Winch: Worm Gear 12,000 lb. with 85' of 1/2" Cable.
• Tilt Cylinders: 1 - 4" x 42" (G) or 2 - 4" x 24" (P)
• Undercarriage Cylinder: 1 - 4" x 126"
• Load Angle: 7°
• Accessories: Approach Plate with Four Keyhole Tie Downs

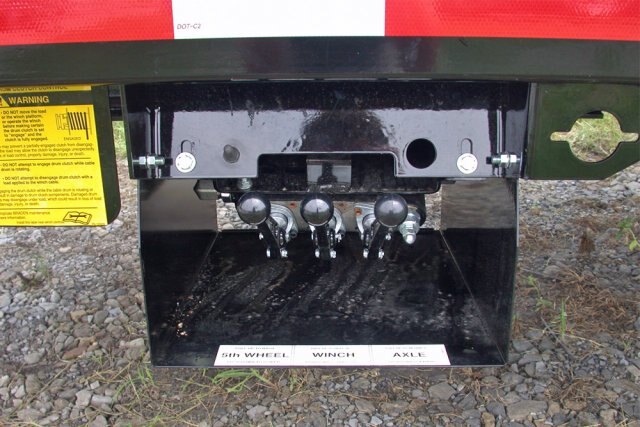

• Hydraulic Valve Body: Prince Valve

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.
