ID # 13345836

Landoll 455A-50

  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
  • Landoll 455A 50
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Stability with Top Performance and ManeuverabilityLandoll_Trailer_TravelingAxle_455_3Bendis_270x160.jpg

The Model 455 Traveling Axle trailer will handle heavy loads with triple axles and 55 ton capacity. Lengths available are 48’, 50’, 53’ and California legal 50’. To maximize the load capacity, the 455 is standard with a 60” axle spread.

Increased frame capacity is one of the outstanding features of the 455 along with wider main beams, wider undercarriage, wider tilt cylinder mounts and wider outer beam pivot points.  Buying a Landoll means you get the total package of super low load angle, ease and safety of operation, superior quality and the highest retained resale value in the market today.

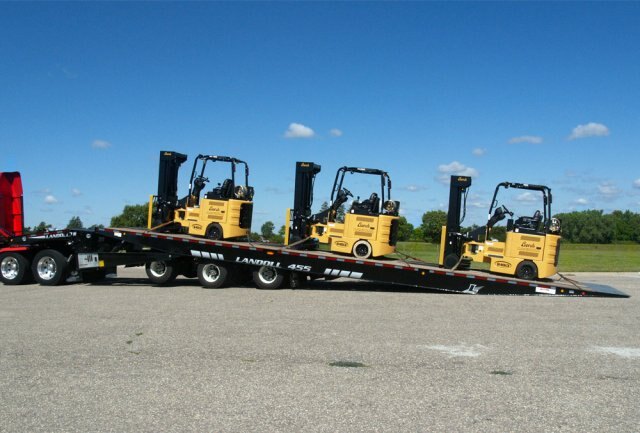

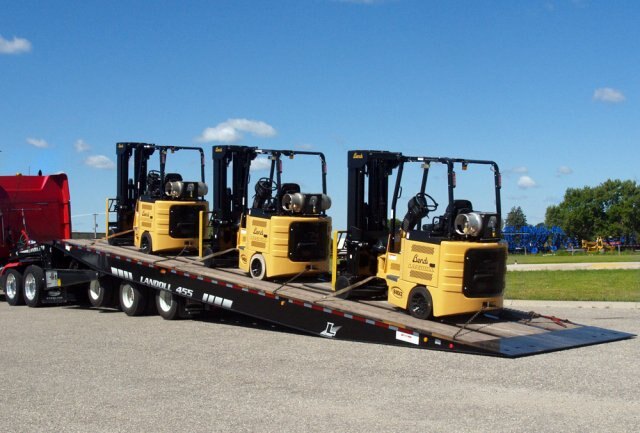

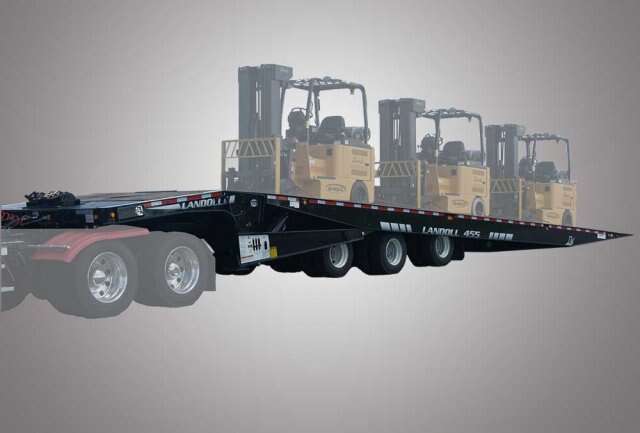

Low Clearance Upper Deck Transition Landoll_Trailers_TravelingAxle_440_300dpi_270x160.jpg

All 400 series trailers feature the super low clearance slope transition allowing manlifts, forklifts, and other difficult low clearance equipment to load easily on the upper deck.

Ultimate Stability Landoll_Trailer_TravelingAxle_455_NeckCropped_270x160.jpg

The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, and outer beam pivot points add superior stability while loading heavy loads.

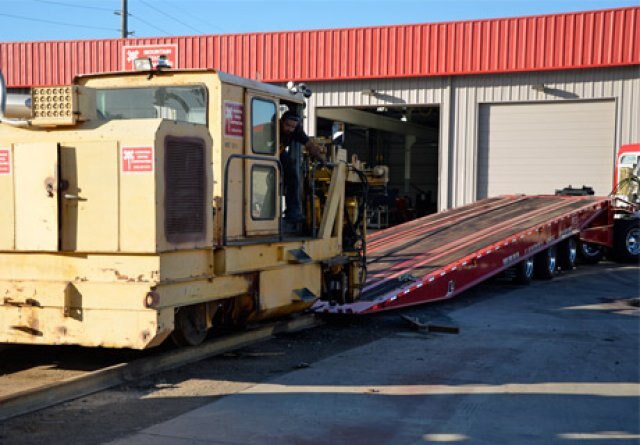

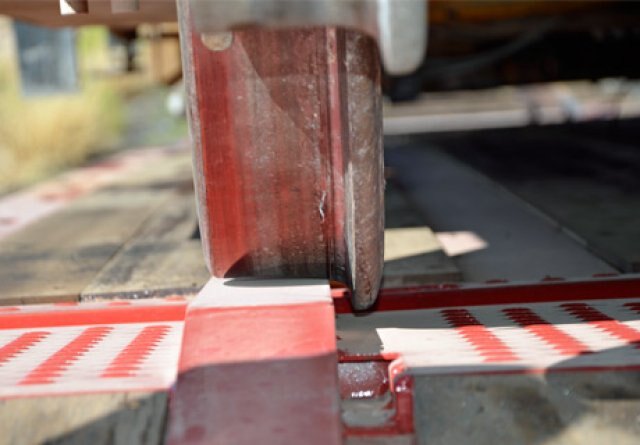

Railroad Track Option


The railroad track option is ideal for safely loading and transporting today’s rail maintenance equipment.  The Landoll approach plate sits down onto the rail to create a solid base and smooth transition from rail to trailer without ramps or heavy drop-in-rails, allowing operators to load these machines within minutes.



Powder Coat Paint

Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors.
  Features
  • *Capacity: 110,000 lbs.
  • Deck Rating: 70,000 lbs. in 10'
  • Estimated Base Weight: See Specs Above
  • Main Frame: Fabricated 80,000 and 100,000 PSI Yield, 40" Beam Centers
  • Crossmembers: 4" Junior I-Beam on 8" Centers
  • Slope Drop: 90°
  • Parking Stands: Jost Two-Speed
  • Tires: 235/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.5 Tubeless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 3 - 25,000 lb. Dual Tire, Oil Bath Bearings
  • Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity
  • Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M / Center Axle Indirect
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: Fifth Wheel Kingpin
  • Pin Setting: 21" Swing Clearance: 83.5"
  • Loaded Ground Clearance: 14" at Bottom of Gooseneck
  • Loaded Deck Height: 37"
  • Width: 102"
  • Decking: 1-3/8" Apitong Hardwood
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 20 GPM
  • Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal

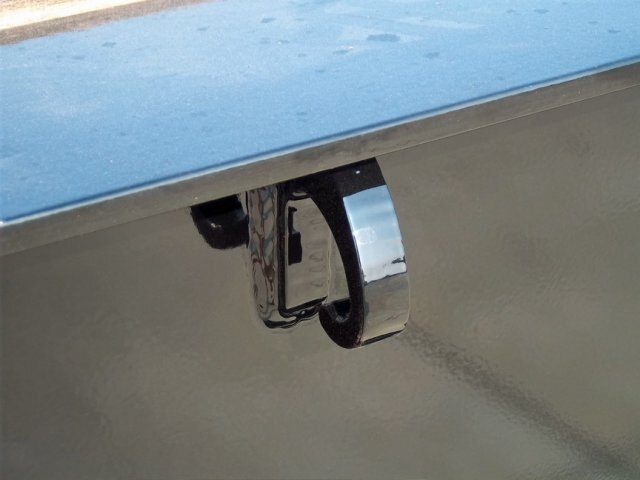

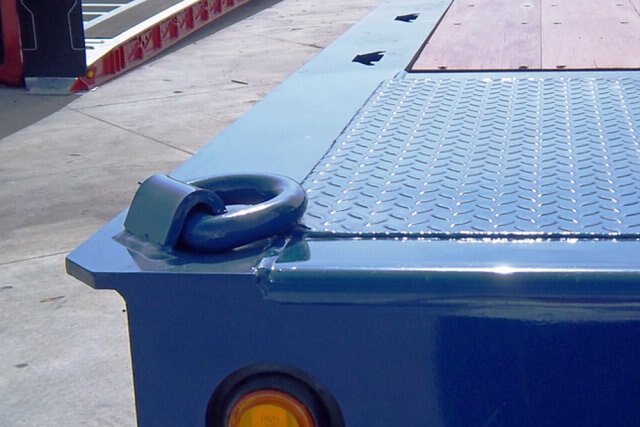

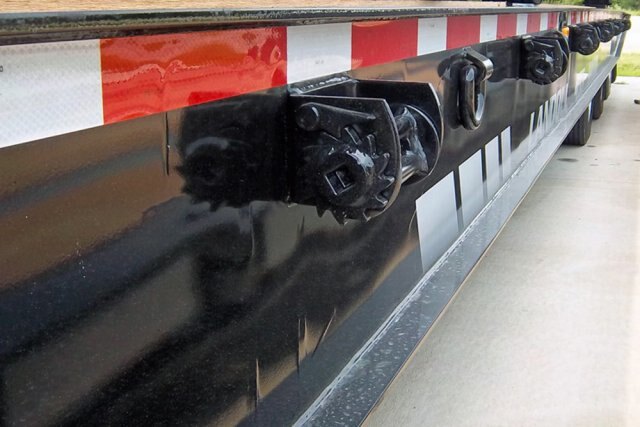

  • Tie Downs: Double Key Hole Chain Slots on 24" Centers
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package

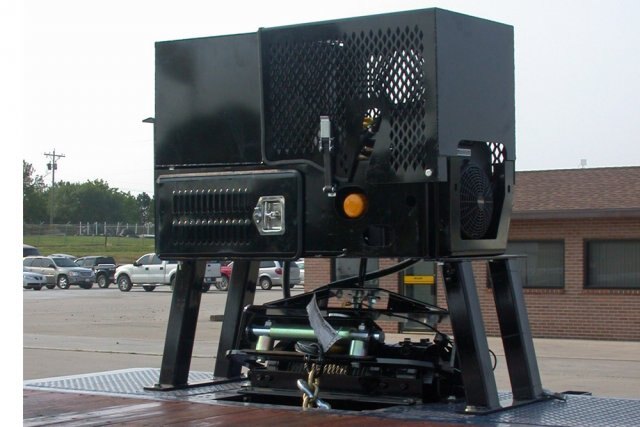

  • Tool Box: Twin Upper Deck Mounted with Lockable Door (7"H x 34"W x 29"D)
  • Hydraulic Winch: Worm Gear 12,000 lb. with Spring Tension and 85' of 1/2" Cable

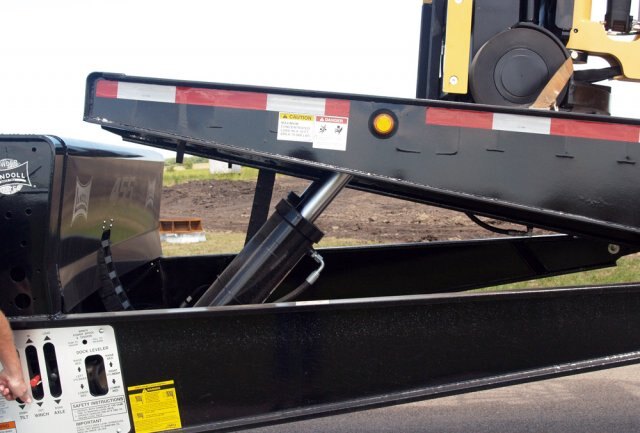

  • Tilt Cylinders: 2 - 6" x 30"
  • Undercarriage: 4" x 100" and 4" x 126", Centralized Grease System; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
  • Load Angle: 6.5°
  • Accessories: Flat Approach Plate with Six Key Hole Tie Downs, Auto Slack Adjusters, Main Deck Center Slope Roller, Forklift Package Standard, 410-48CA & 410-50 have 40' Kingpin to Rear Axle with 9'11" Axle Spread
  • Hydraulic Valve Body: Rexroth 20GPM

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
455A-50
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
55 Ton
BASE WEIGHT
23,010 lbs. (+/- 3%)
DECK
102''
AXLES
3
TIRES & PLY RATING
(12) 235/75R 17.5 LRH
