ID # 13345832

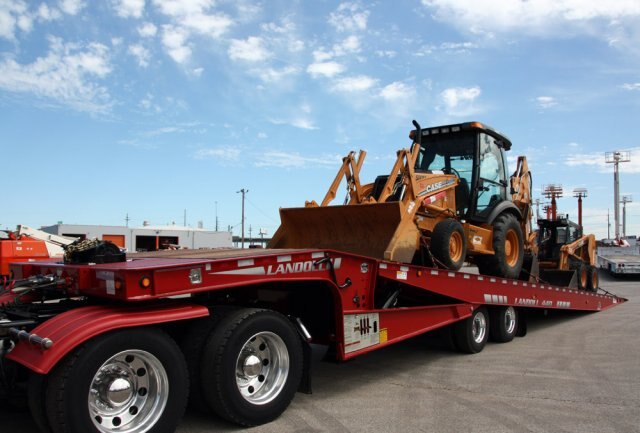

Landoll 440A-48

  • Landoll 440A 48
  • Landoll 440A 48
  • Landoll 440A 48
  • Landoll 440A 48
  • Landoll 440A 48
  • Landoll 440A 48
  • Landoll 440A 48
  • Landoll 440A 48
  • Landoll 440A 48
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Haul Heavy, Large Loads Easily Landoll_Trailers_TravelingAxle_440_2Cat_270x160.jpg

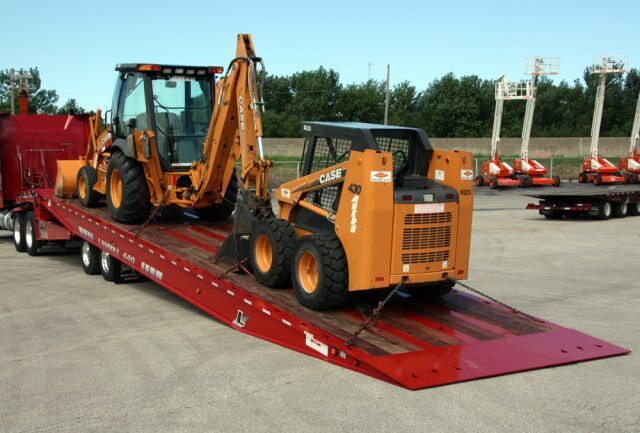

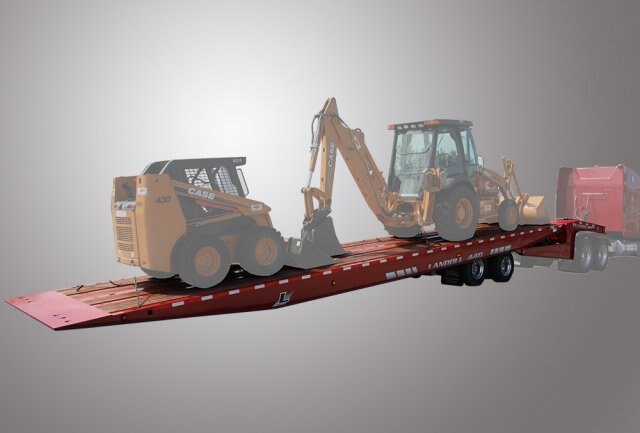

The Landoll 440 is a tandem axle trailer with a capacity of up to 40 tons. It is available in 48', 53', and California legal 50' lengths. Handle tough equipment including super low clearance pavers with an easy one-man operation.

Low Clearance Upper Deck Transition Landoll_Trailers_TravelingAxle_440_300dpi_270x160.jpg

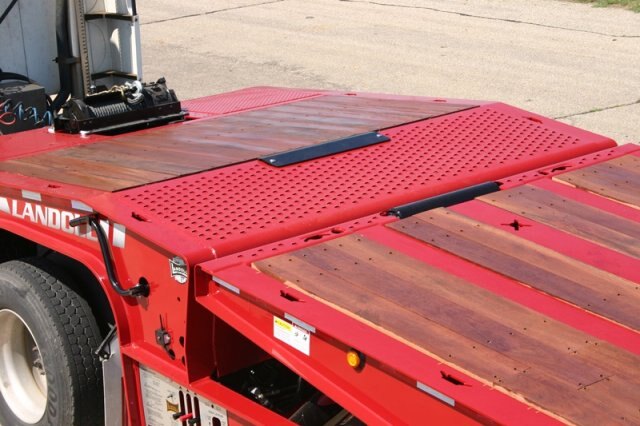

All 400 series trailers feature the super low clearance slope transition allowing manlifts, forklifts, and other difficult low clearance equipment to load easily on the upper deck.

Ultimate Stability


The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, outer beam pivot points adds superior stability while loading heavy loads.



Powder Coat Paint

Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors.

Railroad Track Option


The railroad track option is ideal for safely loading and transporting today’s rail maintenance equipment.  The Landoll approach plate sits down onto the rail to create a solid base and smooth transition from rail to trailer without ramps or heavy drop-in-rails, allowing operators to load these machines within minutes.


  Features
  • *Capacity: 80,000 lbs.
  • Deck Rating: 50,000 lbs. in 10'
  • Estimated Base Weight: See Above
  • Main Frame: Fabricated 80,000 and 100,000 PSI Yield, 40" Center, Four-Beam Design

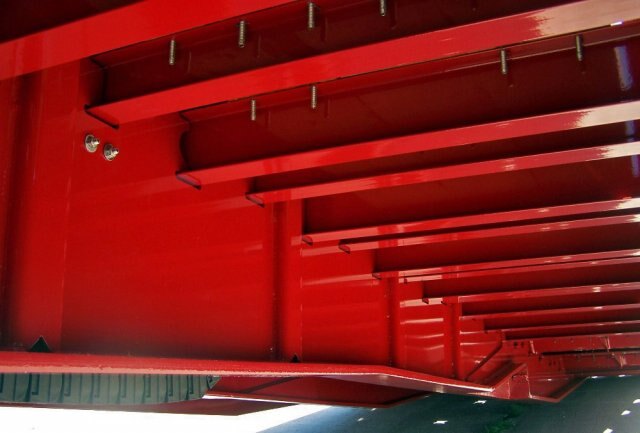

  • Crossmembers: Alternating 4" and 3" Junior I-Beam on 8" Centers
  • Slope Drop: 90°

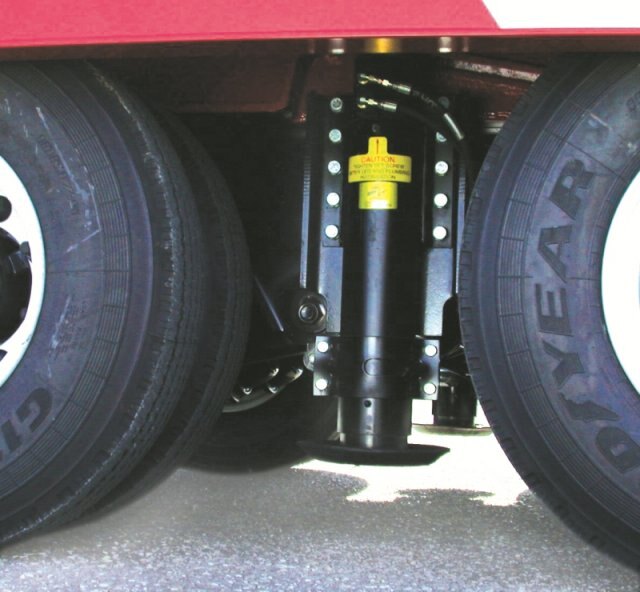

  • Parking Stands: Jost Two-Speed
  • Tires: 235/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.5 Tubeless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 2 - 25,000 lb. Dual Tire, Oil Bath Bearings
  • Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity
  • Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: 5th Wheel Kingpin
  • Pin Setting: 21"
  • Swing Clearance: 83.5"
  • Loaded Ground Clearance: 14" at Bottom of Gooseneck
  • Loaded Deck Height: 37"
  • Width: 102" Decking:  1-3/8" Apitong Hardwood
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 20 GPM

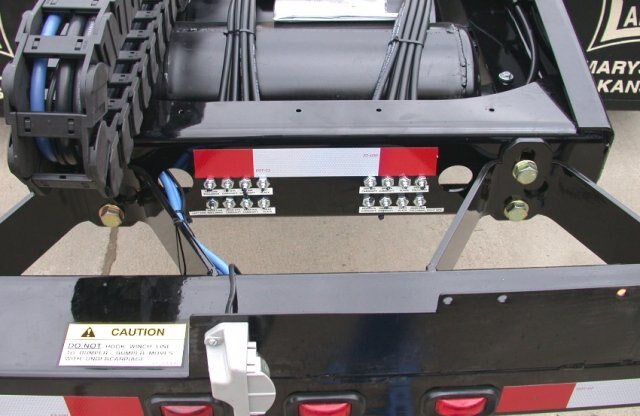

  • Wiring Harness: "Grote Ultra-Blue Seal" - 7-Year Warranty
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Tie Downs: Double Key Hole Chain Slots with Square Stake Pockets on 24" Centers
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package
  • Tool Box: Twin Upper Deck Mounted with Lockable Door (7"H x 34"W x 29"D)
  • Hydraulic Winch: Worm Gear 12,000 lb. with Spring Tension and 85' of 1/2" Cable
  • Tilt Cylinders: 2 - 6" x 30"
  • Undercarriage: 2 - 4" x 126" - 48'; 4" x 126" and 4" x 138" - 50'; 4" x 138" - 53', Centralized Grease System; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
  • Load Angle: 6.5°
  • Accessories: Flat Approach Plate with Six Key Hole Tie Downs, Automatic Slack Adjusters, Main Deck Center Slope Roller, Very Soft Transition from Lower to Upper Deck
  • Hydraulic Valve Body: Rexroth 20GPM

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.



Specifications
Model
440A-48
Category Name
Trailers - Highway/Semi
Year
2015
Sale Type
New
Manufacturer
Landoll
CAPACITY
40 Ton
BASE WEIGHT
18,575 lbs. (+/- 3%)
DECK
102''
AXLES
2
TIRES & PLY RATING
(8) 235/75R 17.5 LRH
