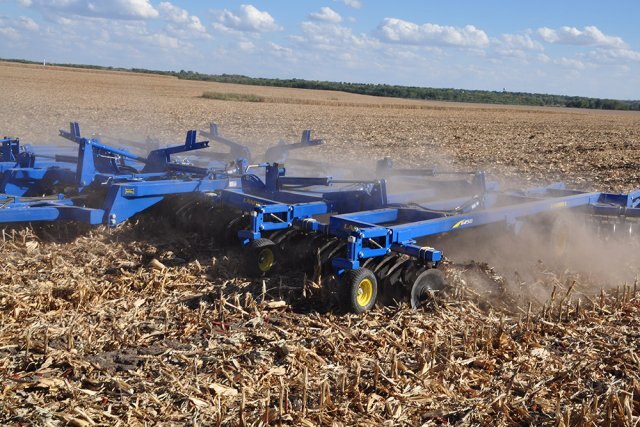

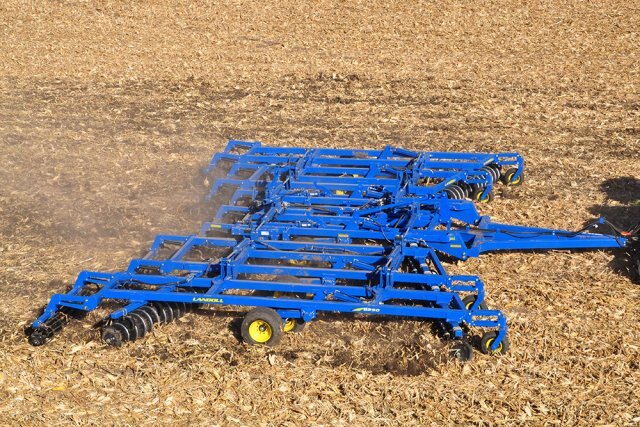

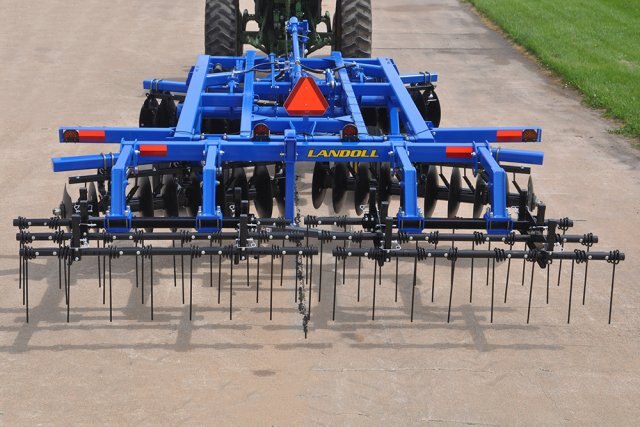

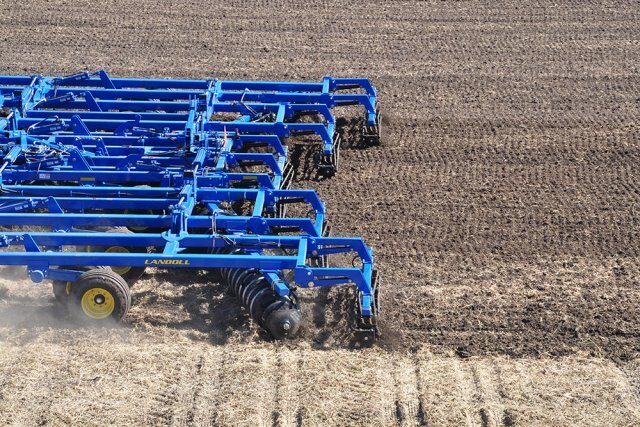

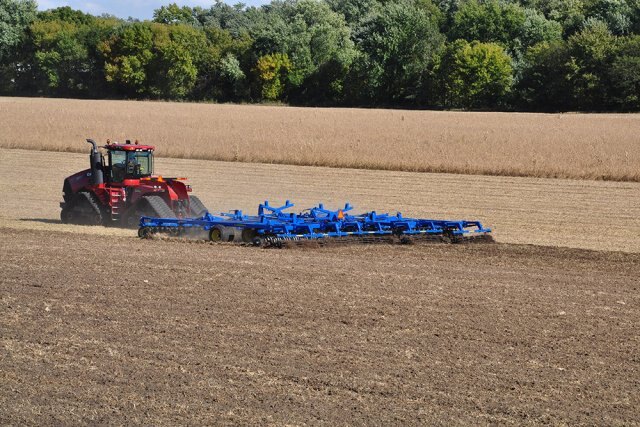

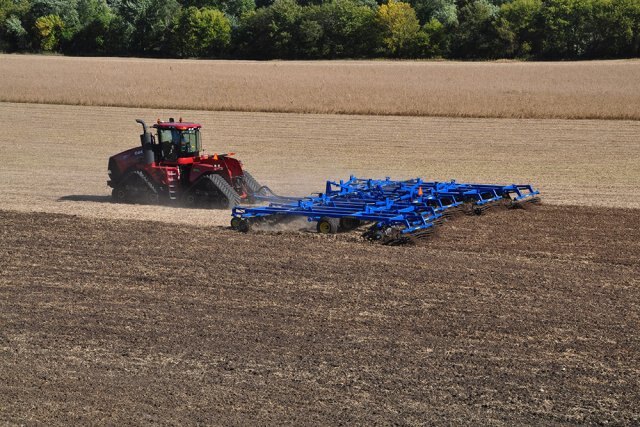

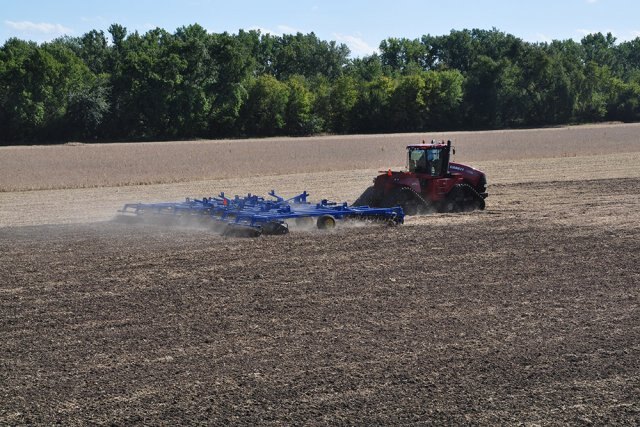

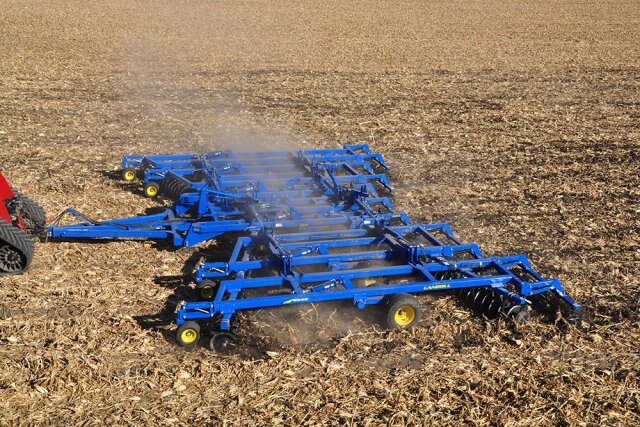

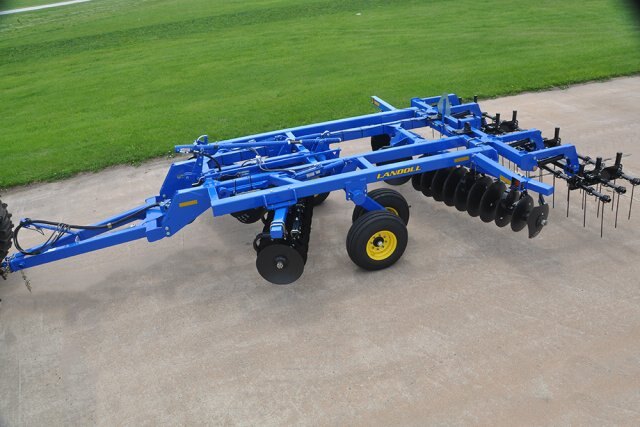

Landoll 6200 Series Tandem Disc Harrow 6250 Series - Five Section 24

  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
  • Landoll 6200 Series Tandem Disc Harrow 6250 Series Five Section 24
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Primary, Secondary, Both


Better “return on investment” is what multi-tasking is all about. Utilizing that investment in multiple operations opens the door to better ROI. The Landoll 6200 Series Discs are true multi-taskers. At home in the high residue primary tillage applications as well as in secondary operations preparing a seedbed for planting, the 6200 Series from Landoll is the disc of choice. Features like the high ratio of weight per foot for penetration and cutting in the fall as well as overlapping staggered gangs for exceptional leveling in the spring provide for use over two seasons. User friendly adjustments allow the operator to fine tune the 6200 Series to meet the needs of the season.

Design and Purpose

The design of the 6200 Series Tandem Disc Harrow came from customer feedback gathered over the years. The compilation of feedback showed the weaknesses of the competitive units and those weaknesses were addressed by the engineering staff. What resulted was the 6200 Series. The Landoll 6200 Series has incorporated many of the tried and true design and manufacturing processes that have made Landoll an industry leader.

Sized to Fit

The 6200 Series Tandem Disc Harrow is available in sizes from 12' to 50’. Rigid units are available in 12', 14' and 15' models. The folding units up to 36’ fold in 3 sections while the units from 40’ to 50’ fold in 5 sections. The 3 section units transport under 17’ 8”. The 5 section machines transport at 17’ 6”. Transport heights range from 9’ 8” to 14’ 11”.
  Features
  • Laser Cut, Robotically Welded Frame
  • 5 1/2” Lift Axles with Maintenance-Free Lift System
  • Walking Tandems on All Sizes (Single Wheel on Wing of 21 Foot Unit)
  • Slip-In Spindles
  • 11L x 15-12 Ply, 12.5L x 15-12 Ply, 32/1550 x 16.5 SL, 235/75R 17.5 Tires (Model Dependent)
  • Self-Leveling Hitch (Hydraulic Control Optional on 3 Section, Standard on 5 Section)
  • Cast Single Lip Hitch Cat. III or Cat. IV  (Model Dependent)
  • Single Point Depth Control
  • Pivoting Wing Gauge Wheels on All Models
  • 22”, 24” or 26” x  6 gauge or 1/4” Disc Blades Spaced at 8 3/4”
  • 22” x 6 gauge or 1/4” Spaced at 7” on 5 Section Units
  • 20 Degree Gang Angle Front
  • 18 Degree Gang Angle Rear
  • 1 3/4” Gang Bolt
  • Steel Spools 5 1/2” Diameter with 1/4” Wall Thickness
  • Trunnion Mount Bearings
  • C-Cushion Bearing Mounts
  • Overlapping/Staggered Offset Tandem Disc Gangs
  • Heavy-Duty Adjustable Scrapers
  • Adjustment/Maintenance Wrenches
  • Blue Powder Coat Paint
  • LED Safety Warning Lights
   Technical Specifications:

 6250-40
6250-45
 6250-50
Approximate Weight (8 3/4" Spacing) 34,210 lbs. (15,517 kg) 36,715 lbs. (16,654 kg) 37,960 lbs. (17,218 kg)
Approximate Weight (7" Spacing) 36,445 lbs. (16,531 kg) 39,180 lbs. (17,772 kg) 41,945 lbs. (19,026 kg)
Working Width (Approximate) 40 ft. 0 in. (12.2 m) 45 ft. 0 in. (13.7 m) 50 ft. 0 in. (15.2 m)
Transport Width 17 ft. 6 in. (5.3 m) 17 ft. 6 in. (5.3 m) 17 ft. 6 in. (5.3 m)
Transport Height 11 ft. 0 in. (3.4 m) 12 ft. 3 in. (3.7 m) 13 ft. 6 in. (4.1 m)
Number of Blades - Front Gang (8 3/4" Spacing) 56 62 69
Number of Blades - Front Gang (7 " Spacing) 66 74 82
Number of Blades - Rear Gang (8 3/4" Spacing) 58 64 71
Number of Blades - Rear Gang (7" Spacing) 68 76 84
Blade Diameter 24 in. (610 mm) 24 in. (610 mm) 24 in. (610 mm)
Blade Thickness 0.25 in. (6.35 mm) (8 3/4" Spacing Only) 0.25 in. (6.35 mm) (8 3/4" Spacing Only) 0.25 in. (6.35 mm) (8 3/4" Spacing Only)
  0.25 in. (6.35 mm) Rollable 0.25 in. (6.35 mm) Rollable 0.25 in. (6.35 mm) Rollable
Blade Concavity (8 3/4" Spacing) 3 in. (76.2 mm) 3 in. (76.2 mm) 3 in. (76.2 mm)
Blade Concavity (7" Spacing) Low Concavity Low Concavity Low Concavity
Blade Spacing - Front Gang 7 in. (178 mm) or 8.75 in. (222 mm) 7 in. (178 mm) or 8.75 in. (222 mm) 7 in. (178 mm) or 8.75 in. (222 mm)
Blade Spacing - Rear Gang 7 in. (178 mm) or 8.75 in. (222 mm) 7 in. (178 mm) or 8.75 in. (222 mm) 7 in. (178 mm) or 8.75 in. (222 mm)
Blade Scrapers 4.5 in. (114 mm) Adjustable 4.5 in. (114 mm) Adjustable 4.5 in. (114 mm) Adjustable
Blade Scraper Mount Heavy-Duty 0.5 in. (12.7 mm) Spring Steel Arm Heavy-Duty 0.5 in. (12.7 mm) Spring Steel Arm Heavy-Duty 0.5 in. (12.7 mm) Spring Steel Arm
Gang Spools - Front Gang 5.5 in. (140 mm) Diameter 0.25 in. (6.35 mm) Wall Weldment 5.5 in. (140 mm) Diameter 0.25 in. (6.35 mm) Wall Weldment 5.5 in. (140 mm) Diameter 0.25 in. (6.35 mm) Wall Weldment
Gang Spools - Rear Gang 5.5 in. (140 mm) Diameter 0.25 in. (6.35 mm) Wall Weldment 5.5 in. (140 mm) Diameter 0.25 in. (6.35 mm) Wall Weldment 5.5 in. (140 mm) Diameter 0.25 in. (6.35 mm) Wall Weldment
Gang Angle - Front 18 Degree 18 Degree 18 Degree
Gang Angle - Rear 18 Degree 18 Degree 18 Degree
Gang Shaft 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round
Number of Gang Bearings - Front 18 20 20
Number of Gang Bearings - Rear 18 20 20
Frame 6 in. x 6 in. x 0.375 in. (153 x 153 x 9.5 mm) and 4 in. x 6 in. x 0.25 in. (102 x 153 x 6.35 mm) 6 in. x 6 in. x 0.375 in. (153 x 153 x 9.5 mm) and 4 in. x 6 in. x 0.25 in. (102 x 153 x 6.35 mm) 6 in. x 6 in. x 0.375 in. (153 x 153 x 9.5 mm) and 4 in. x 6 in. x 0.25 in. (102 x 153 x 6.35 mm)
Frame Construction Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded
Transport Lift Axles 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots
Transport Axle Type - Main Frame Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots
Transport Axle Type - Wing Frame Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots
Tire Size - Main Frame (8) 235/75R17.5 (8) 235/75R17.5 (8) 235/75R17.5
Wheel Hubs - Main Frame 8-Bolt 8-Bolt 8-Bolt
Spindles - Main Frame 4 in. (102 mm) Slip-In Spindles 4 in. (102 mm) Slip-In Spindles 4 in. (102 mm) Slip-In Spindles
Tire Size - Wing Frame (8) 32/1550 x16.5 SL (8) 32/1550 x16.5 SL (8) 32/1550 x16.5 SL
Wheel Hubs - Wing Frame 8-Bolt 8-Bolt 8-Bolt
Spindles - Wing Frame 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles
Hitch Type Self-Leveling with Hydraulic Control Self-Leveling with Hydraulic Control Self-Leveling with Hydraulic Control
Hitch Category Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole
Machine Depth Control Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted
Wing Gauge Wheels - Swivel Type (4) Standard (4) Standard (4) Standard
Safety Warning Lights and SMV Emblem Standard Standard Standard
Safety Chain Kit Standard Standard Standard
Adjustment Wrenches Standard Standard Standard
Powder Coat Paint, Blue Sapphire Standard Standard Standard
Rear Hitch (Cannot Use with Reels or Coil Tine Harrow) Optional Optional Optional
Cat. V Single Lip Hitch Clevis (3 in. Hole) Optional Optional Optional
Spare Tire & Wheel Assembly Optional Optional Optional
Horsepower Requirements 8 to 10 HP (6 to 7 kW) per Foot 8 to 10 HP (6 to 7 kW) per Foot 8 to 10 HP (6 to 7 kW) per Foot



Specifications
Model
6250 Series - Five Section - 24
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Landoll
