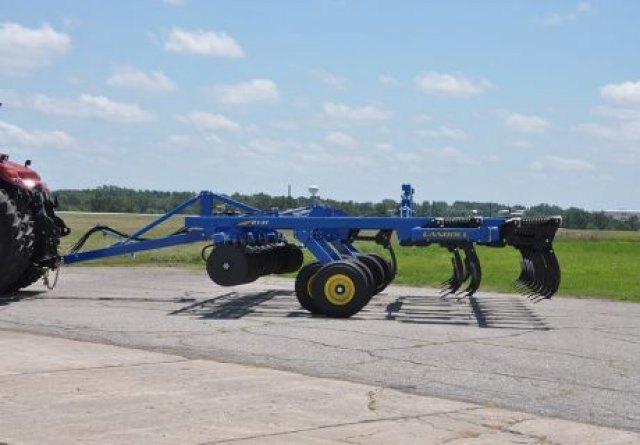

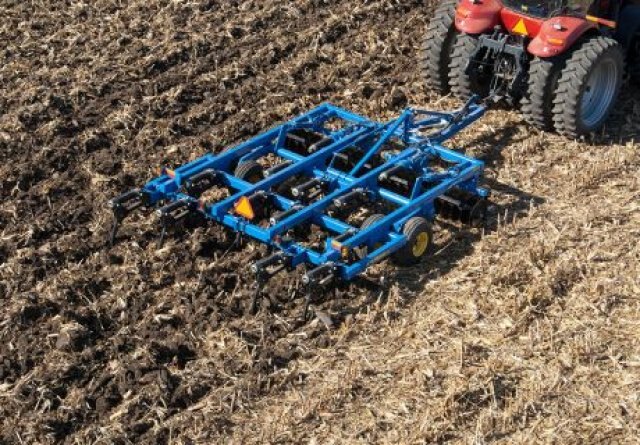

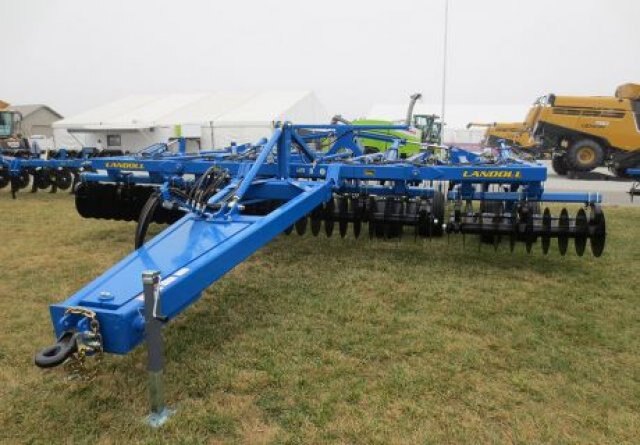

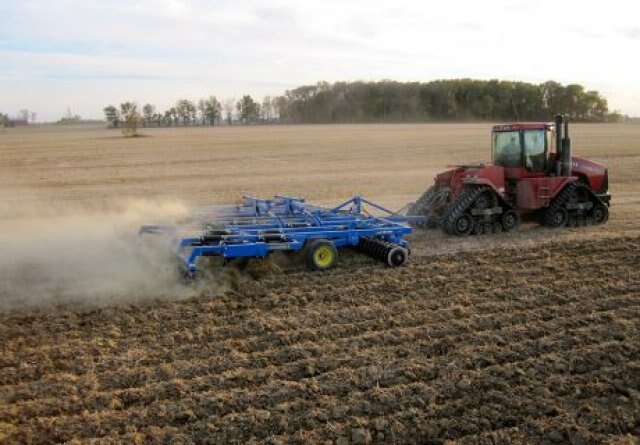

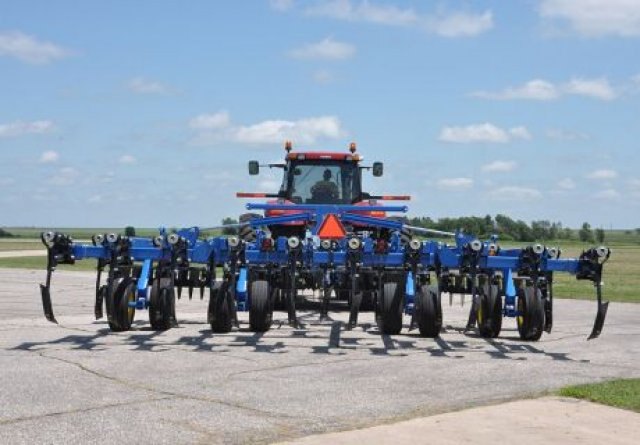

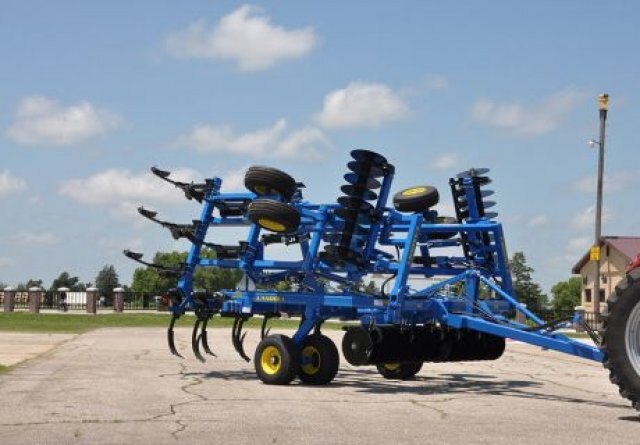

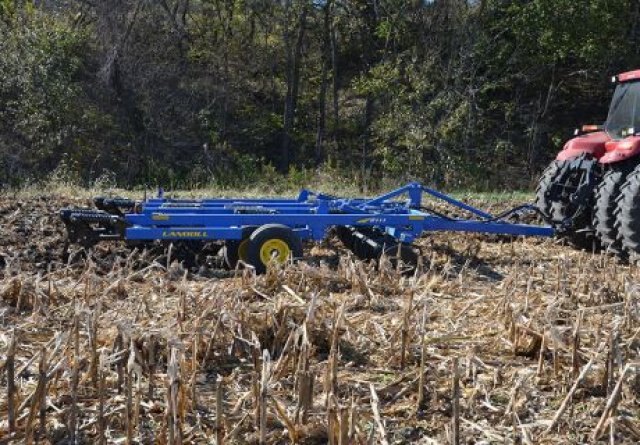

Landoll 2100 Series Coulter Chisel - With Rigid Shear Bolt Shanks

  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
  • Landoll 2100 Series Coulter Chisel With Rigid Shear Bolt Shanks
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Proven Concept/High Capacity Design


The coulter chisel concept has been used for decades as an alternative primary tillage practice. The Landoll 2100 Series Coulter Chisel incorporates this concept into high capacity - that translates to handling heavy residue at higher speeds with maximum efficiency.  Available in working widths from 8’ 9” to 31’ 3”, these units will work with a wide range of tractor sizes and provide ultimate productivity for nearly any operation.  The concept combines straight cut 22” coulters, spaced at 7 1/2”, with high clearance chisel shanks, spaced at 15”, for fracturing the soil while sizing and blending the residue. Shanks are arranged to follow a coulter and have one in between each for optimum sizing.

Designed With the Operator in Mind

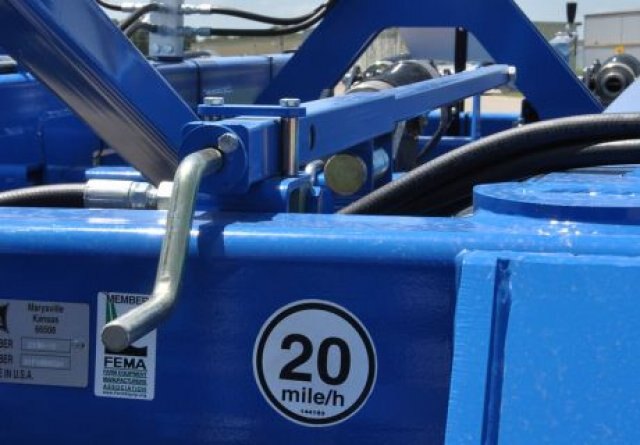

The Landoll 2100 Series Coulter Chisel offers single point depth control at the front of the machine.  Hydraulically controlled coulters allow for “on the go” adjustments to meet changing conditions right from the comfort of the tractor cab.  The self-leveling hitch provides a “set it and forget it” adjustment that maintains level operation from front to rear.  Shank assemblies are available in auto-reset or rigid shear bolt style. Optional leveling devices for final finishing of the worked field are available.  These options are designed with easy adjustments built-in for fine tuning the surface to accommodate each individual need.

It's About the Frame

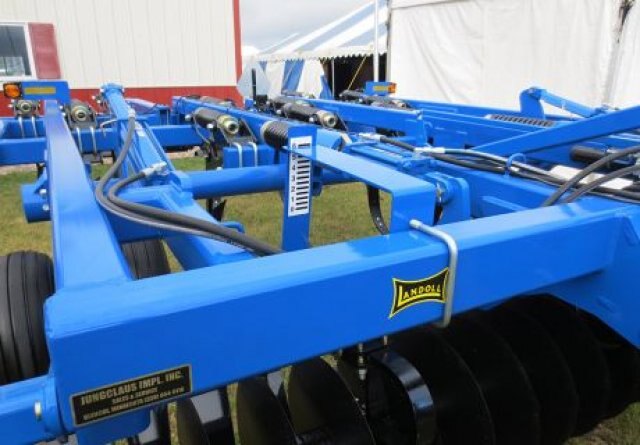

High capacity primary tillage tools need to have a solid foundation to build from.  The Landoll 2100 Series Coulter Chisel uses precision, laser cut structural steel frame members that are robotically welded for ultimate strength and reliability.  This process of manufacturing provides the end user with piece of mind that the Landoll 2100 Coulter Chisel will be in it for the long haul.
  Features
  • Laser Cut, Robotically Welded Frame
  • 5 1/2” Lift Axles with Maintenance-Free Lift System
  • Walking Tandems on All Sizes Except 7- Shank Models
  • Slip-In Spindles
  • 12.5L x 15-12 Ply or 32/1550 x 16.5L Tires (Model Dependent)
  • Self-Leveling Hitch
  • Cast Single Lip Hitches Cat. III on 7 and 9 Shanks; Cat. IV on 11 Shanks and Larger
  • Single Point Depth Control

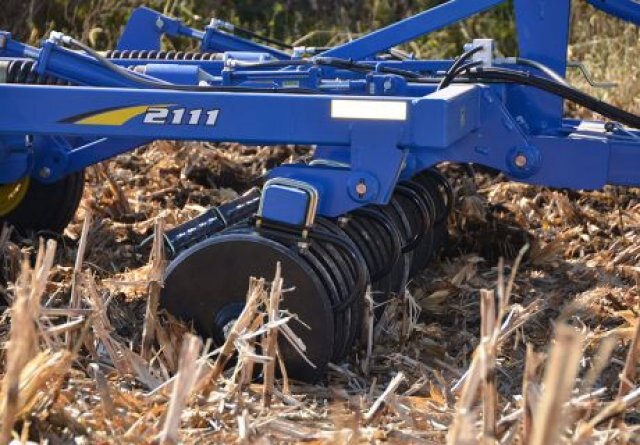

  • 22” Coulters with 7 1/2” Spacing Provides Each Shank with Leading Coulter
  • Solid Cast Coulter Spools
  • 1 3/4” Gang Bolt
  • Trunnion Mount Bearings
  • C-Cushion Bearing Mounts
  • Auto-Reset Shanks with 32” Under Frame Clearance
  • Rigid Shear Bolt Shanks with 32” Under Frame Clearance
  • Choice of Straight or Twisted Points and Shovels
  • Adjustment/Maintenance Wrenches
  • Blue Powder Coat Paint
  • Safety Warning Lights
   Technical Specifications:

2110-7
2110-9
 2111-11 2111-13
2111-15
 2131-17 2131-19 2131-21 2131-23 2131-25
Approximate Weight 6,403 lbs. (2,904 kg) 8,405 lbs. (3,812 kg) 9,887 lbs. (4,485 kg) 10,492 lbs. (4,759 kg) 11,075 lbs. (5,024 kg) 18,378 lbs. (8,336 kg) 18,974 lbs. (8,606 kg) 21,605 lbs. (9,800 kg) 22,535 lbs. (10,222 kg) 23,375 lbs. (10,603 kg)
Working Width 8 ft. 9 in. (2.7 m) 11 ft. 3 in. (3.4 m) 13 ft. 9 in. (4.2 m) 16 ft. 3 in. (5.0 m) 18 ft. 9 in. (5.7 m) 21 ft. 3 in. (6.5 m) 23 ft. 9 in. (7.2 m) 26 ft. 3 in. (8.0 m) 28 ft. 9 in. (8.8 m) 31 ft. 3 in. (9.5 m)

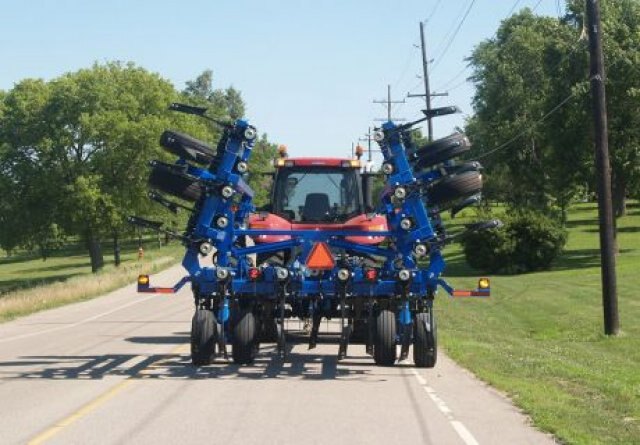

Transport Width 9 ft. 10 in. (3.0 m) 11 ft. 9 in. (3.6 m) 14 ft. 4 in. (4.4 m) 16 ft. 10 in. (5.1 m) 19 ft. 4 in. (5.9 m) 16 ft. 1 in. (4.9 m) 16 ft. 1 in. (4.9 m) 15 ft. 6 in. (4.7 m) 15 ft. 6 in. (4.7 m) 15 ft. 6 in. (4.7 m)
Transport Height N/A N/A N/A N/A N/A 11 ft. 1 in. (3.4 m) 11 ft. 7 in. (3.5 m) 13 ft. 5 in. (4.1 m) 13 ft. 11 in. (4.2 m) 15 ft. 2 in. (4.6 m)
Number of Coulter Blades 15 19 23 27 31 35 39 43 47 51
Blade Spacing 7.5 in. (191 mm) 7.5 in. (191 mm) 7.5 in. (191 mm) 7.5 in. (191 mm) 7.5 in. (191 mm) 7.5 in. (191 mm) 7.5 in. (191 mm) 7.5 in. (191 mm) 7.5 in. (191 mm) 7.5 in. (191 mm)
Blade Size 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm) 22 in. x 0.25 in. (559 x 6.4 mm)
Coulter Protection Spring Cushioned/C-Flex Spring Cushioned/C-Flex Spring Cushioned/C-Flex Spring Cushioned/C-Flex Spring Cushioned/C-Flex Spring Cushioned/C-Flex Spring Cushioned/C-Flex Spring Cushioned/C-Flex Spring Cushioned/C-Flex Spring Cushioned/C-Flex
Blade Scrapers Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm)
Blade Scraper Mount C-Cushion Mounted C-Cushion Mounted C-Cushion Mounted C-Cushion Mounted C-Cushion Mounted C-Cushion Mounted C-Cushion Mounted C-Cushion Mounted C-Cushion Mounted C-Cushion Mounted
Gang Spools 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast 5.5 in. (140 mm) Diameter Solid Cast
Gang Shaft 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round 1.75 in. (44.5 mm) Round
Number of Bearings 4 4 6 6 8 8 10 12 12 12
Gang Bearing Type C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals C-Cushion Trunnion Mount, Greaseable Triple Lip Seals
Number of Shanks 7 9 11 13 15 17 19 21 23 25
Shank Type Rigid Shear Bolt Rigid Shear Bolt Rigid Shear Bolt Rigid Shear Bolt Rigid Shear Bolt Rigid Shear Bolt Rigid Shear Bolt Rigid Shear Bolt Rigid Shear Bolt Rigid Shear Bolt
Shank Spacing 15 in. (381 mm) 15 in. (381 mm) 15 in. (381 mm) 15 in. (381 mm) 15 in. (381 mm) 15 in. (381 mm) 15 in. (381 mm) 15 in. (381 mm) 15 in. (381 mm) 15 in. (381 mm)
Shank Mounts Wrap-Around Design Wrap-Around Design Wrap-Around Design Wrap-Around Design Wrap-Around Design Wrap-Around Design Wrap-Around Design Wrap-Around Design Wrap-Around Design Wrap-Around Design
Shank Arms 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm)
Trip Height 14 in. (356 mm) 14 in. (356 mm) 14 in. (356 mm) 14 in. (356 mm) 14 in. (356 mm) 14 in. (356 mm) 14 in. (356 mm) 14 in. (356 mm) 14 in. (356 mm) 14 in. (356 mm)
Shank Size 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm) 1.25 in. x 2.5 in. (31.8 x 63.5 mm)
Standard Shovels 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted 4 in. (102 mm) Twisted
Point Angle 50 or 60 Degree 50 or 60 Degree 50 or 60 Degree 50 or 60 Degree 50 or 60 Degree 50 or 60 Degree 50 or 60 Degree 50 or 60 Degree 50 or 60 Degree 50 or 60 Degree
Shank Offset 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar 12 in. (305 mm) on Rear Bar
Under Frame Clearance 32 in. (813 mm) 32 in. (813 mm) 32 in. (813 mm) 32 in. (813 mm) 32 in. (813 mm) 32 in. (813 mm) 32 in. (813 mm) 32 in. (813 mm) 32 in. (813 mm) 32 in. (813 mm)
Frame 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm)
Frame Construction Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded Laser Cut/Matchcut Components, Robotically Welded
Transport Lift Axles 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots 5.5 in. (140 mm) with UHMW Maintenance Free Pivots
Transport Axle Type Single Axle Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots Walking Tandems with Greaseable Pivots
Tire Size - Main Frame (2) 12.5L x 15, 12 Ply (4) 12.5L x 15, 12 Ply (4) 12.5L x 15, 12 Ply (4) 12.5L x 15, 12 Ply (4) 12.5L x 15, 12 Ply (4) 32/1550 x 16.5 SL (4) 32/1550 x 16.5 SL (4) 32/1550 x 16.5 SL (4) 32/1550 x 16.5 SL (4) 32/1550 x 16.5 SL
Wheel Hubs - Main Frame 6-Bolt 8-Bolt 8-Bolt 8-Bolt 8-Bolt 8-Bolt 8-Bolt 8-Bolt 8-Bolt 8-Bolt
Spindles - Main Frame 2 in. (50.8 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles 3 in. (76.2 mm) Slip-In Spindles 3 in. (76.2 mm) Slip-In Spindles 3 in. (76.2 mm) Slip-In Spindles 3 in. (76.2 mm) Slip-In Spindles 3 in. (76.2 mm) Slip-In Spindles
Tire Size - Wing Frame N/A N/A N/A N/A N/A (4) 12.5L x 15, (GY-FI) (4) 12.5L x 15, (GY-FI) (4) 12.5L x 15, (GY-FI) (4) 12.5L x 15, (GY-FI) (4) 12.5L x 15, (GY-FI)
Wheel Hubs - Wing Frame N/A N/A N/A N/A N/A 8-Bolt 8-Bolt 8-Bolt 8-Bolt 8-Bolt
Spindles - Wing Frame N/A N/A N/A N/A N/A 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles 2.25 in. (57.2 mm) Slip-In Spindles
Hitch Type Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment Self-Leveling with Manual Adjustment
Hitch Category Cat. III Single Lip with 2.0 in. (50.8 mm) Hole Cat. III Single Lip with 2.0 in. (50.8 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole Cat. IV Single Lip with 2.25 (57.2 mm) Hole
Machine Depth Control Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted Single Point, Front Mounted
Weight Kits Needed With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required With Attachment - 4 Required, Without Attachment - 1 Required
Safety Warning Lights and SMV Emblem Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard
Safety Chain Kit Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard
Adjustment Wrenches Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard
Powder Coat Paint, Blue Sapphire Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard
Rear Jack Standard, When Equipped with Chopper Reel Standard, When Equipped with Chopper Reel Standard, When Equipped with Chopper Reel Standard, When Equipped with Chopper Reel Standard, When Equipped with Chopper Reel Standard Standard Standard Standard Standard
Cat. III Single Lip Hitch Clevis (2 in. Hole) Standard Standard Optional Optional Optional N/A N/A N/A N/A N/A
Cat. IV Single Lip Hitch Clevis (2.25 in. Hole) Optional Optional Standard Standard Standard Standard Standard Standard Standard Standard
Cat. V Single Lip Hitch Clevis (3 in. Hole) N/A N/A N/A N/A N/A Optional Optional Optional Optional Optional
2 in. Straight Points Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
2 in. Straight Points with Chrome Cap Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
3 in. Twisted Shovels Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Rear Hitch Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Rear Hitch With Hydraulic Hoses Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Spare Tire & Wheel Assembly Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Horsepower Requirements 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank 20 to 30 HP (15 to 22 kW) per Shank



Specifications
Model
2100 Series Coulter Chisel - With Rigid Shear Bolt Shanks
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Landoll
