ID # 13240205

Landoll Industrial Tag Model L5029

  • Landoll Industrial Tag Model L5029
  • Landoll Industrial Tag Model L5029
  • Landoll Industrial Tag Model L5029
  • Landoll Industrial Tag Model L5029
  • Landoll Industrial Tag Model L5029
  • Landoll Industrial Tag Model L5029
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview



50,000 lb. Triple Axle

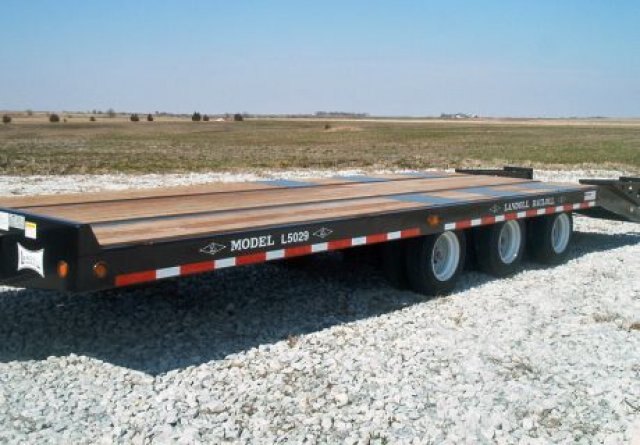

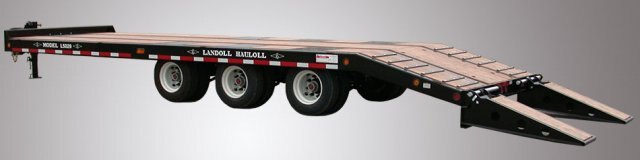

The Landoll Model L5029 is a triple axle 50 ton industrial tag trailer.  The trailer features a 24' flat deck and 5' beavertail and powder coat paint.  The mainframe is constructed of continuous I-Beam, 4" Jr. I-Beams on 12" Centers, 80,000# PSI  and 9" deep formed side rails, plus many other high-end features found on Landoll trailers.



  Features
  • *Capacity: 50,000 Lbs.
  • Conc. Deck Rating: 50,000 Lbs. in 20 ft. area
  • Estimated Base Weight: 9,980 Lbs.
  • Main Frame: Continuous I-Beam
  • Crossmembers: 4" Jr. I-Beams on 12" Center, 80,000# PSI
  • Side Rail: 9" Deep Formed steel Side Rails
  • Jacks: 25,000 Lb. Quick Lift Parking Stands
  • Tires: 215/75Rx17.5 LRH Double Coin
  • Wheels: Hub Pilot/Steel Outboard Brake Drums
  • Axles: 3 - 25,000 Lbs. Dual Tire, Oil Seal Hubs
  • Suspension: Multi-Leaf Springs 67,500 Lb. Capacity
  • Brakes: 12.25x7.5 Full Air ABS Rockwell 4S2M, Indirect Third
  • Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20" x 30" Safety Chains - Eyelet 15,000# Vertical; 60,000# Total Capacity

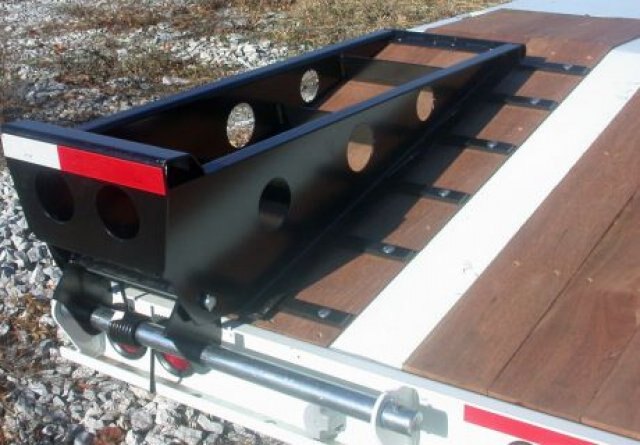

  • Storage Area: Tool and block storage tray in hitch area
  • Decking: 1-3/8" Apitong
  • Loaded Deck Height: 33"
  • Headboard: 6" Headboard
  • Width: 102" Wide
  • Length: 29' Deck (24' Flat Deck + 5" Beavertail)
  • Beavertail: Self-Cleaning
  • Ramps: 5' Self Cleaning Adjustable Dual Spring Assisted Flip-over Ramps
  • Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. Approved
  • Tie Downs: 10 Gotchas
  • Finish: High Quality Powder Paint
  • Color: Yellow, Black, White
  • Decals: Hi-Visibility Reflective Package

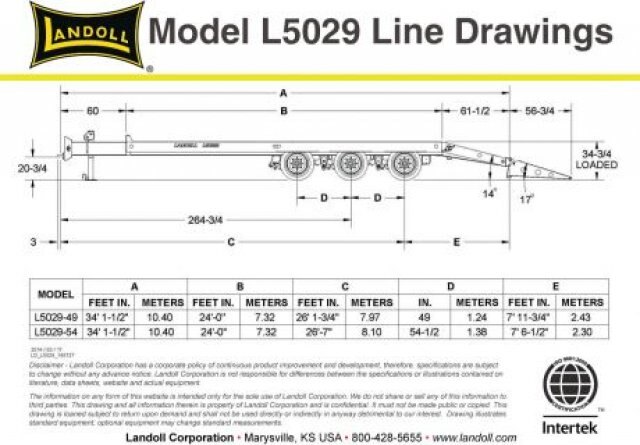

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
L5029-49
25 Ton
10,200 lbs.
 102' 3-49" (12) 215/75R x 17.5 LRH
L5029-54 25 Ton 10,200 lbs. 102' 3-54" (12) 215/75R x 17.5 LRH



Specifications
Model
Industrial Tag Model L5029
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
