ID # 13240195

Landoll Industrial Tag Model L2024HD

  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
  • Landoll Industrial Tag Model L2024HD
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Landoll_Trailer_IndustrialTag_2024HD_CloseUpRamps_270x160.jpg L2024HD Heavy Duty 20,000 lb.

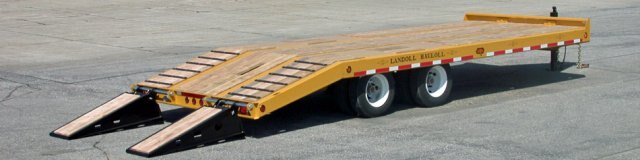

The model L2024HD (heavy-duty)is full 20,000 lbs. capacity industrial tag trailer with a 19' flat deck and 5' beavertail.  (26,000 GVW).  Standard features include a pierced main beam for a low deck height of 35".  Powder coat paint, ten combination stake pocket/chain gotchas are standard equipment along with large axles and tires to provide maximum working capacity.



  Features
  • *Capacity: 20,000 Lbs.
  • Conc. Deck Rating: 20,000 Lbs. In 10 ft. area
  • Estimated Base Weight:  ,000 Lbs.
  • Main Frame: I-Beam
  • Crossmembers: 4" Jr. I-Beams on 16" Centers 80,000# PSI
  • Side Rail: 8" Deep Formed Steel Side Rails
  • Jack: 12,000 Lb. Quick Lift Parking Jack
  • Tires: 235/80R 16 LRE
  • Wheels: Dual Disc Wheels - 8 hole
  • Axles: 2-10,000 Lbs. General Duty with Oil Sealed Hubs
  • Suspension: Spring Suspension (3"wide)
  • Brakes: 12-1/4"x4" Electric Brakes
  • Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20"to 30" with Safety Chains
  • Headboard: 6" Headboard
  • Decking: 2" Nominal Fir
  • Loaded Deck Height: 35 Inches
  • Width: 102" Wide
  • Length: 24' Deck (19' Flat Deck + 5' Beavertail)

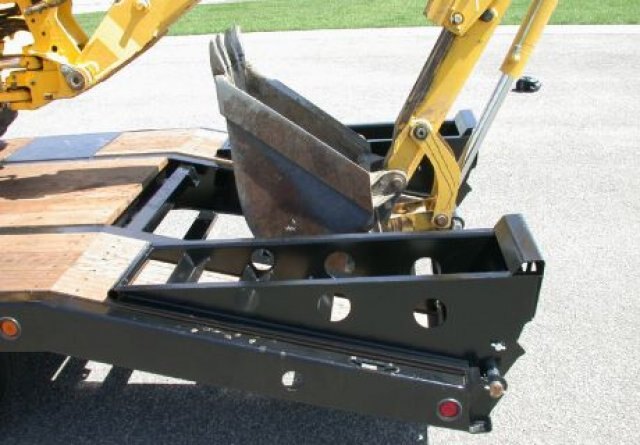

  • Beavertail: 5' Self Cleaning Beavertail

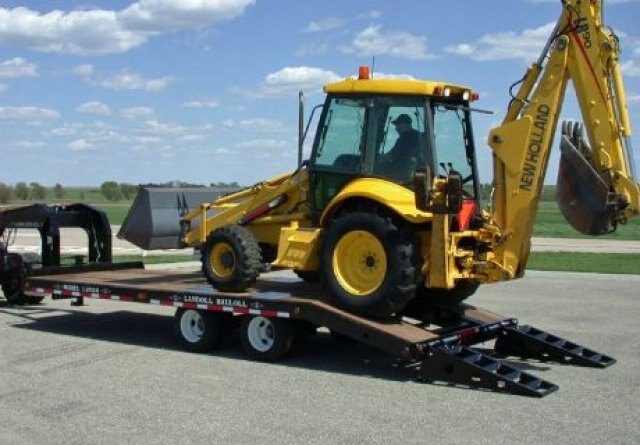

  • Ramps: 5' Self Cleaning Adjustable Spring Assisted Flip-over Ramps
  • Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. approved
  • Tie Downs: 10 Double Key Hole Chain Locks-Gotchas/Stake Pockets
  • Finish: High Quality Powder Paint
  • Color: Yellow
  • Decals: Hi-Visibility Reflective Package



   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
L2024HD
20,000 lbs.
6,000 lbs.
 24' 2 235/80R 16 LRE



Specifications
Model
Industrial Tag Model L2024HD
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
