ID # 13240192

Landoll Industrial Tag Model L2024

  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
  • Landoll Industrial Tag Model L2024
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

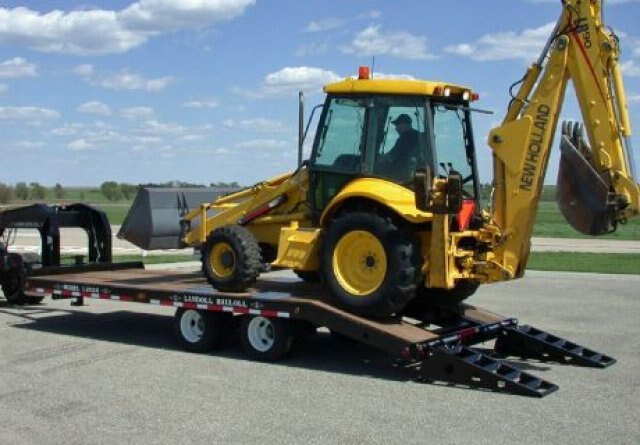

Landoll_Trailer_IndustrialTag_2024_Loaded_270x160.jpg Superior Quality Long Lasting Industrial Tags

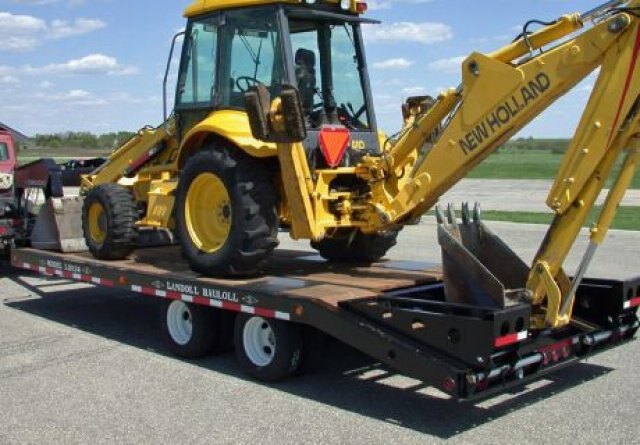

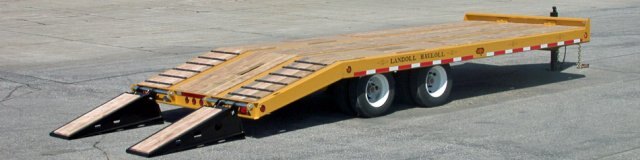

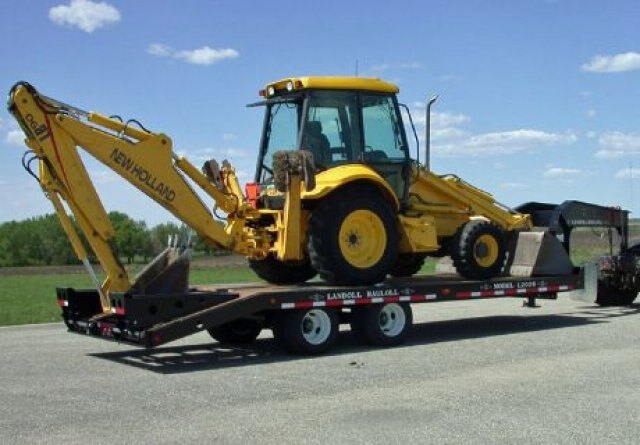

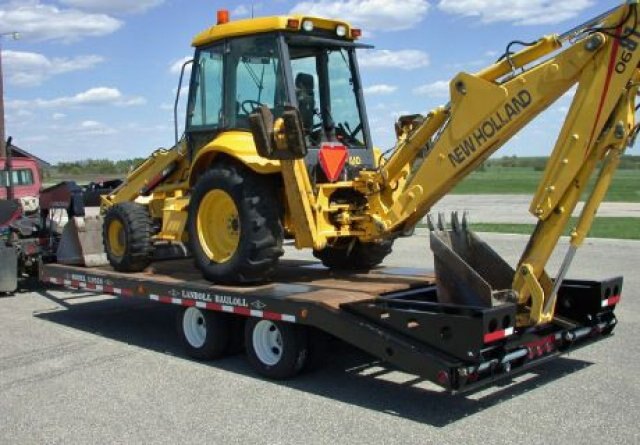

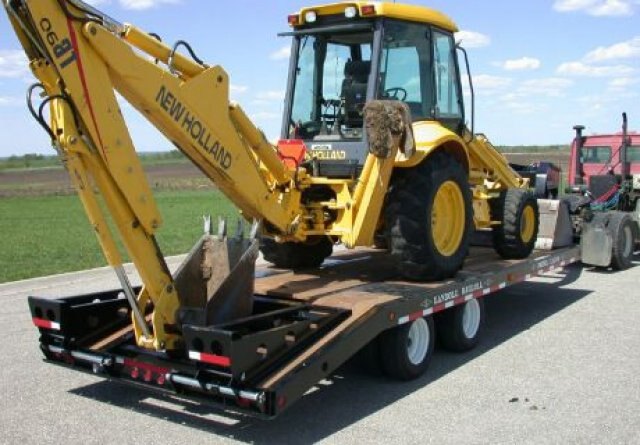

The L2024 is a 20,000 lb. capacity (26,000 GVWR) trailer for hauling of backhoes, skid steers, rollers, and other construction equipment.  The L2024 offers a 19' flat deck and a 5' beavertail.  Trailer is constructed of 4" Jr. I-Beams on 16" centers 80,000 PSI yield material.  8" deep formed side rails and 2 10,000 lb. axles with 3" spring suspension are also standard.  More standard features are a pierced main beam for a low 35" deck height, bucket trough, ten combination stake pocket/chain gotchas, and powder coat paint finish.



  Features
  • *Capacity: 20,000 Lbs.
  • Conc. Deck Rating: 20,000 Lbs. In 10 ft. area
  • Estimated Base Weight: 5,900 Lbs.
  • Main Frame: I-Beam
  • Crossmembers: 4" Jr. I-Beams on 16" Centers 80,000# PSI
  • Side Rail: 8" Deep Formed Steel Side Rails
  • Jack: 12,000 Lb. Quick Lift Parking Jack
  • Tires: 235/80R 16 LRE
  • Wheels: Dual Disc Wheels - 8 hole
  • Axles: 2-10,000 Lbs. General Duty with Oil Sealed Hubs
  • Suspension: Spring Suspension (3" wide)
  • Brakes: 12-1/4"x3-3/8" Electric Brakes
  • Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20" to 30" with Safety Chains
  • Headboard: 6" Headboard
  • Decking: 2" Nominal Fir
  • Loaded Deck Height: 35 Inches
  • Width: 102" Wide
  • Length: 24' Deck (19' Flat Deck + 5' Beavertail)
  • Beavertail: 5' Self Cleaning Beavertail

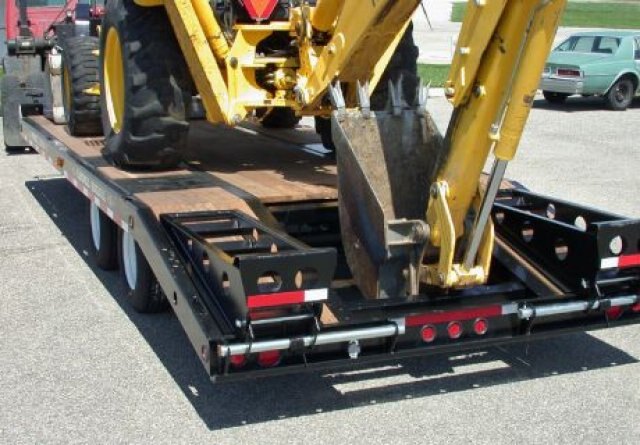

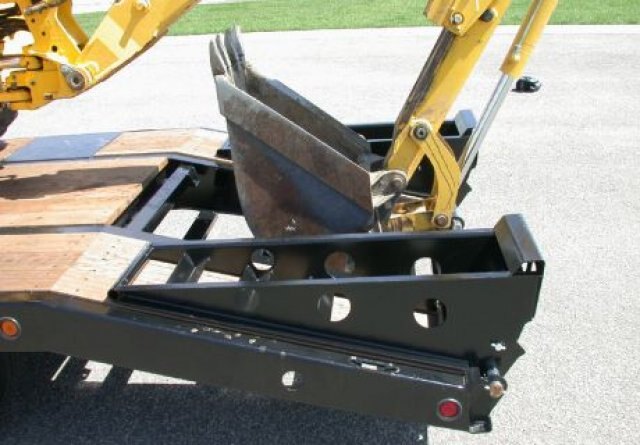

  • Ramps: 5' Self Cleaning Adjustable Spring Assisted Flip-over Ramps
  • Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. Approved
  • Tie Downs: 10 Double Key Hole Chain Locks-Gotchas/Stake Pockets
  • Finish: High Quality Powder Paint
  • Color: Yellow
  • Decals: Hi-Visibility Reflective Package

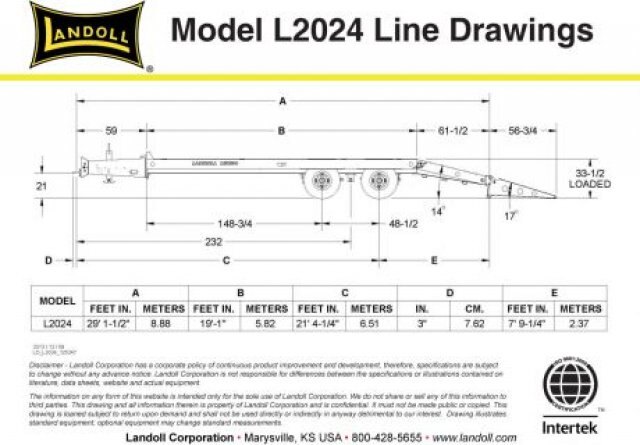

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
L2024
20 Ton
5,900 lbs.
 24' 2 235/80R 16 LRE



Specifications
Model
Industrial Tag Model L2024
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
