ID # 13240191

Landoll Utility Tag Model LT1420

  • Landoll Utility Tag Model LT1420
  • Landoll Utility Tag Model LT1420
  • Landoll Utility Tag Model LT1420
  • Landoll Utility Tag Model LT1420
  • Landoll Utility Tag Model LT1420
  • Landoll Utility Tag Model LT1420
  • Landoll Utility Tag Model LT1420
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

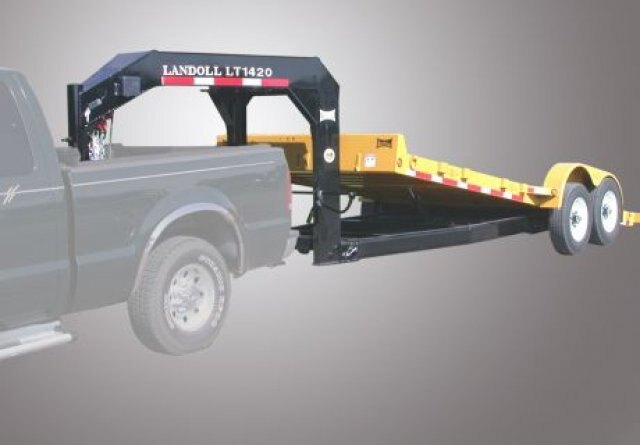

Landoll_Trailer_UtilityTag_1420_gneck_270x160.jpg Full 14,000 lb. Capacity Tilt Tag-Optional Gooseneck

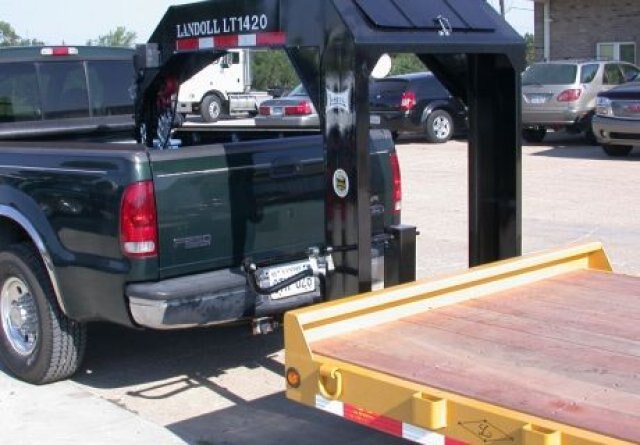

The LT1420 tag offers operators a full14,000 lb. payload capacity. The trailer features two 8,000 lb. axles with 215/75R 17.5 tires supporting a heavy-duty frame for maximum strength and payload. The tilt deck ground loads at a low load angle of just 10 degrees. The trailer GVWR is 18,200 lbs.  A popular option is the heavy duty gooseneck with 2-5/16"  ball hitch and built in tool box.



  Features
  • *Load Capacity:  14,000 Lbs.
  • G.V.W.R.  18,200 Lbs.
  • Base Weight:  4,200 Lbs.
  • Main Frame:  6.5" Fabricated Channel
  • Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 12" Centers
  • Jack:  12,000 Lb. Top Crank - Bull Dog
  • Tires:  215/75R 17.5 LRH
  • Wheels:  Steel Wheels - 8 Bolt Pattern
  • Axles:  2 - 8,000 Lb. E-Z Lubes
  • Suspension  Torflex Axles
  • Brakes:  12-1/4"x3-3/8" Electric Brakes (Both Axles)
  • Hitch:  3" Pintle Eye, 12" Vertical Height Adjustment, 15,000 Lb. Capacity
  • Tool Box  Under Deck
  • Decking:  2" CA-B Copper Azole Treated Pine
  • Deck Height (Loaded):  22 Inch Loaded
  • Width:  82-1/2" Inside Fenders - 102" O.A.
  • Length:  20' Tilt Deck
  • Load Angle:  12.1 Degrees

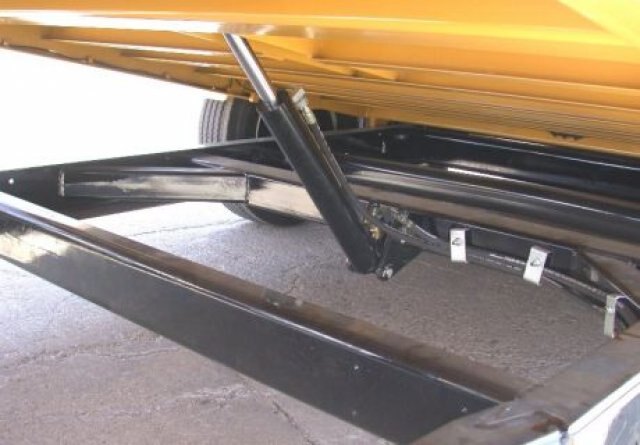

  • Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder with Tilt Control System
  • Approach:  Full Width Landoll Traction Plate
  • Lock Down:  Positive Over Center
  • Lights:  Sealed Beam - Per I.C.C. & Federal Regulations
  • Electrical:  6 Pole Electric Plug - Wiring in Conduit
  • Fenders:  14 Gauge Cold Roll Formed w/Back (82-1/2" in between)
  • Running Boards:  16 Gauge - Cold Roll Formed w/Anti-Skid Tape
  • Tie Rings:  5/8" D-Rings (4)
  • Stake Pockets:  4 Per Side
  • Safety Chains:  3/8" x 35" - G70 Chain
  • Break-away Kit:  w/Gel Cel Chargeable Battery and Box
  • Finish:  Your Choice:White, Black or Yellow Non-fading, Scratch & Chip Resistant Powder Coat
  • Decals:  Hi-Visibility Reflective Package

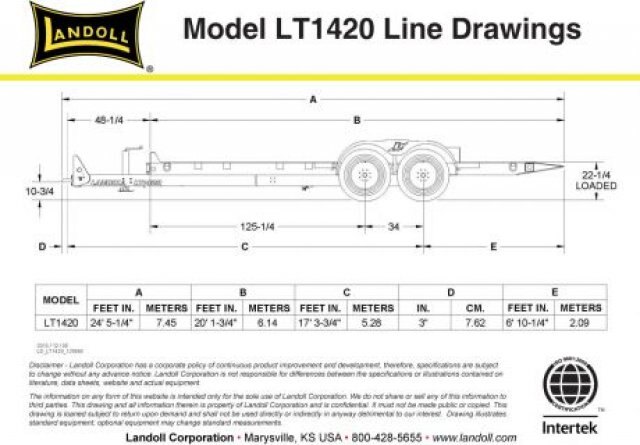

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
LT1420
14,000 lbs.
xxxx
 20'x8'6" 2 215/75R 17.5 LRH



Specifications
Model
Utility Tag Model LT1420
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
