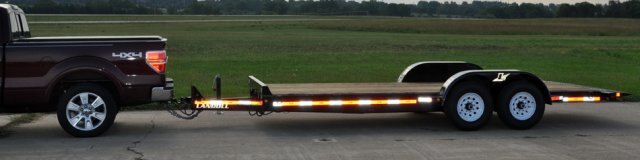

The LT1220 is a 20', 12,000 lb. capacity tilt tag trailer featuring a tilt control system for loading multiple pieces of equipment. The tilt control system, holds the deck in a tilted position during all loading operations.

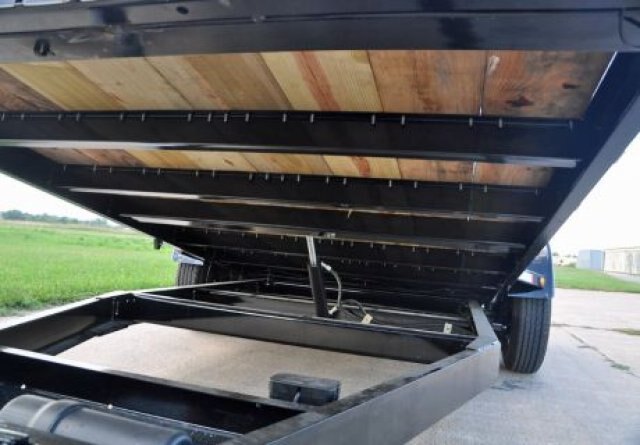

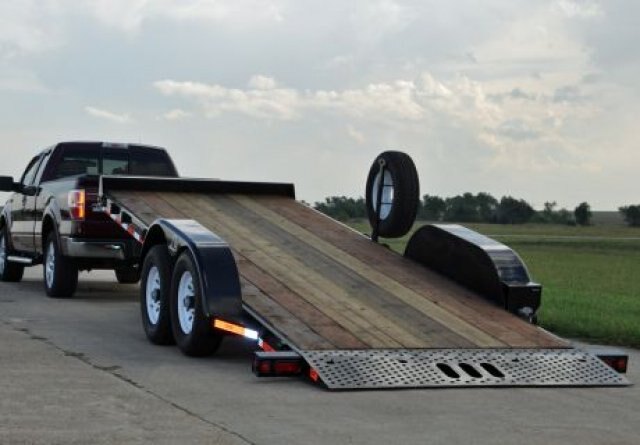

A cushion cylinder tilts the deck for easy loading and unloading, and a heavy duty bed lockdown secures the bed in transport position. The approach plate is exclusive machined Landoll traction plate with four keyhole tie downs.
High End Features
Standard features on Landoll tag trailers include heavy duty adjustable ball hitch, bid lockdown, 14 gauge molded fenders, sealed electrical wiring harness, 235 80R 16 LRE tires, and durable powder coat paint finish.
Features
Estimated Base Weight: 3,700 Lbs.
*Capacity 12,000 Lbs.
G.V.W.R. 15,700 Lbs
Main Frame: 6" Channel
Crossmembers: 4" Jr. I-beam 80,000 PSI Yield on 24" Centers
Jack: 7,000 Lb. Top Crank Bull Dog
Tires: 235/80R 16LRE
Wheels: Steel Wheels - 16.5 x 6.75 -8 Bolt
Axles: 2 - 7,000 Lbs. E-Z Lubes
Suspension: Torflex Axles
Brakes: 12" x 2" Electric Brakes (Both Axles)

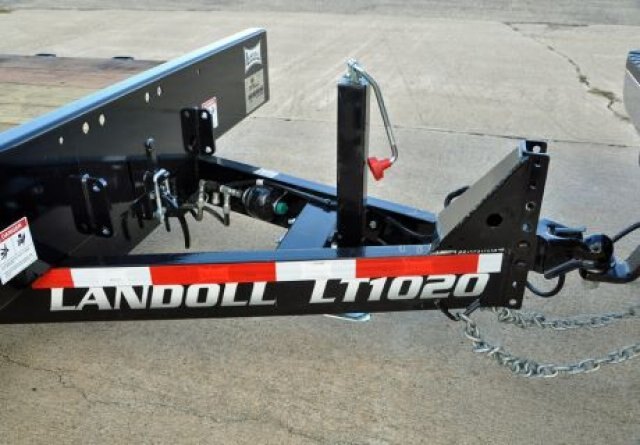

Hitch: Your Choice: 2-5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment--12,000 lb. Capacity
Tool Box: Under Deck
Decking: 2" CA-B Copper Azole Treated Pine
Deck Height (Loaded): 22"
Width 80" Inside Fenders - 102" O.A.
Length: 20' Tilt Deck
Load Angle: 11.4 Degrees

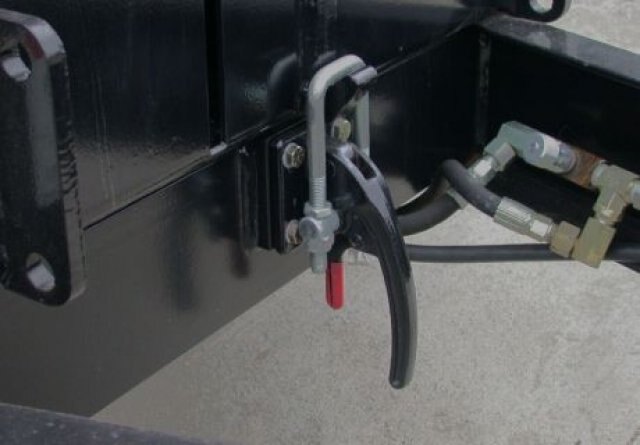

Tilt Cylinder: 2-1/2 x 16 Cushion Cylinder with Tilt Control System
Approach: Full Width Landoll Traction Plate
Lock Down: Positive over Center
Lights: Sealed Beam - Per I.C.C. & Federal Regulations
Electrical: 6 Pole Electric Plug - Wiring in Conduit
Fenders: 14 Gauge - Cold Rolled Formed with Back
Running Boards: 16 Gauge - Cold Roll Formed with Anti-Skid Tape
Tie Rings: 5/8" D-Rings (4)
Stake Pockets: 4 Per Side
Safety Chain: 3/8" x 35" - G70 Chain with GelCel Chargeable Battery and Box
Finish: Your Choice: White, Black or Yellow Non-Fading, Scratch & Chip Resistant "Powder Coat" Paint
