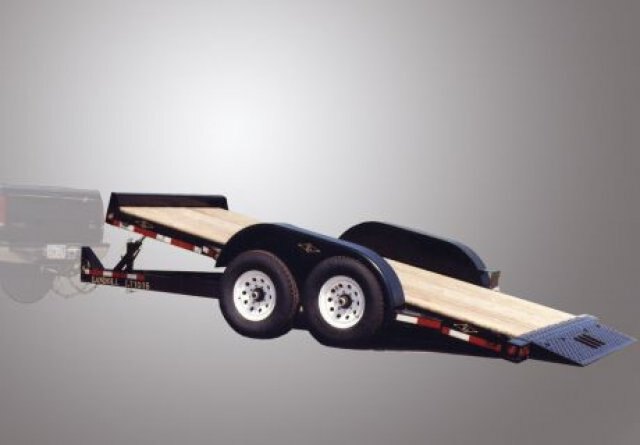

12,000 Tilt Tag with 4' Stationary Deck
The Model LT1216+4 trailer is as 12,000 lb. capacity tilting tag trailer designed to haul light construction and landscaping equipment. The LT 1216+4 features a 16' tilt deck plus a 4' stationary deck for attachments, pallets, or supplies. A cushion cylinder tilts the deck for easy loading and unloading, and a heavy duty bed lockdown secures the bed in transport position. The approach plate is exclusive machined Landoll traction plate with four keyhole tie downs.
|
Features |
- *Load Capacity: 12,000 lbs.
- G.V.W.R. 15,700 lbs.
- Estimated Base Weight: 3,700 lbs.
- Main Frame: 6" Channel
- Crossmembers: 4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
- Jacks: 7,000 Lb. Top Crank Bull Dog
- Tires: 235/80R 16LRE
- Wheels: Steel Wheels - 16.5 x 6.75-8 Bolt
- Axles: 2 - 7,000 Lb. E-Z Lubes
- Suspension: Torflex Axles
- Brakes: 12" x 2" Electric Brakes (Both Axles)

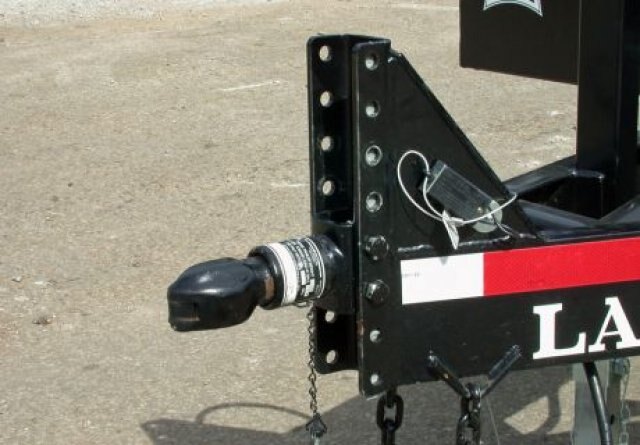

- Hitch: Your Choice: 2-5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment-12,000 lb. Capacity
- Tool Box: Under Deck
- Decking: 2" CA-B Copper Azole Treated Pine
- Deck Height (Loaded): 22"
- Width: 80" Inside Fenders - 102" O.A.
- Length: 16' Tilt Deck + 4' Stationary
- Load Angle: 11.4 Degrees

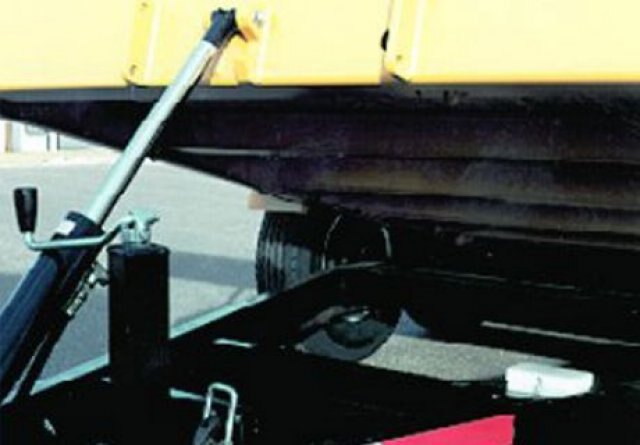

- Tilt Cylinder: 2-1/2 x 16 Cushion Cylinder

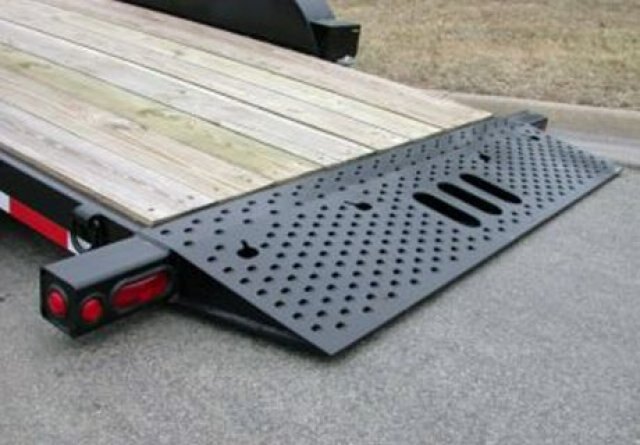

- Approach: Full Width Landoll Traction Plate

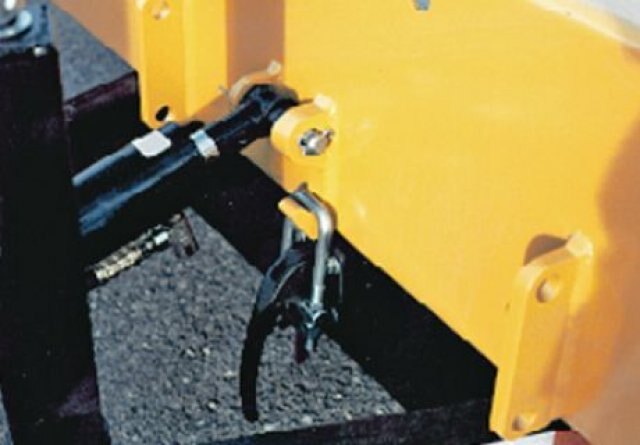

- Lock Down: Positive Over Center
- Lights: Sealed Beam - Per I.C.C. & Federal Regulations
- Electrical: 6 Pole Electric Plug - Wiring in Conduit

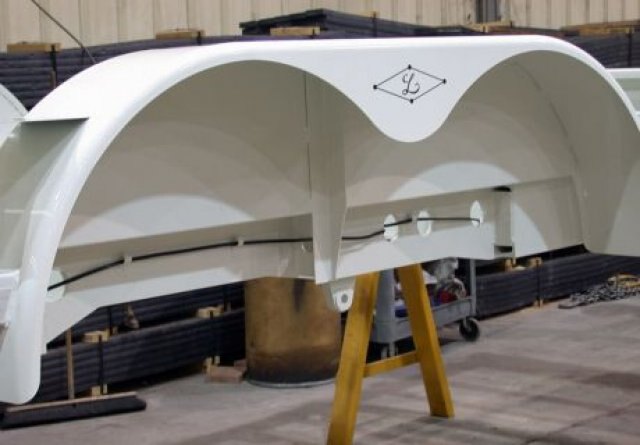

- Fenders: 14 Gauge - Cold Rolled Formed with Back
- Running Boards: 16 Gauge - Cold Roll formed with Anti-Skid Tape
- Tie Rings: 5/8" D-Rings (6)
- Stake Pockets: 4 Per Side

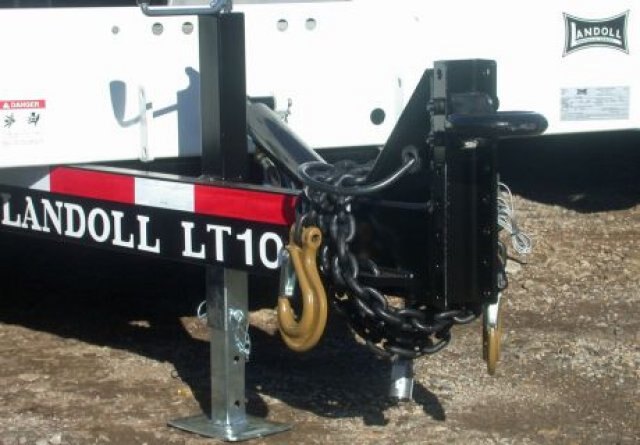

- Safety Chains: 3/8" x 35" G70 Chain with GelCel Chargeable Battery and Box
- Finish: Your Choice: White, Black or Yellow Non-Fading, Scratch & Chip Resistant Powder Coat Paint
- Decals: Hi-Visibility Reflective Package
|
|
Technical Specifications: |
|
|
MODEL |
CAPACITY |
BASE WEIGHT |
DECK |
AXLES |
TIRES & PLY RATING |
| LT1216+4 |
10,000 lbs. |
xxxx |
102" |
2 |
235/80R 16LRE | |
