ID # 13240103

Landoll Utility Tag Model LT1016

  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
  • Landoll Utility Tag Model LT1016
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Landoll_Trailer_UtilityTag_1016_YellowEmpty_270x160.jpg Full 10,000 lb. capacity 16' Tag

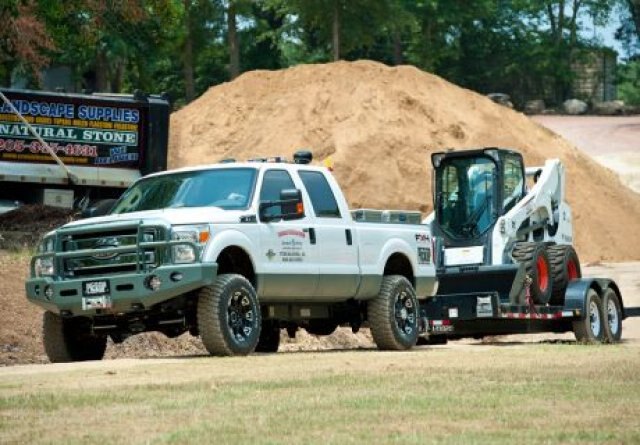

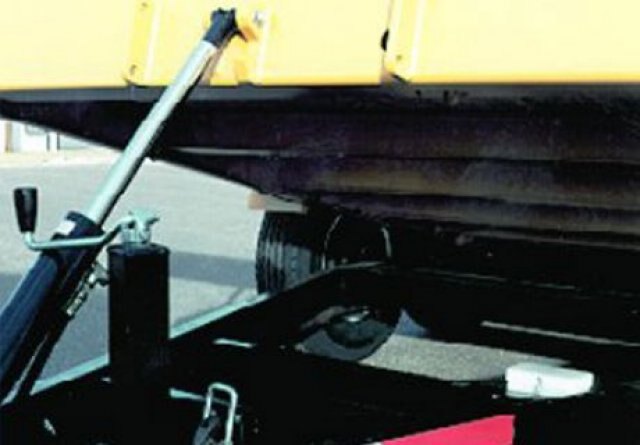

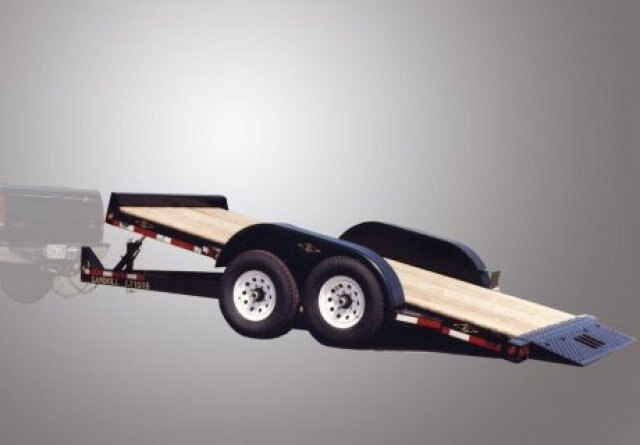

The LT1016 is a 10,000 lb. capacity 16' tilting tag trailer designed to haul light construction and landscaping equipment.  The LT1016 is ideal for rental applications.  A cushion cylinder tilts the deck for easy loading and unloading. GVWR of the LT1016 is 13,150 lbs. Two 6,000 lb. Torflex axles and 235/80R 16 Load Range E tires are standard. Numerous options are available to customize the trailer to your needs.
  Features
  • Estimated Base Weight:  3150 Lbs.
  • *Load Capacity:  10,000 Lbs.
  • Main Frame:  6" Channel
  • Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
  • Jack:  7,000 Lb. Top Crank Bull Dog

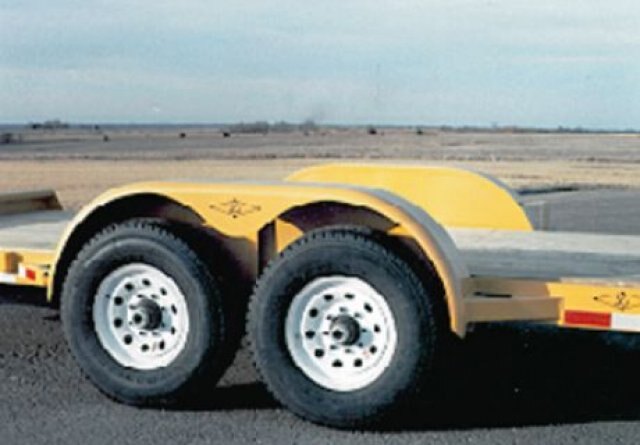

  • Tires:  235/80R 16LR E
  • Wheels:  Steel Wheels - 8 Bolt Pattern
  • Axles:  2-6,000 Lbs. Ez Lubes
  • Suspension:  Torflex Axles
  • Brakes:  12" x 2" Electric Brakes (Both Axles)

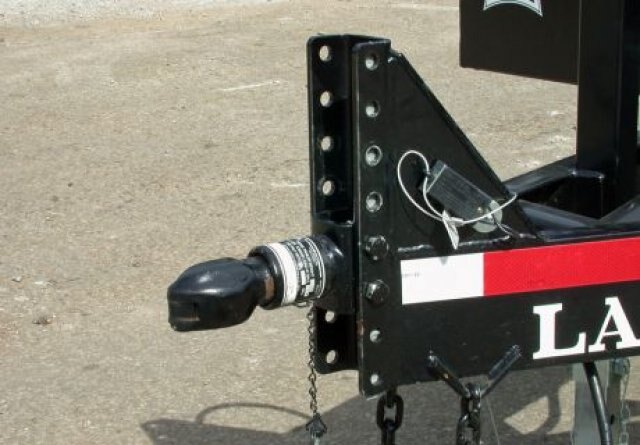

  • Hitch:  Your Choice: 2 5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment--12,000 Capacity
  • Toolbox:  In Hitch
  • Decking:  2" CA-B (Copper Azole) Treated Pine
  • Deck Height (Loaded):  22" Loaded
  • Width:  80" Inside Fenders - 102"O.A.
  • Length:  16' Flat Deck
  • Load Angle:  12.4 Degrees
  • G.V.W.R.  13,150 Lbs.

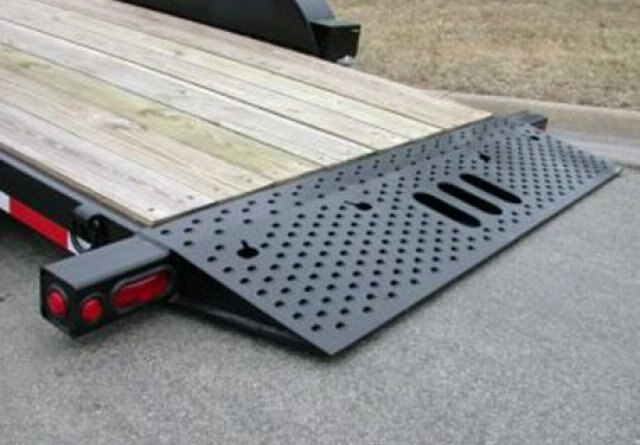

  • Approach:  Full Width Landoll Traction Plate

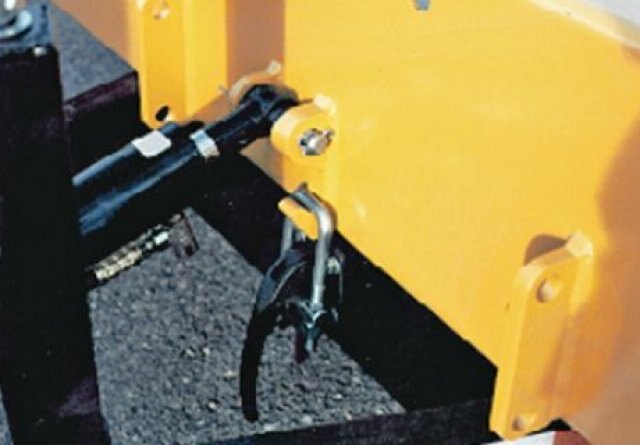

  • Lock Down:  Positive Over Center
  • Lights:  Sealed Beam - Per I.C.C & Federal Regulations
  • Electrical:  6 Pole Electric Plug - Wiring in Conduit

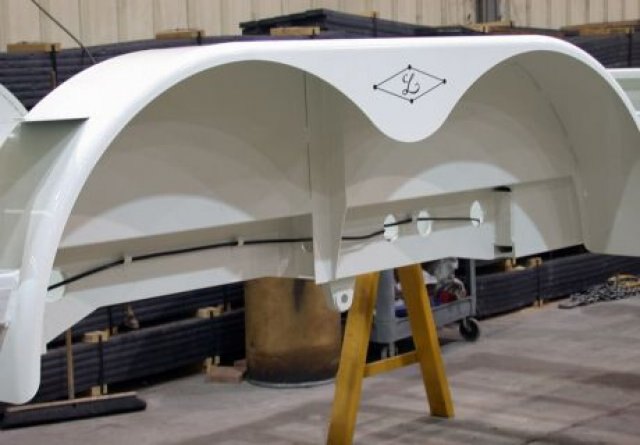

  • Fenders:  14 Gauge Cold Rolled Formed with Back
  • Running Boards:  16 Gauge Cold Roll Formed with Anti-Skid Tape
  • Tie Rings:  5/8" D-Rings (4)
  • Stake Pockets:  2 per Side

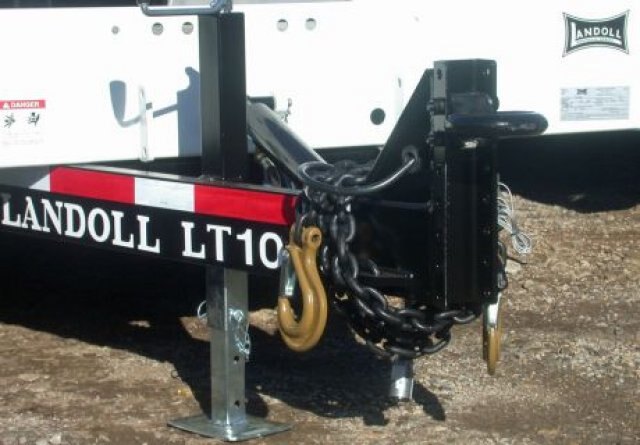

  • Safety Chains:  3/8" x 35" G70 Chain
  • Break-away Kit:  with Gelcel Chargeable Battery and Box
  • Finish:  Your Choice: White, Black or Yellow Non-Fading Scratch & Chip Resistant "Powder Coat" Paint
  • Decals:  Hi-Visibility Reflective Package



   Technical Specifications:



MODEL
CAPACITY
 BASE WEIGHT  DECK AXLES TIRES & PLY RATING
LT1016 10,000 lbs. xxxx 102" 2 235/80R 16LR E



Specifications
Model
Utility Tag Model LT1016
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
