Overview

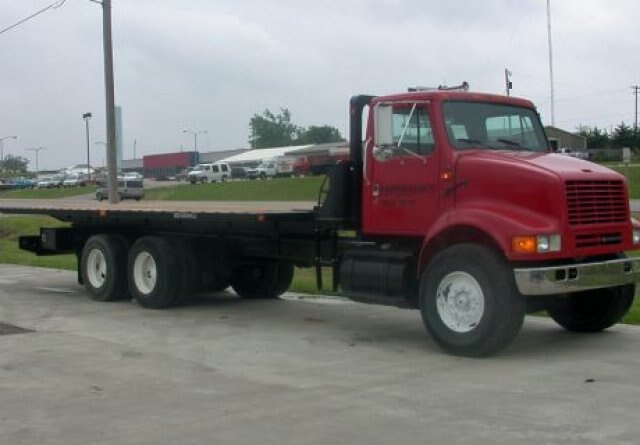

Heavy Duty Carrier 30,000 Lb. Capacity

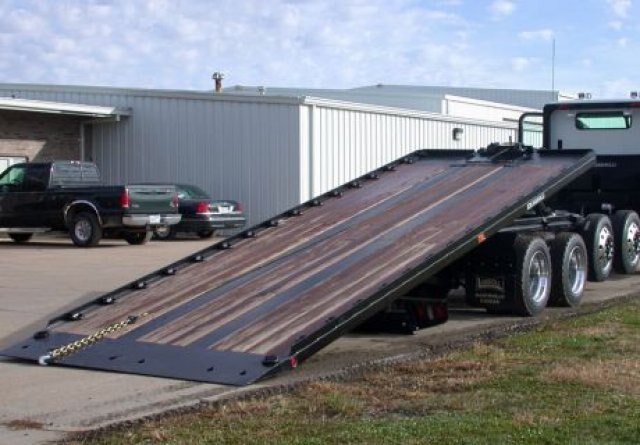

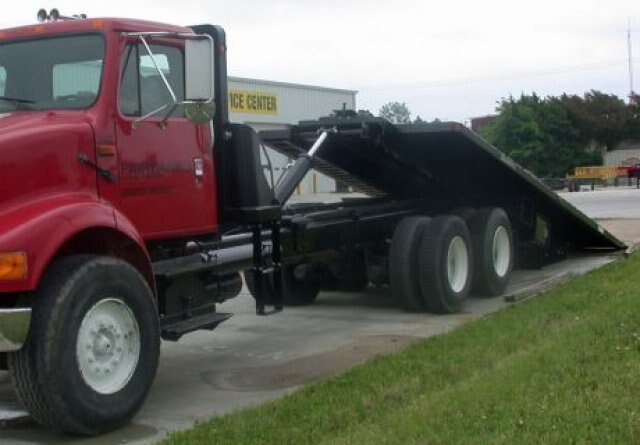

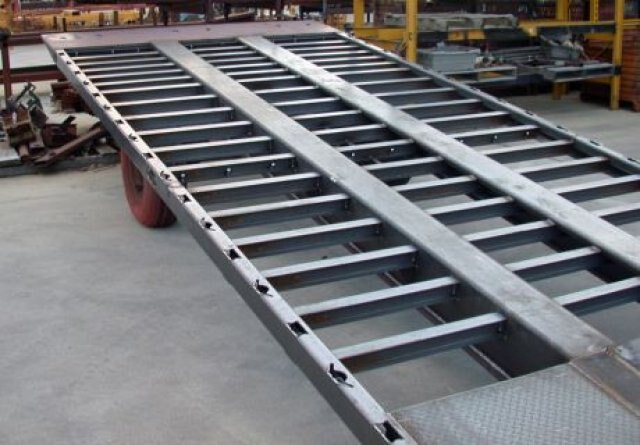

The Landoll Loadoll III HD Rollback is designed to haul tractors, ag equipment and forklifts.   The entire length of the bed is rated at 30,000 lbs. The heavy duty frame is constructed of 3" Jr. I-Beam on 12" centers.  Bed lengths available are 22' to 28'.

Hydraulic System

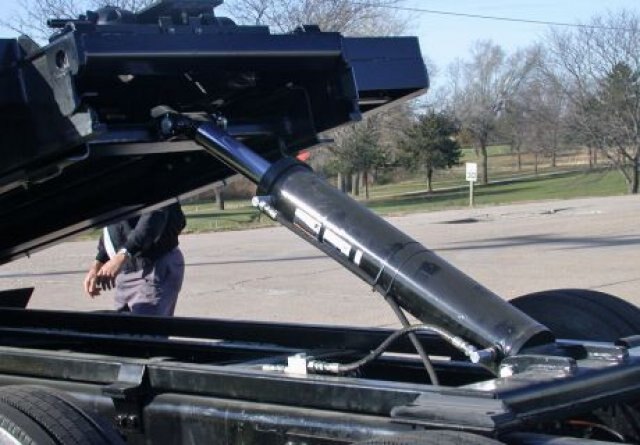

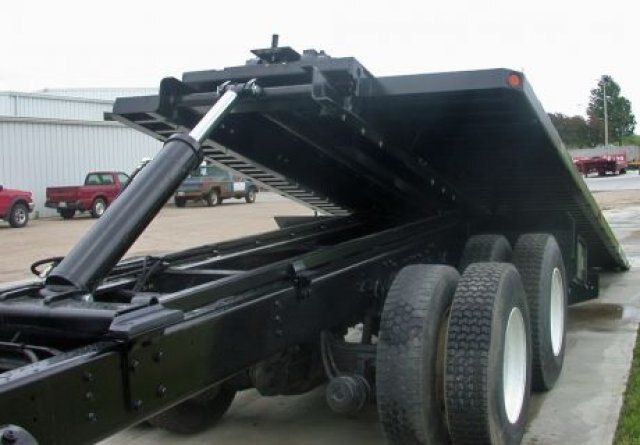

The Loadoll III uses welded hydraulic cylinders with chrome plated rods for long trouble-free service.
  Features
  • *Capacity:  30,000 lb Over Full length of Deck
  • Features:  Deck and Subframe (Powder Coat Black)
  • Features:  Stake Pockets and Double Keyhole (Gotchas) Tie Downs on 12" centers
  • Features:  Recessed Chain Storage Area at Front of Deck
  • Features:  Stabilizer Leg-Independent, Hydraulic
  • Features:  Hydraulic PTO/Pump, Oil Resevior
  • Headboard:  Full Height Frame Mounted Steel Cab Protector
  • Winch:  12,000 lb Hydraulic Worm Gear w/ 85' 1/2" Cable

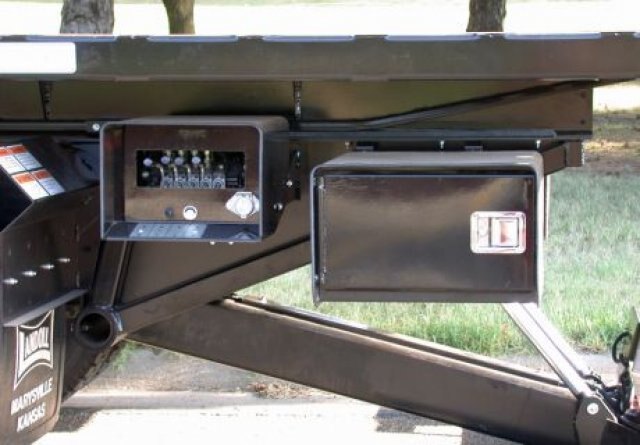

  • Tool Box:  One Tool Box Curbside w/ Paddle Latch and Lock 23"Wide X 15" High X 23" Deep
  • Crossmembers:  3" Jr. I Beam on 12" Centers
  • Decking:  1 3/8" Apitong Wood

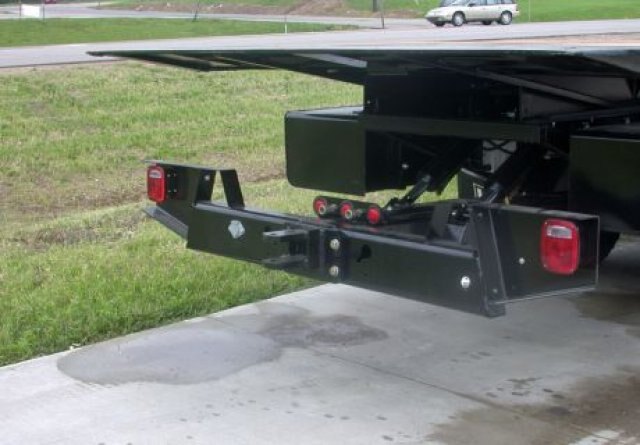

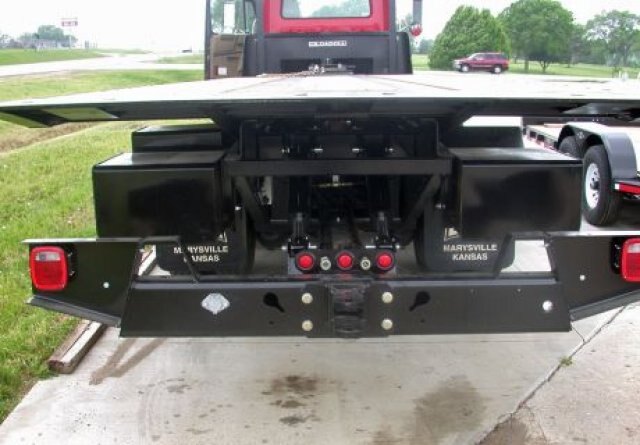

  • Lights:  FMVS Light Group w / Midship Mounted Turn Signal



   Technical Specifications:



MODEL
CAPACITY
 BASE WEIGHT  DECK LENGTH AXLES
HDI30-22 30,000 lbs. 6,900 lbs. +/- 3% (44') 102" 22' CA 138-160 CT118-139
HDI30-24 30,000 lbs. 7,150 lbs. +/- 3% (44') 102" 24' CA 148-182 CT128-161
HDI30-26 30,000 lbs. 7,360 lbs. +/- 3% (44') 102" 26' CA 172-202 CT152-181
HDI30-28 30,000 lbs. 7,520 lbs. +/- 3% (44') 102" 28' CA 194-226 CT174-205



Specifications
Model
Car Carriers Heavy Equipment Carrier
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
