ID # 13240062

Landoll Non-Hydraulic Model 150B

  • Landoll Non Hydraulic Model 150B
  • Landoll Non Hydraulic Model 150B
  • Landoll Non Hydraulic Model 150B
  • Landoll Non Hydraulic Model 150B
  • Landoll Non Hydraulic Model 150B
  • Landoll Non Hydraulic Model 150B
  • Landoll Non Hydraulic Model 150B
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Sturdy Non-Hydraulic Trailer

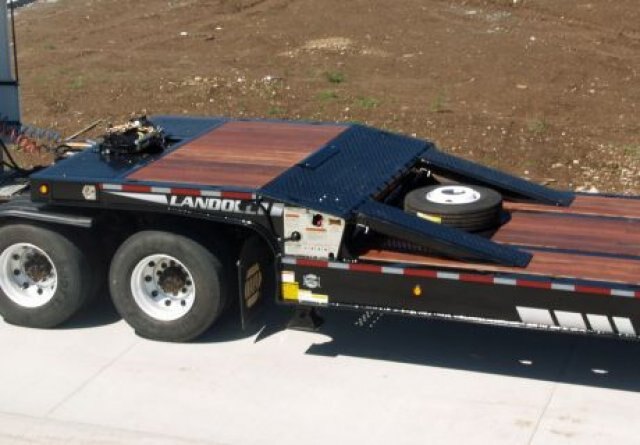

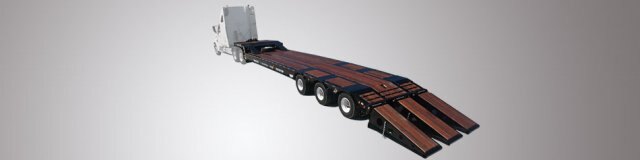

 The Model 150 fixed gooseneck beavertail trailer with triple axle and 50 ton capacity was designed to haul light and heavy construction equipment without hydraulics. The Landoll 150 features a rugged four-beam frame design with a longer beavertail that reduces the loading angle. The beavertail is equipped with self-cleaning adjustable spring assisted flip over ramps.

Many Standard Features



The 150 fixed gooseneck still has many of the other great features that you expect from a Landoll trailer such as Grote SuperNova LED lights, a sturdy 1-3/8" apitong hard wood deck, Grote wiring harness, and hub-piloted steel wheels.  Optional equipment may be easily added such as air-operated upper deck ramp and hydraulic winches for the upper deck.  As with all Landoll trailers, durable powder coat paint is included as well as a zinc-rich powder primer.
  Features
  • *Capacity:  100,000 Lbs.
  • Deck Rating: 70,000 Lbs. In 10 Foot
  • Estimated Base Weight: 14,000 Lbs. (48')
  • Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
  • Crossmembers: 4" Junior I-Beam on 8" Centers
  • Slope Drop: 90 Degree
  • Parking Stands: Jost Two Speed
  • Tires: 235/75R 17.5 LRH Double
  • Coin Rims: 17.5 x 6.75 Tubeless
  • Wheels: Hub Pilot/Steel Outboard Brake Drums
  • Axles: 3-25,000 Lb. Tandem Dual Tire, Oil Bath Bearings

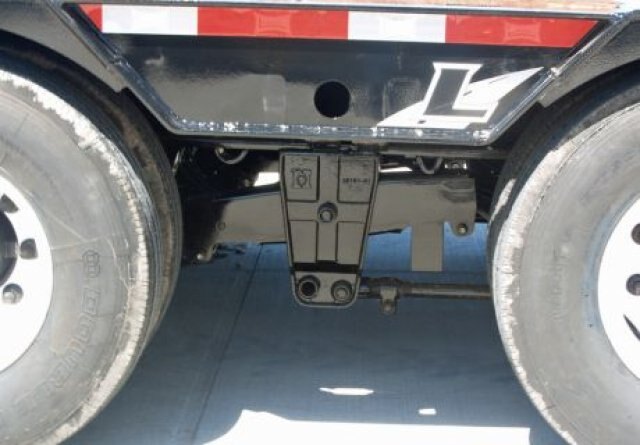

  • Suspension: Multi-Leaf Springs 45,000 Lb. Capacity
  • Brakes:  12.25 x 7.5 Full Air/Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: Fifth Wheel King Pin
  • Pin Setting: 18 Inches
  • Swing Clearance: 86 Inches
  • Loaded Ground Clearance: 20 Inches
  • Loaded Deck Height: 37 1/4 Inches
  • Width: 102"
  • Air/Electrical: 7 Way Receptacle
  • Decking: 1 3/8" Apitong Hardwood
  • Lower Deck Length: 39' 4"
  • Beavertail: 68" Self-Cleaning

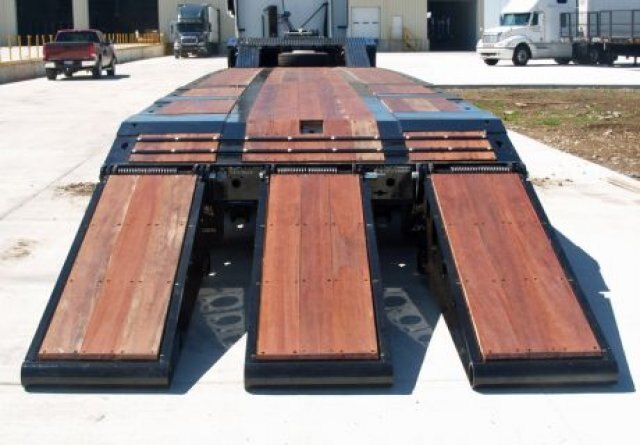

  • Beavertail Ramps: 5' Self-Cleaning Adjustable Spring Assisted Flip-Over
  • Lights: Grote "SuperNova" LED-10 year warranty
  • Finish: Steel Grit Shot Blast to Bright Metal Wiring
  • Harness: Grote "Ultra-Blue Seal"-7 year warranty
  • Powder Coat Color: White/Black/Yellow/Blue/Red/Green
  • Tie Downs: Double Key Hole Chain Slots & Stake Pockets Alternating on 16" Centers
  • Decals: Hi-Visibility Reflective Package
  • Load Angle: 14.5 Degree
  • Features: Automatic Slack Adjusters
  • Storage Area: Upper Deck 23" x 35" x 8" without Lid

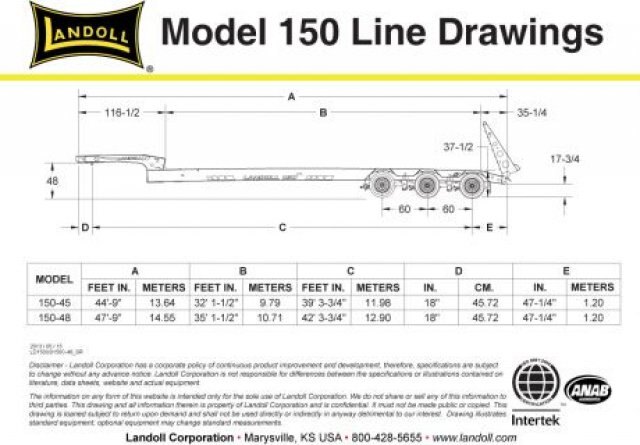

   Technical Specifications:



MODEL
CAPACITY
 BASE WEIGHT  DECK AXLES
TIRES & PLY RATING
150B-45-BT 50 Ton 16,860 lbs. (+/- 3%) 102" 3 (12) 235/75R 17.5 LRH
150B-48-BT 50 Ton 17,290 lbs. (+/- 3%) 102" 3 (12) 235/75R 17.5 LRH



Specifications
Model
Non-Hydraulic Model 150B
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
