ID # 13240061

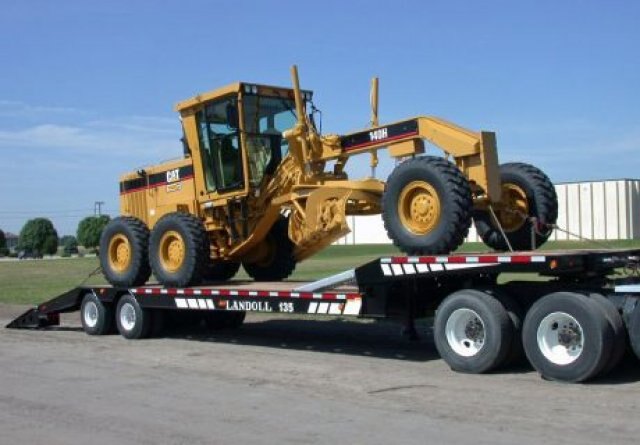

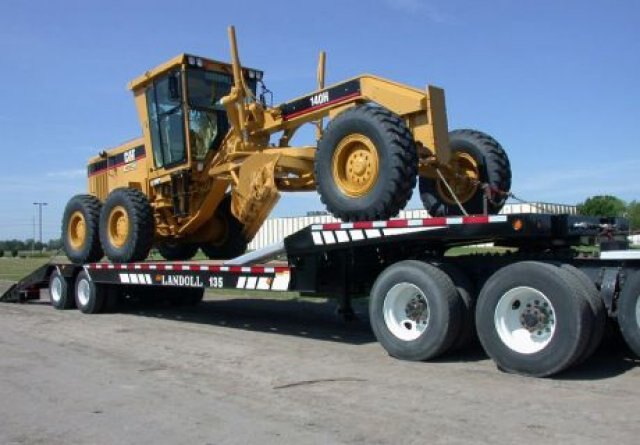

Landoll Non-Hydraulic Model 135B

  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
  • Landoll Non Hydraulic Model 135B
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Sturdy Non-Hydraulic Trailer

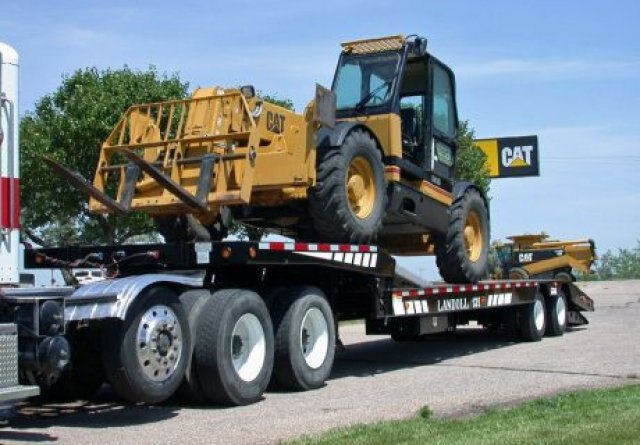

The Model 135 is a fixed gooseneck non-hydraulic beavertail 35-ton capacity trailer for the person that doesn't need or want hydraulics running from their truck.    The rugged four-beam design of the 135 can  haul construction equipment without the need for a hydraulic hookup, thus making the trailer of a lighter overall weight.

Many Standard Features

The 135 fixed gooseneck still has many of the other great features that you expect from a Landoll trailer such as Grote SuperNova LED lights, a sturdy 1-3/8" apitong hard wood deck, Grote wiring harness, and hub-piloted steel wheels.  Optional equipment may be easily added such as air-operated upper deck ramp and hydraulic winches for the upper deck.  As with all Landoll trailers, durable powder coat paint is included as well as a zinc-rich powder primer.
  Features
  • *Capacity: 70,000 Lb.
  • Deck Rating: 50,000 Lbs. In 10 Foot
  • Estimated Base Weight: 12,000 Lbs. (40')
  • Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
  • Crossmembers: 4" Junior I-Beam on 12" Centers
  • Slope Drop: 90 Degree
  • Parking Stands: Jost Two Speed
  • Tire: 235/75R 17.5 LRH Double
  • Coin Rims: 17.5 x 6.75 Tubeless
  • Wheels: Hub Pilot/Steel Outboard Brake Drums
  • Axles: 2- 25,000 Lb Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Multi-Leaf Springs 45,000 Lb. Capacity
  • Brakes: 12.25 x 7.5 Full Air/Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: Fifth Wheel King Pin
  • Pin Setting: 18 Inches
  • Swing Clearance: 86 Inches
  • Loaded Ground Clearance: 20 Inches
  • Loaded Deck Height: 37 1/4 Inches
  • Width: 102 Inches
  • Air/Electrical: 7 Way Receptacle
  • Decking: 1 3/8" Apitong Hardwood
  • Lower Deck Length: 23' 6"

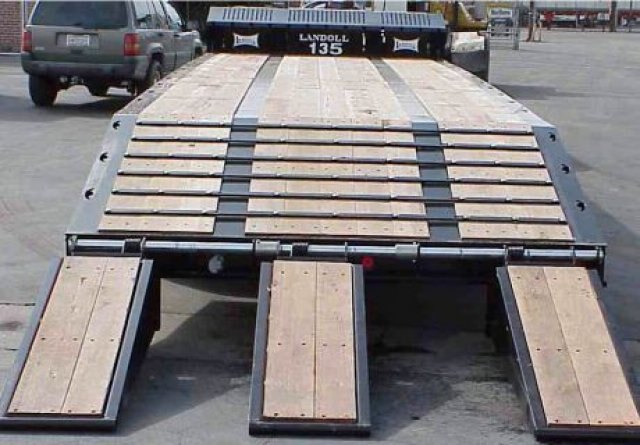

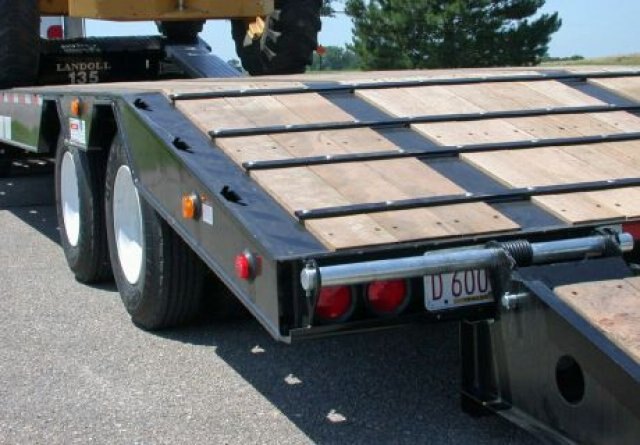

  • Beavertail: 65" Self-Cleaning

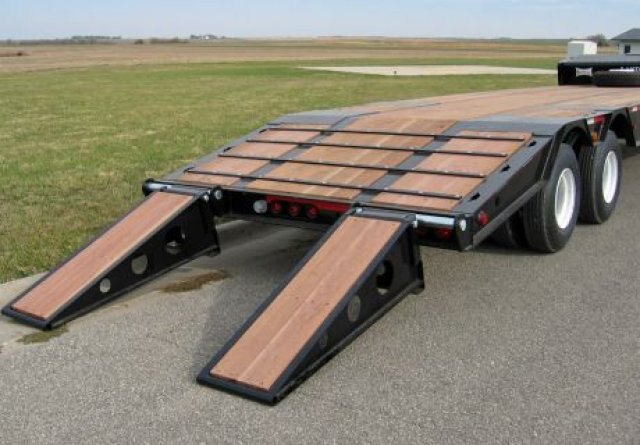

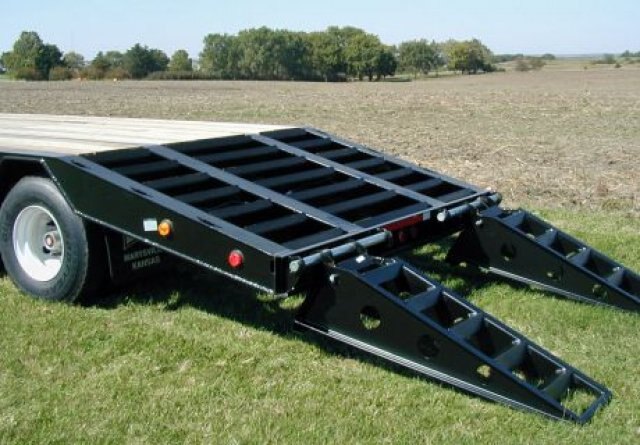

  • Beavertail Ramps: 5' Self-Cleaning Flip Over
  • Lights: Grote "SuperNova" LED-10 year warranty Wiring
  • Harness: Grote "Ultra-Blue Seal"-7 year warranty

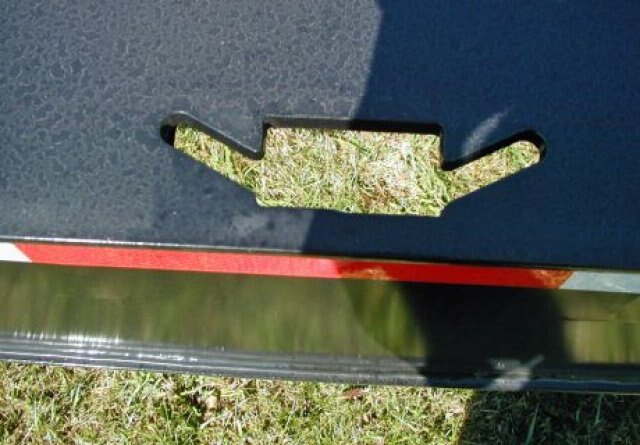

  • Tie Downs: Double Key Hole Chain Slots & Gotcha Pockets Alternating on 24" Centers
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White/Black/Yellow/Blue/Red/Green
  • Decals: Hi-Visibility Reflective Package
  • Load Angle: 14.5 Degrees
  • Features: Automatic Slack Adjusters

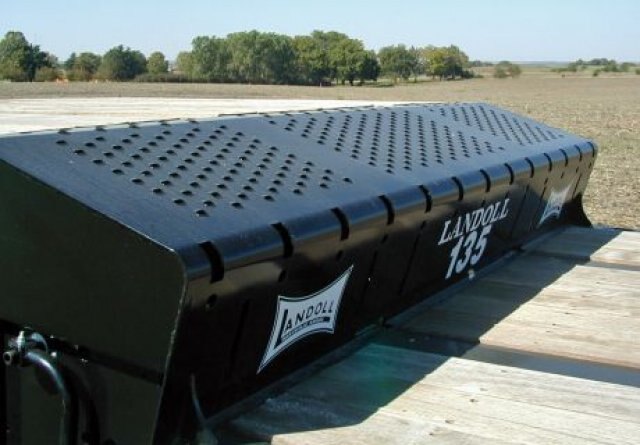

  • Storage Area: Twin Upper Deck Mounted with Lockable Door (7"H x 34"W x 29"D) *Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight rating (GAWR) or state and federal regulations. Maximum Capacity Must be over the Entire Length of Trailer.



   Technical Specifications:



MODEL
CAPACITY
 BASE WEIGHT  DECK AXLES
TIRES & PLY RATING
135B-40-BT 35 Ton N/A 102" 2 (8) 235/75R 17.5 LRH
135B-43-BT 35 Ton 13,450 lbs. (+/- 3%) 102" 2 (8) 235/75R 17.5 LRH
135B-45-BT 35 Ton 13,960 lbs. (+/- %) 102" 2 (8) 235/75R 17.5 LRH
135B-48-BT 35 Ton 15,080 lbs. (+/- 3%) 102" 2 (8) 235/75R 17.5 LRH



Specifications
Model
Non-Hydraulic Model 135B
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
