Minimize Weight - Maximize Payload

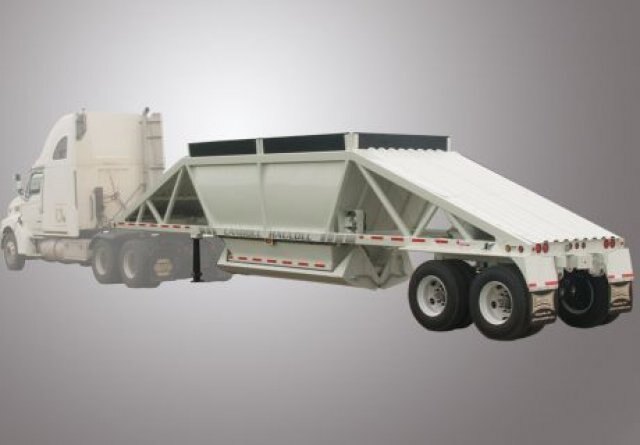

With an empty weight of just 11,350 lbs. and a load capacity of up to 24 tons, the 302D Ultralite bottom dumps are a profitable investment.  A rounded barrel-shape hopper design providing inherent strength eliminates the need for all but one stiffener making for a lighter weight trailer.  The 21 cubic yard hopper capacity can be increased to 24 cubic yards with the additional sideboards and brackets.

Unique Gates

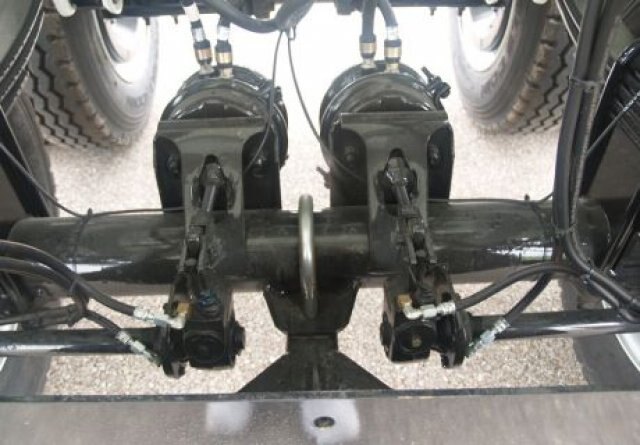

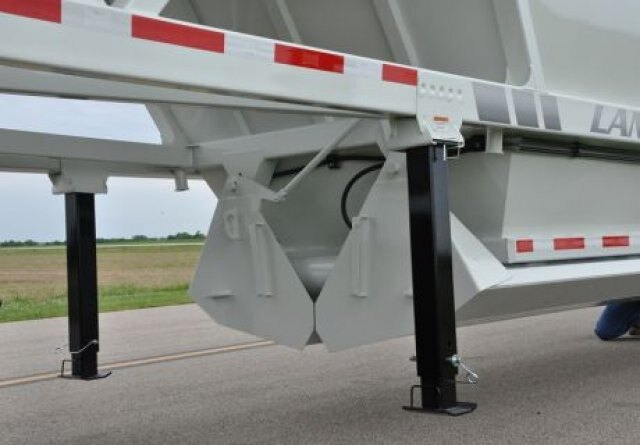

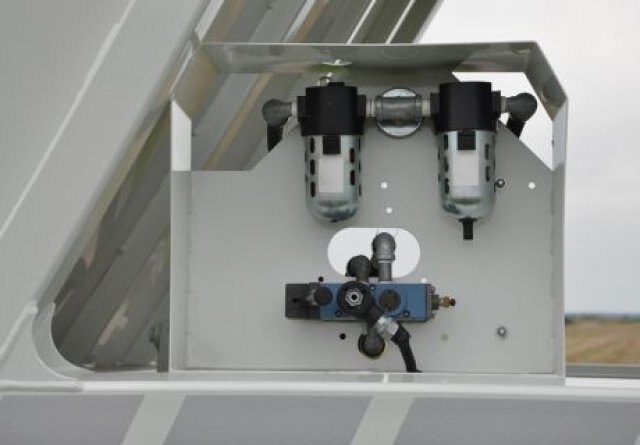

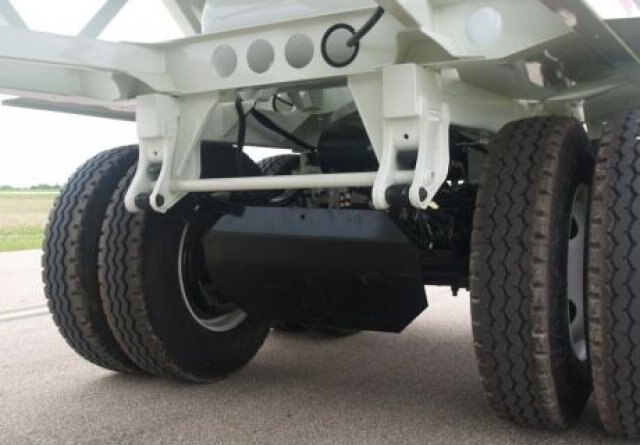

All 302D trailers are equipped with air-operated double clamshell windrow gates.  With high-speed 7" cylinders these unique gates open faster, easier and with less outward tub-wall pressure than conventional flat-bottom gates.  Rocking king pin bolsters that absorb and spread out load torque.  Spring suspension is standard but an optional neway air ride suspension is available.
