ID # 13239970

Landoll Traveling Tail Model Model 950C

  • Landoll Traveling Tail Model Model 950C
  • Landoll Traveling Tail Model Model 950C
  • Landoll Traveling Tail Model Model 950C
  • Landoll Traveling Tail Model Model 950C
  • Landoll Traveling Tail Model Model 950C
  • Landoll Traveling Tail Model Model 950C
  • Landoll Traveling Tail Model Model 950C
  • Landoll Traveling Tail Model Model 950C
  • Landoll Traveling Tail Model Model 950C
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

950 Traveling Tail Landoll_Trailer_TravelingTail_Aug2010_270x160.jpg



The 950 Traveling Tail is part of the 900 Series.  The 950 is 50-Ton capacity and has three 25,000# axles .    The 950 offers tail lengths of 12' or 15' tails and 45', 48' and 51' overall lengths.   The 950 offers the same rugged four beam construction and other outstanding features of the 900 Series -  standard powder coat paint, stable rigid dock arm, tail-lifting capacity of 24,000 lbs. and centralized grease system.  Landoll is the only trailer manufacturer to offer powder coat paint on large trailer frames.

WHY OWN A 900 SERIES

Quick, simple, safe operation and a longer wheelbase that increases payload.  A 15' tail reduces the load angle to a low 11°.  Frames are steel shot blasted in preparation for the TGIC polyester powder coat paint finish standard on 900 Series trailer.  The tail can raise and lift 24,000 lbs up to 57" dock height. The 900 Series is backed by a 5-year structural warranty.
  Features
  • *Capacity: 100,000 lbs.
  • Deck Rating: 70,000 lbs. in 10'
  • Estimated Base Weight: 19,890 lbs. (51')
  • Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
  • Crossmembers: 4" Junior I-Beam on 8" Centers
  • Slope Drop: 90°
  • Parking Stands: Jost Two-Speed
  • Tires: 235/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.75 Tubeless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 3 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity with Manual Dump Valve
  • Brakes: 12.25x7.5 Full Air / Spring Brakes 4S2M (Two Rear Axles) ABS Center Axle Indirect
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: Fifth-Wheel Kingpin
  • Pin Setting: 18"
  • Swing Clearance: 86"
  • Loaded Ground Clearance: 20"
  • Loaded Deck Height: 38"
  • Width 102"
  • Decking: 1-3/8" Apitong Hardwood
  • Air / Electrical: 7-Way Receptacle
  • Tool Box: Twin Upper Deck Mounted with Lockable Door (7"H x 34"H x 29"D)
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package
  • Tie Downs: Double Key Hole Chain Slots on 16" Centers / 6 Double Key-Hole Chain Slots on Tail
  • Tail Lifting Capacity: 24,000 lb.
  • Hydraulic Winch: Upper Deck Worm Gear 12,000 lb. with 85' of 1/2" Cable with Wear Plate
  • Load Angle: 11° with 15' Tail
  • Undercarriage: Centralized Grease System
  • Features: Automatic Slack Adjusters, Flat Approach Plate, Apitong Wood Covered Tail
  • Hydraulic Valve Body: Prince Electronic

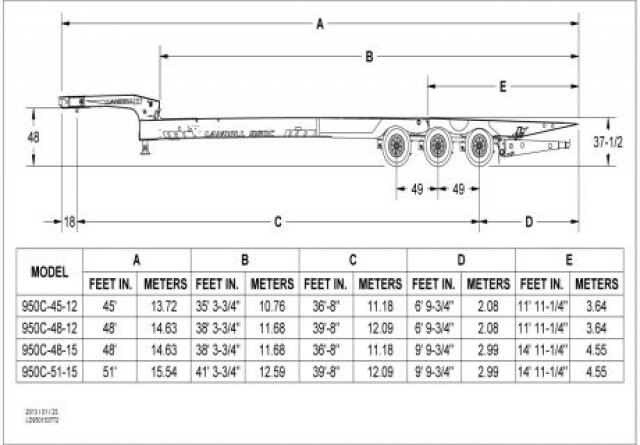

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
950C-45-12
35 Ton
N/A
 102" 3 (12) 235/75R 17.5 LRH
950C-48-12 50 Ton 20,695 lbs. (+/- 3%) 102" 3 (12) 235/75R 17.5 LRH
950C-48-15 50 Ton N/A 102" 3 (12) 235/75R 17.5 LRH
950C-51-15 50 Ton 21,750 lbs. (+/- 3%) 102" 3 (12) 235/75R 17.5 LRH



Specifications
Model
Traveling Tail Model Model 950C
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
