ID # 13239967

Landoll Traveling Tail Model Model 930C

  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
  • Landoll Traveling Tail Model Model 930C
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

930 - Maximize Payload and Profitability Landoll_Trailer_TravelingTail_TailLiftBendi_270x160.jpg

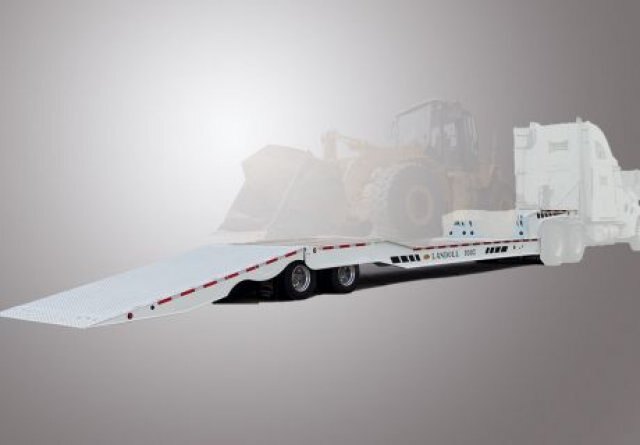

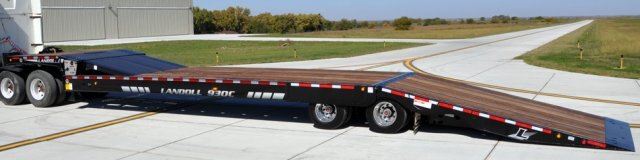

The Landoll 930 Traveling Tail is part of the 900 Series trailers.  The tail is capable of lifting 24,000# up to 53" dock height.  Maximize your loads by utilizing the entire deck and maximize your payload by having the undercarriage five feet behind the main hinge. The longer wheelbase gives you proper weight distribution between tractor and trailer and fully supports the tail.

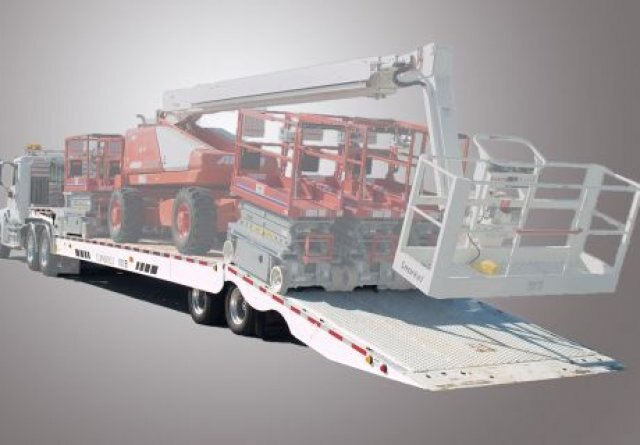

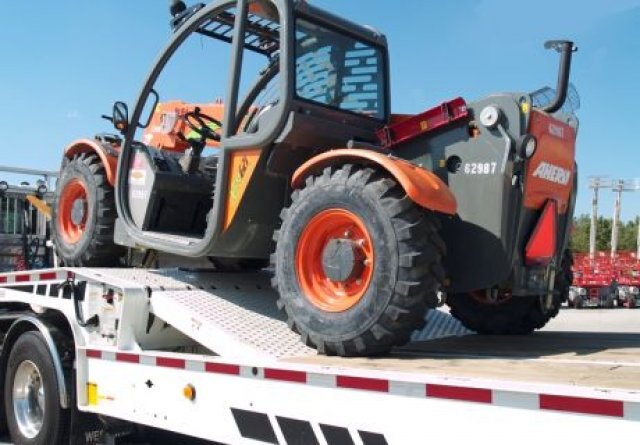

The traveling tail concept allows for stable dock loading and increases your payload by having a longer wheel base.
  Features
  • *Capacity:  70,000 lbs.
  • Deck Rating: 50,000 lbs. in 10'
  • Estimated Base Weight: 16,300 lbs. (48')
  • Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
  • Crossmembers: 4" Junior I-Beam on 8" Centers
  • Slope Drop: 90°
  • Parking Stands: Jost Two-Speed
  • Tires: 235/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.75 Tubeless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity with Manual Dump Valve
  • Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: Fifth-Wheel Kingpin
  • Pin Setting: 18"
  • Swing Clearance: 86"
  • Loaded Ground Clearance; 20"
  • Loaded Deck Height: 38"
  • Width: 102"

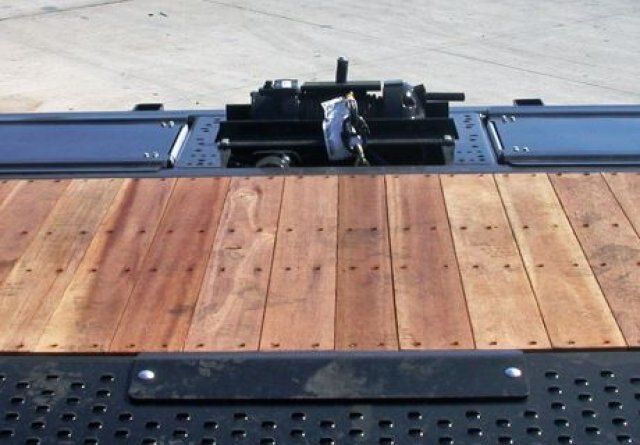

  • Decking: 1-3/8" Apitong Hardwood
  • Air / Electrical: 7-Way Receptacle
  • Tool Box: Twin Upper Deck Mounted with Lockable Door (7"H x 34"W x 29"D)
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package

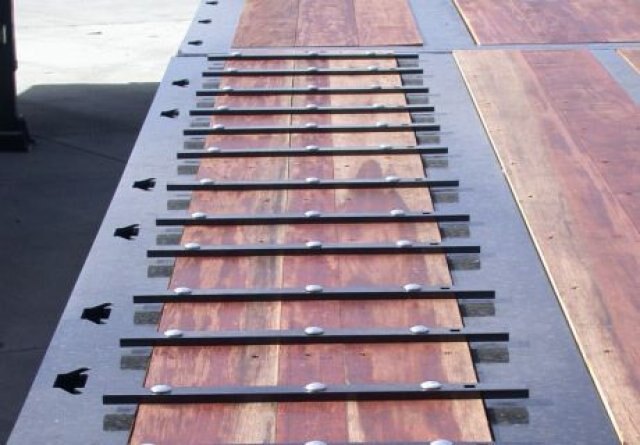

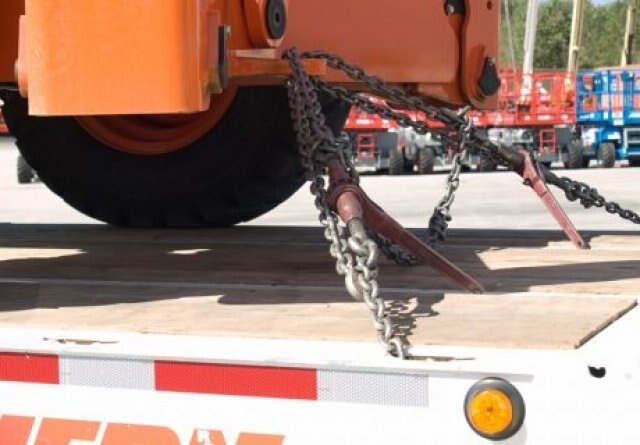

  • Tie Downs: Double Key Hole Chain Slots Gotchas with Square Stake Pockets on 24" Centers
  • Tail Lifting Capacity: 24,000 lb.
  • Hydraulic Winch: Upper Deck 12,000 lb. Worm Gear with 85' of 1/2" Cable with Wear Plate
  • Undercarriage: Centralized Grease System
  • Load Angle: 11° with 15' Tail
  • Features: Automatic Slack Adjusters, Flat Approach Plate, Apitong Wood Covered Tail

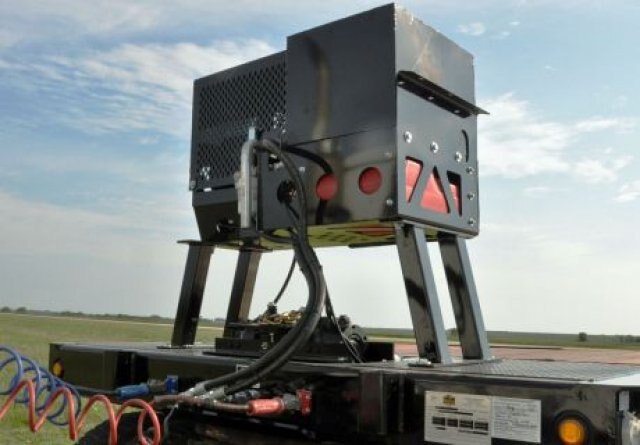

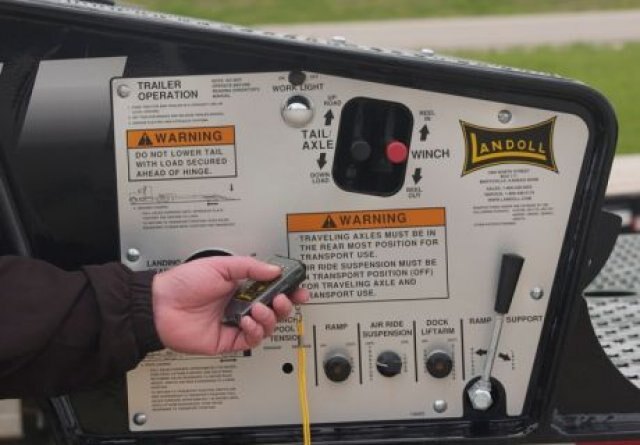

  • Hydraulic Valve Body: Prince Electronic

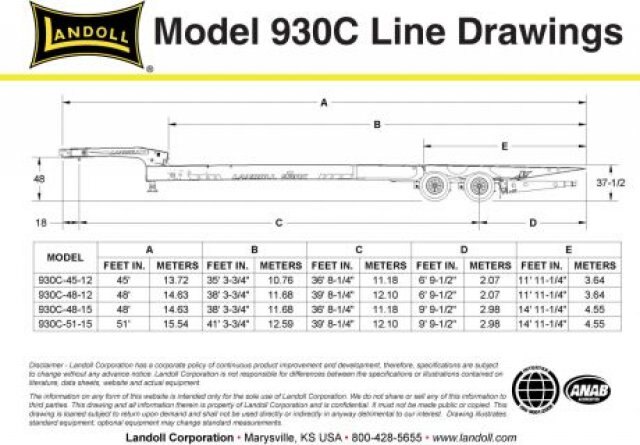

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
930C-45-12
35 Ton
17,265 lbs. (+/- 3%)
 102" 2 (8) 235/75R 17.5 LRH
930C-48-12 35 Ton 17,660 lbs. (+/- 3%) 102" 2 (8) 235/75R 17.5 LRH
930C-48-15 35 Ton 18,770 lbs. (+/- 3%) 102" 2 (8) 235/75R 17.5 LRH
930C-51-15 35 Ton 19,250 lbs. (+/- 3%) 102" 2 (8) 235/75R 17.5 LRH



Specifications
Model
Traveling Tail Model Model 930C
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
