ID # 13239963

Landoll Detachable Model 855C-CONSTRUCTION

  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
  • Landoll Detachable Model 855C CONSTRUCTION
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

versatility plus many standard features

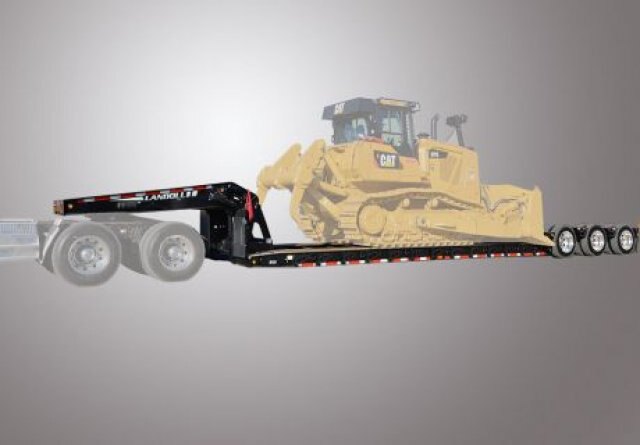

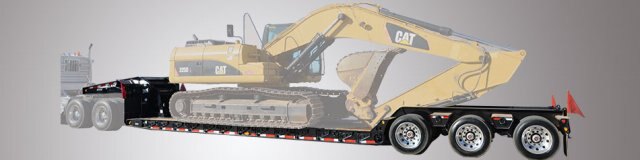

The Landoll 800 Series’ versatility originates in its primary standard features. The new innovative 4-beam frame features a flat deck with a loaded height of 19 1/2". The 855C is availble as a 3-axle trailer or as a 3-axle with optional flip 4th-axle.  The 855C has a concentraded load capacity of 110,000 lbs. within 12'.

Patented gooseneck design - flexibility

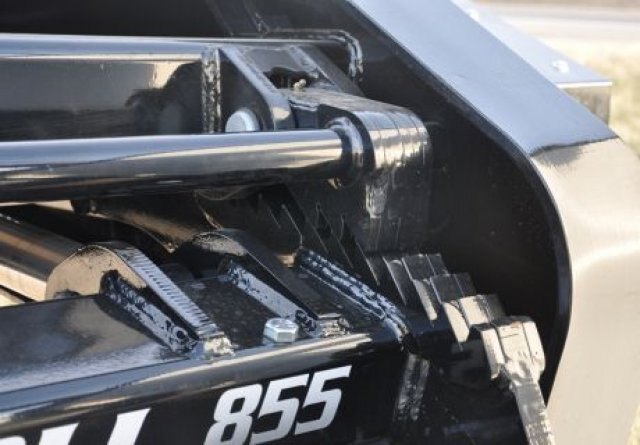

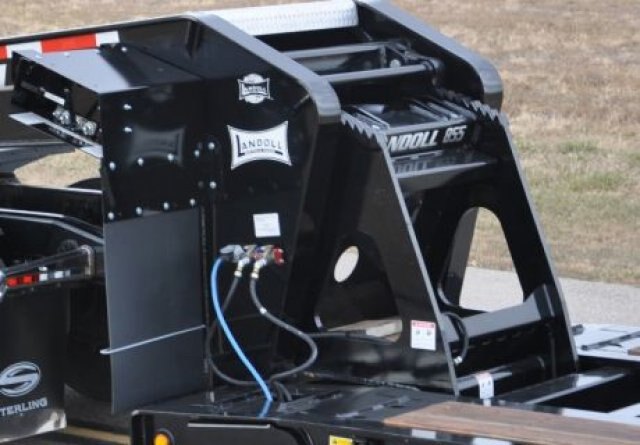

The gooseneck is a Landoll patent that gives the operator the control at his fingertips. Two kingpin settings, with swing clearance of 108" and 90", allowing three or four axle tractors to maximize their weight distribution. The 7-position ride height gives needed ground clearance and lowers the deck height to carry extremely high loads. No other gooseneck offers such flexibility as the Landoll 800C Series.

complete package



The 800 Construction Series is the complete package. Maximum lower deck length allows you to position your loads and scale legally. For heavy loads, the base trailer comes standard with flip axle brackets and air/electrical couplers. To move a permit load with ease, an optional flip axle can be added. The 800C Series is work ready with a flattened front approach, apitong wood in track area, a recessed storage compartment and swing-out overwidth extensions. The front, double outrigger is for added strength at the break over. There are traction bars on the approach and on the front half bolster for added traction.
  Features
  • *Capacity: 55 Ton
  • Deck Rating: 110,000 lbs. in 12'
  • Estimated Base Weight: 23,900 lbs. (53')
  • Main Frame: Fabricated 13" Beam, 100,000 PSI Flange
  • Crossmembers: 8" High Tensile I-Beams on 24" Centers
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5x8.25
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles:  3 - 25,000 lb. Dual Tire, Oil Bath Bearings 54" Spacing on 53', 50" Spacing on 48', Auto-Slacks all Axles
  • Suspension: Neway Air Ride 25,000 lb. Capacity with Mechanical Ride-Height Control Valve
  • Brakes: 16.5x7 Full Air with Spring Brakes on Three Axles, ABS 4S/2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: Dual Pins 15" and 33"
  • Swing Clearance: Dual Swing, 108" and 90"
  • Loaded Ground Clearance: 6.5"
  • Loaded Deck Height: 19.5"
  • Width: 102"
  • Decking: Full 2" Apitong Track Area
  • Gooseneck: 12'5" Dual Drop-In Kingpin Settings, with 7-Position Fifth-Wheel Ride Height (10'9" Gooseneck Standard on 855-48CA)
  • Air / Electrical: Glad Hand / 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 17GPM

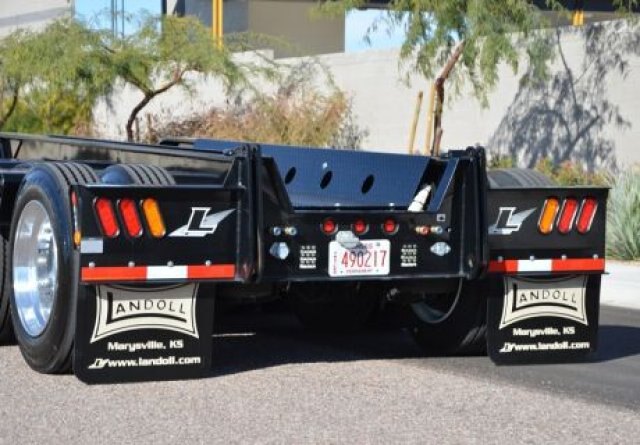

  • Lights: Grote "SuperNova" LED - 10-Year Warranty, Grote "Ultra Blue Seal" Harness 7-Year Warranty
  • Finish: 400° Bake / Steel Grit Shot Blast to Bright Metal
  • Color: Zinc Rich Powder Primer Base
  • Powder Paint Color Choices: White / Black / Yellow / Blue / Red / Green
  • Tie Downs: 24 Total, All Angled "D" Rings, 7 Each Side Lower Deck, 1 on the End of Each Bolster, 2 at Rear of Lower Deck, 2 at the Top of Rear Slope, 2 at Rear of Trunnion
  • Storage Area: 1 - Between Main Frame at Front of Lower Deck, 41"W x 24"L x 10"D
  • Cylinders: Main Gooseneck Cylinders Horizontally Mounted

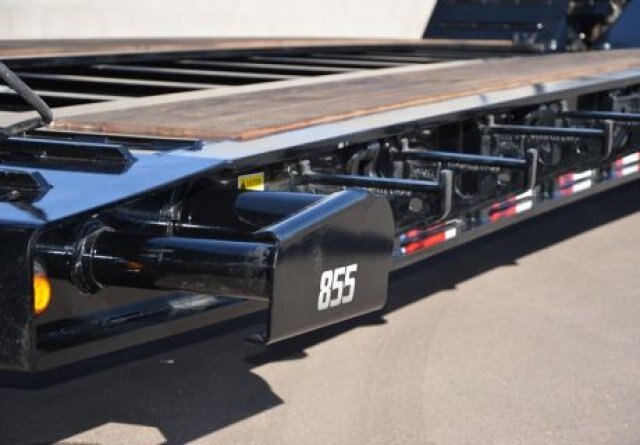

  • Accessories: 4th Axle Ready, 12" Swing-Out Outriggers; HD Sloped Front Approach with Traction Bars, 6' Recessed Bucket Trough at Rear of Lower Deck, Open Boom Trough with "V" Type Bumper

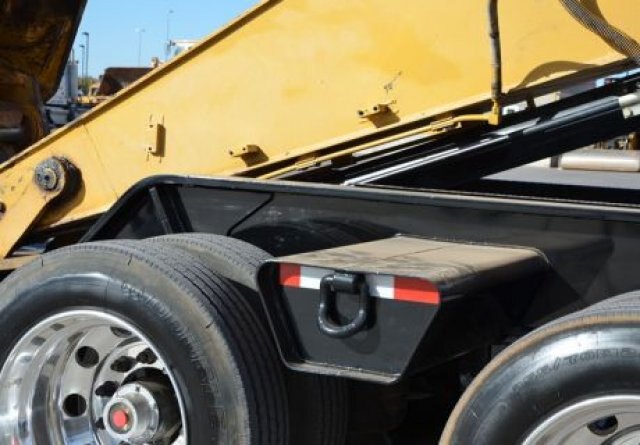

  • Bolsters: Half Front Bolster with Traction Bars, Lowered Bolster Between Tires (20,000 lb. Capacity); Rear Bolster (17,500 lb. Capacity)



   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
855C-48CA
55 Ton
22,950 lbs.
 22'5" 3 (12) 255/70R 22.5 LRH
855C-53 55 Ton 23,900 lbs. 26' 2 (12) 255/70R 22.5 LRH



Specifications
Model
Detachable Model 855C-CONSTRUCTION
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
