ID # 13239962

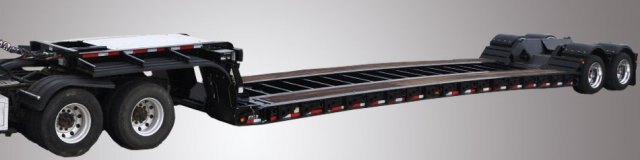

Landoll Detachable Model 835D-CONSTRUCTION

  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
  • Landoll Detachable Model 835D CONSTRUCTION
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

versatility plus many standard features



The Landoll 800 Construction Series’ versatility originates in its primary standard features. The new innovative 4-beam frame features a flat deck with a loaded height of 18". The 835C is a 2-axle, 70,000 lb. capacity with a 12’ concentrated deck rating. The 835 two axle frame is third flip axle ready.

Patented gooseneck design - flexibility

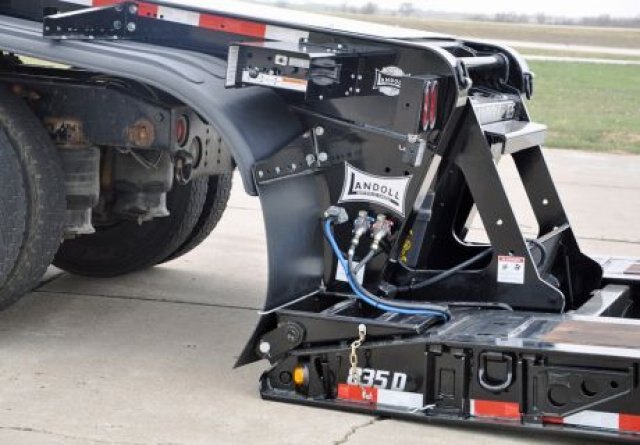

The gooseneck is a Landoll patent that gives the operator the control at his fingertips. Swing clearance is 84", with a pin setting of 15".   The 7-position ride height on the 11'9" gooseneck gives needed ground clearance and lowers the deck height to carry extremely high loads. No other gooseneck offers such flexibility as the Landoll 800C Series.

complete package

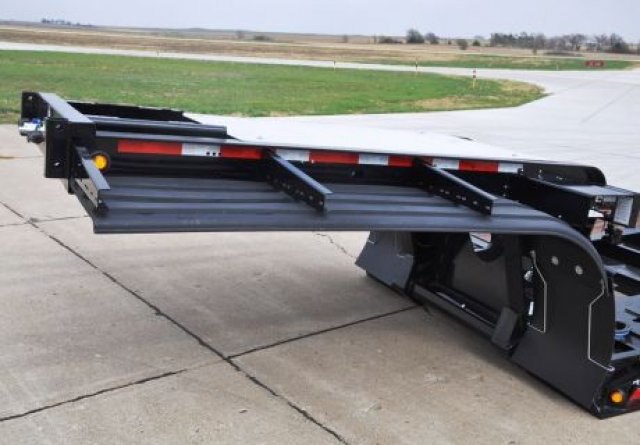

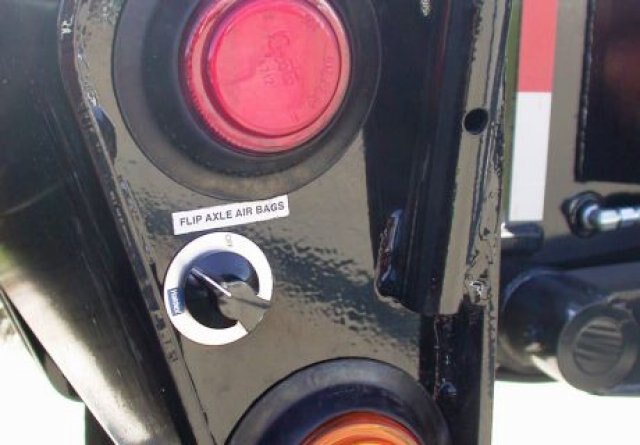

The 800 Construction Series is the complete package. Maximum lower deck length allows you to position your loads and scale legally. For heavy loads, the base trailer comes standard with flip axle brackets and air/electrical couplers. To move a permit load with ease, an optional flip axle can be added. The 800C Series is work ready with a flattened front approach, apitong wood in track area, a recessed storage compartment and swing-out overwidth extensions. The front, double outrigger is for added strength at the break over. There are traction bars on the approach and on the front half bolster for added traction.
  Features
  • *Capacity: 35 Ton
  • Deck Rating: 70,000 lbs. in 12'
  • Estimated Base Weight: 18,495 lbs. +/- 3%
  • Main Frame: Fabricated 11-3/8" Beam, 100,000 PSI Flange
  • Crossmembers: 6" High Tensile I-Beams on 21-3/8" Centers
  • Tires: 255/70R 22.5 Double Coin LRH
  • Rims: 22.5x7.50
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings 50" Spacing

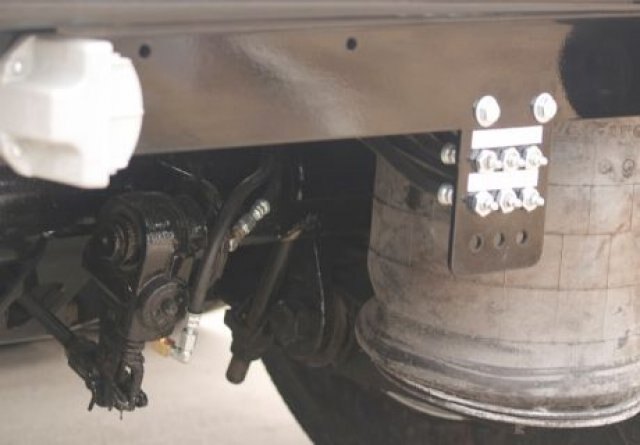

  • Suspension: Neway Air Ride 25,000 lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 15"
  • Swing Clearance: 84"
  • Loaded Ground Clearance: 6.5"
  • Loaded Deck Height: 18"
  • Width: 102"
  • Decking: 2" Nominal, Apitong Track Area
  • Gooseneck: 11'9" with 7-Position Fifth Wheel Ride Height
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 17 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty, Grote "Ultra Blue Seal" Harness 7-Year Warranty
  • Finish: 400° Bake / Steel Grit Shot Blast to Bright Metal
  • Color: Zinc Rich Powder Primer Base, Powder Paint Color Choices: White / Black / Yellow / Blue / Red / Green
  • Tie Downs: 22 Total, All Angled "D" Rings, 7 Each Side Lower Deck, 1- On the End of Each Bolster, 2 - At Rear of Lower Deck, 2- At the Top of Rear Slope, 2 - At Rear of Trunnion
  • Storage Area: 1 - Between Main Frame at Front of Lower Deck (41"W x 21"L x 7"D) 1 - At Rear of Lower Deck (32"W x 14"L x 7"D)
  • Cylinders: Main Gooseneck Cylinders Horizontally Mounted

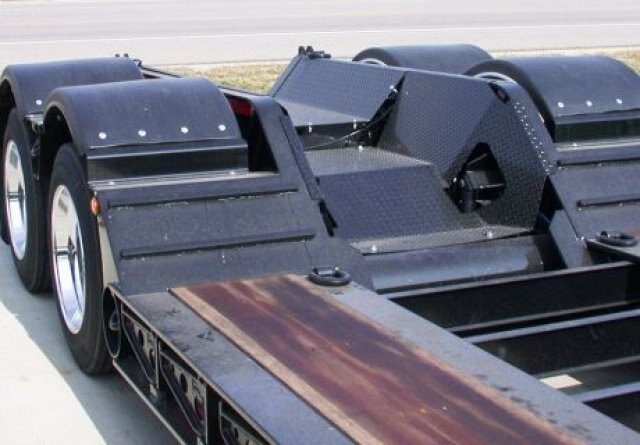

  • Accessories: 3rd Axle Ready, 12" Swing-Out Outriggers, Half Front Bolster with Traction Bars, Lowered Bolster Between Tires, HD Sloped Front Approach with Traction Bars, Open Boom Trough with "V" Type Bumper
  • Accessories: One Pair Flag Holders, Central Grease System all Axles



   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
835D-45C
35 Ton
N/A +/- 3%
 25'4" 2 (8) 255/70R 22.5 LRH
835D-48C 35 Ton N/A +/- 3% 26'8" 2 (8) 255/70R 22.5 LRH
835D-51C 35 Ton 17,740 lbs. +/- 3% 29'8" 2 (8) 255/70R 22.5 LRH
835D-53C 35 Ton 19,500 lbs. +/- 3% 31'8" 2 (8) 255/70R 22.5 LRH



Specifications
Model
Detachable Model 835D-CONSTRUCTION
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
